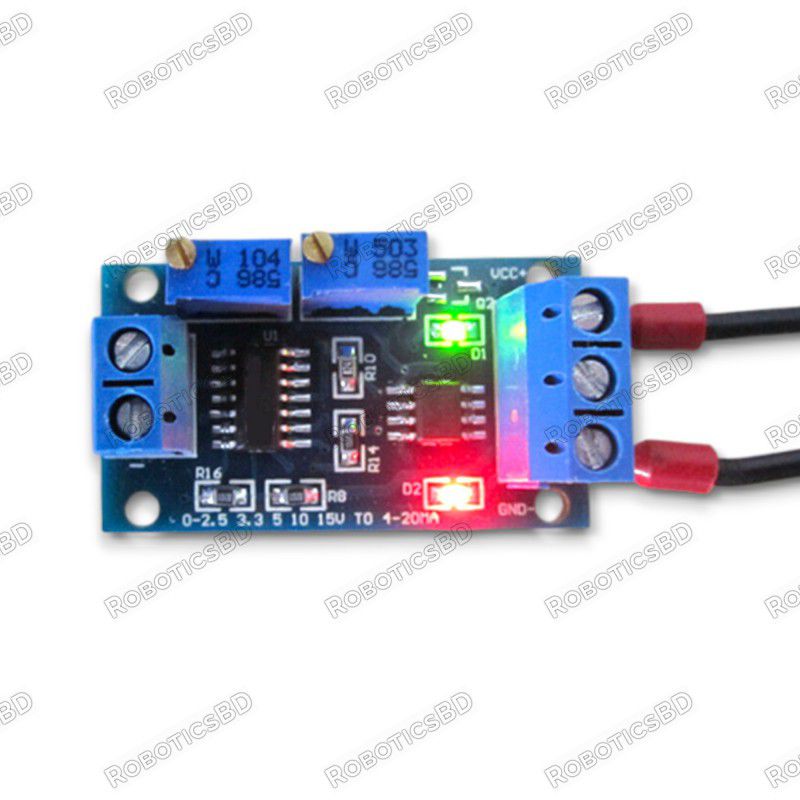

Voltage To Current Module 0-5V to 4-20MA Conversion Sensor Module Robotics Bangladesh
  • Voltage To Current Module 0-5V to 4-20MA Conversion Sensor Module Robotics Bangladesh
  • Voltage To Current Module 0-5V to 4-20MA Conversion Sensor Module Robotics Bangladesh
  • Voltage To Current Module 0-5V to 4-20MA Conversion Sensor Module Robotics Bangladesh

Voltage To Current Module 0-5V to 4-20MA Conversion Sensor Module

RBD-2704

  • Convert voltage signals (0-5V) to industry-standard current signals (4-20mA) for control systems.
  • Isolated design ensures safe operation and minimizes electrical noise interference.
  • Wide operating voltage range (12-24V) for compatibility with various power supplies.
  • Easy to use with clear LED indicators and simple connections.
BDT 660.00
BDT 660.00 BDT 660.00 BDT 660.00 BDT 660.00
Tax included Tax excluded Tax included Tax excluded
BDT 660.00 Tax excluded
BDT 660.00 Tax included
BDT 0.00 Tax
BDT 660.00 Tax excluded
BDT 0.00 Tax
BDT 660.00 Tax included
Quantity
In-Stock
6 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

The Voltage to Current Converter Module provides a reliable solution for transforming voltage signals into 4-20mA current signals commonly used in industrial control systems. This conversion is crucial for transmitting sensor data over long distances with minimal signal loss.

This module features a wide operating voltage range of 12V to 24V, allowing for connection with various power supplies. The isolated design offers a significant advantage by electrically separating the input voltage from the output current, minimizing potential noise interference and ensuring safe operation.

The user-friendly design simplifies implementation. The module includes clear LED indicators for power and output status, and connection requires applying voltage to the designated power input terminals and connecting the sensor or control signal to the input port. Adjusting the input voltage will proportionally change the output current, enabling precise control. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

  1. Voltage to Current Conversion: Converts 0-5V voltage signals to standard 4-20mA current signals.
  2. Isolated Design: Ensures safe operation and minimizes electrical noise interference.
  3. Wide Operating Voltage (12-24V): Compatible with various power supplies.
  4. Easy to Use: Clear LED indicators and simple connection process.
  5. Proportional Output: Output current adjusts proportionally to the input voltage.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

  1. Industrial Automation: Transmit sensor data (e.g., temperature, pressure) over long distances in industrial control systems.
  2. Building Automation Systems: Integrate with sensors for monitoring and control of building parameters (e.g., HVAC systems).
  3. Data Acquisition Systems: Convert sensor readings from voltage signals to standard current signals for data logging and analysis.
  4. DIY Projects: Experiment with interfacing sensors and control systems that utilize 4-20mA current loops.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Function Voltage to Current Conversion
Input Voltage 0-5V
Output Current 4-20mA
Operating Voltage DC 12-24V
Isolation Voltage 1.8MΩ
Power Supply Connection Positive (Pos) and Ground (GND)
Output Connection Output and Ground (GND)
LED Indicators Green (Power), Red (Output)
Shipment Weight 0.020 kg
Shipment Dimensions 6 x 5 x 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

  1. This module is designed for voltage to current conversion within the specified ranges. Do not exceed the input voltage or output current limitations.
  2. Ensure proper wiring and connection polarities to avoid damage to the module.
  3. The output current capacity of the module may be limited. Verify compatibility with your intended load (e.g., sensor).
  4. Consult the datasheet for detailed specifications and advanced configuration options (if applicable).

Package Includes:

1 x Voltage To Current Module 0-5V to 4-20MA Conversion Sensor Module
