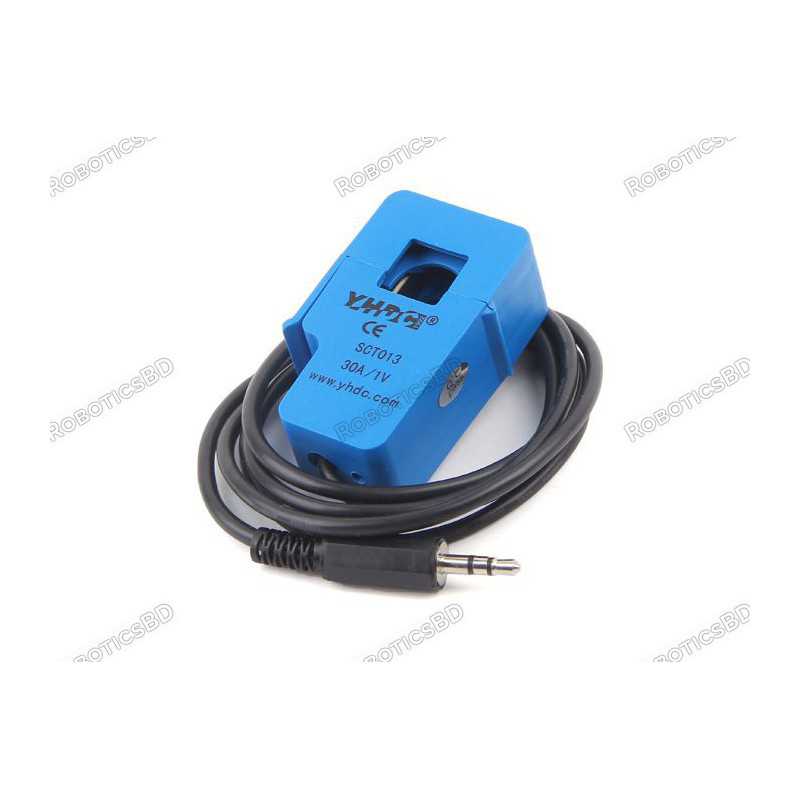

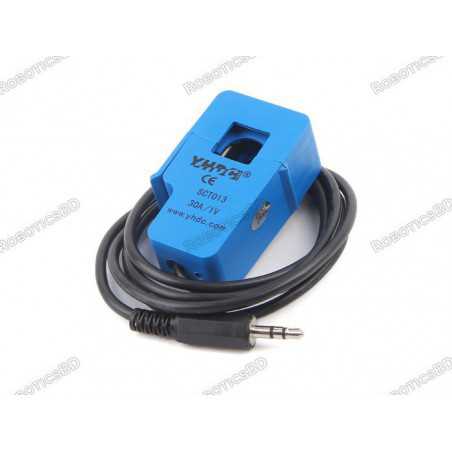

Non-invasive AC current Sensor Split Core Current Transformer SCT-013-000 30A Robotics Bangladesh
  • Non-invasive AC current Sensor Split Core Current Transformer SCT-013-000 30A Robotics Bangladesh
  • Non-invasive AC current Sensor Split Core Current Transformer SCT-013-000 30A Robotics Bangladesh

Non-invasive AC current Sensor Split Core Current Transformer SCT-013-000 30A

RBD-1836

  • Input Current : 0-30A
  • Output Mode: 0-1V @ 30mA
  • Frequency: 50HZ-150KHZ
  • Opening Size: 13 x 13mm/ 0.5″ x 0.5″(L*W)
  • Output Plug 3.5mm
  • Dielectric Strength 6000V AC/1min
  • Suitable for lighting equipment, AC motors, air compressors, monitoring, current measurement, and protection
  • Meet UL94-V0 flame retardant properties
BDT 780.00
BDT 780.00 BDT 780.00 BDT 780.00 BDT 780.00
Tax included Tax excluded Tax included Tax excluded
BDT 780.00 Tax excluded
BDT 780.00 Tax included
BDT 0.00 Tax
BDT 780.00 Tax excluded
BDT 0.00 Tax
BDT 780.00 Tax included
Quantity
In-Stock
10 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

This is SCT-013-030 Non-invasive AC Current Sensor Clamp Sensor 30A. SCT-013-000 is a Non-Invasive AC current sensor i.e. it is a current transformer that can be used to measure AC current up to 100 amperes. Featured by RoboticsBD.

This non-invasive current sensor clamped around the supply line can measure a load up to 30 Amps, and allow you to calculate how much current pass through it. It can be useful for building your own energy monitor or for building an over-current protection device for an AC load. This current clamp can be used to detect a current of up to 30A. Simply clip it around the current source that you wish to measure and it will produce a (very) small AC voltage proportional to the current. The cable is terminated on one end with a standard 3.5mm jack (like a headphone jack). Featured by RoboticsBD.

Use this to build your own energy monitor and keep your power usage down, or use it to build an over-current protection device for an AC load. See the link below for an example project. Check out the datasheet for the pinout of the 3.5mm jack. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications
  1. Suitable for the current measuring.
  2. Monitoring and protection of AC motor
  3. Lighting equipment
  4. Air compressor

Features :

  1. Non-invasive current transformer
  2. Suitable for lighting equipment, AC motors, air compressors, monitoring, current measurement, and protection
  3. Meet UL94-V0 flame retardant properties
  4. Two forms of output current, voltage (voltage output built-in the sampling resistor)
  5. Non-linearity ±3%(10%-120% rated input current)
  6. Output Plug 3.5mm.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Core Material Ferrite
External Material ABS
Input Current 0-30A
Opening Size(mm) 13×13
Dielectric Strength(VAC/1min) 6000
Operating Temperature (°C) -25 to 85
Output Mode 0-1V @ 30mA
Length (mm) 57
Width (mm) 36
Height (mm) 21
Weight (gm) 65
Cable Length (Meter) 1
Shipment Weight 0.07 kg
Shipment Dimensions 9 × 7 × 3.5 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

  1. Interfacing CT Sensor to Arduino
  2. Arduino Energy Monitor
  3. Current Monitoring with Non-invasive AC current Transformer

Package Includes :

1 x 30A AC Current Sensor Module.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Product Details
RBD-1836
10 Items

Specific References

EAN13
1836
