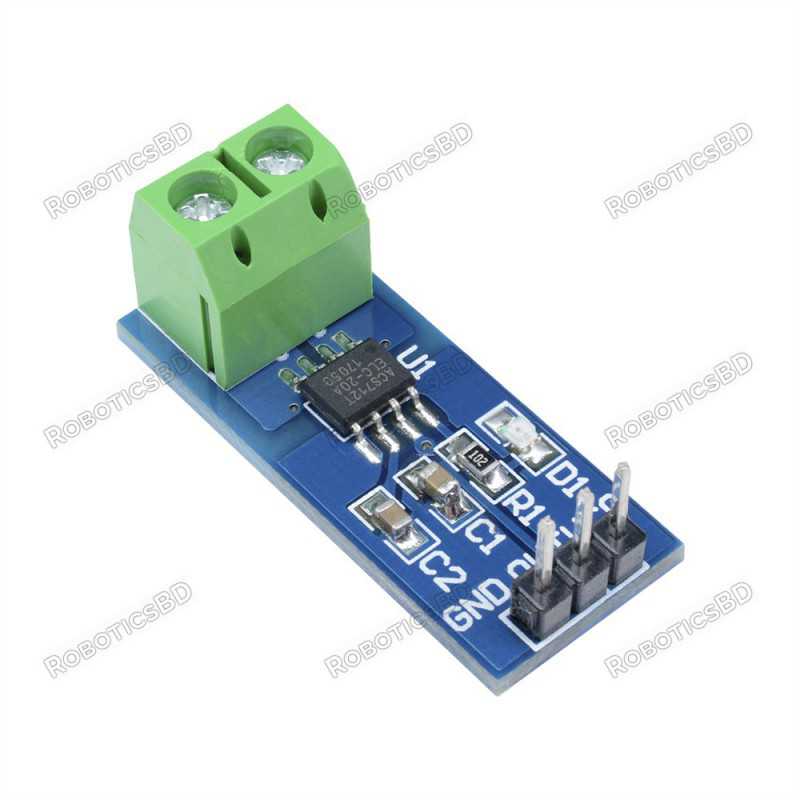

Current Sensor ACS712-20A Robotics Bangladesh
  • Current Sensor ACS712-20A Robotics Bangladesh

Current Sensor ACS712-20A

RBD-1175

  • Low-noise analog signal path
  • Device bandwidth is set via the new FILTER pin
  • 5 µs output rise time in response to step input current
  • Small footprint, low-profile SOIC8 package
  • 2.1 kVRMS minimum isolation voltage from pins 1-4 to pins 5-8
  • Supply Voltage: 4.5V~5.5V DC
  • Measure Current Range: 20A
  • Sensitivity: 100mV/A
BDT 199.00
BDT 199.00 BDT 199.00 BDT 199.00 BDT 199.00
Tax included Tax excluded Tax included Tax excluded
BDT 199.00 Tax excluded
BDT 199.00 Tax included
BDT 0.00 Tax
BDT 199.00 Tax excluded
BDT 0.00 Tax
BDT 199.00 Tax included
Quantity
In-Stock
36 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

The 20A Range Current Sensor Module ACS712 consists of a precise, low-offset, linear Hall circuit with a copper conduction path located near the surface of the die. Applied current flowing through this copper conduction path generates a magnetic field in which the Hall IC converts into a proportional voltage. RoboticsBD

Sensing and controlling current flow is a fundamental requirement in a wide variety of applications including, over-current protection circuits, battery chargers, switching mode power supplies, digital watt meters, programmable current sources, etc.

This ACS721 current module is based on the ACS712 sensor, which can accurately detect AC or DC current. RoboticsBD

The maximum AC or DC that can be detected can reach 20A, and the present current signal can be read via analog I / O port of Arduino.

Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Note: ACS712 is based on the Hall detection principle, please try to avoid the magnetic field, when using it as it may impact the reading accuracy.

Features :

  1. The low-noise analog signal path
  2. Device bandwidth is set via the new FILTER pin
  3. 5 µs output rise time in response to step input current
  4. Small footprint, low-profile SOIC8 package
  5. 2.1 kV RMS minimum isolation voltage from pins 1-4 to pins 5-8
  6. 5.0 V, single-supply operation
  7. 66 to 185 mV/A output sensitivity
  8. Output voltage proportional to AC or DC currents
  9. Factory-trimmed for accuracy
  10. Extremely stable output offset voltage
  11. Nearly zero magnetic hysteresis
  12. The radiometric output from the supply voltage.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Current sensor chip ACS712ELC-20A
Operating Voltage (V) 4.5V ~ 5.5V DC
Measure Current Range -20 ~ +20A
Sensitivity 100mV/A
Length (mm) 32
Width (mm) 13
Height (mm) 13.5
Weight (gm) 5
Shipment Weight 0.01 kg
Shipment Dimensions 7 × 3 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

  1. The Useful Introduction_1 from Embedded-lab.
  2. The Useful Introduction_2 from Embedded-lab.

Package Includes :

1 x Current Sensor ACS712-5A

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Product Details
RBD-1175
36 Items

Specific References

EAN13
1175
Comments (0)
Grade
No customer reviews for the moment.
