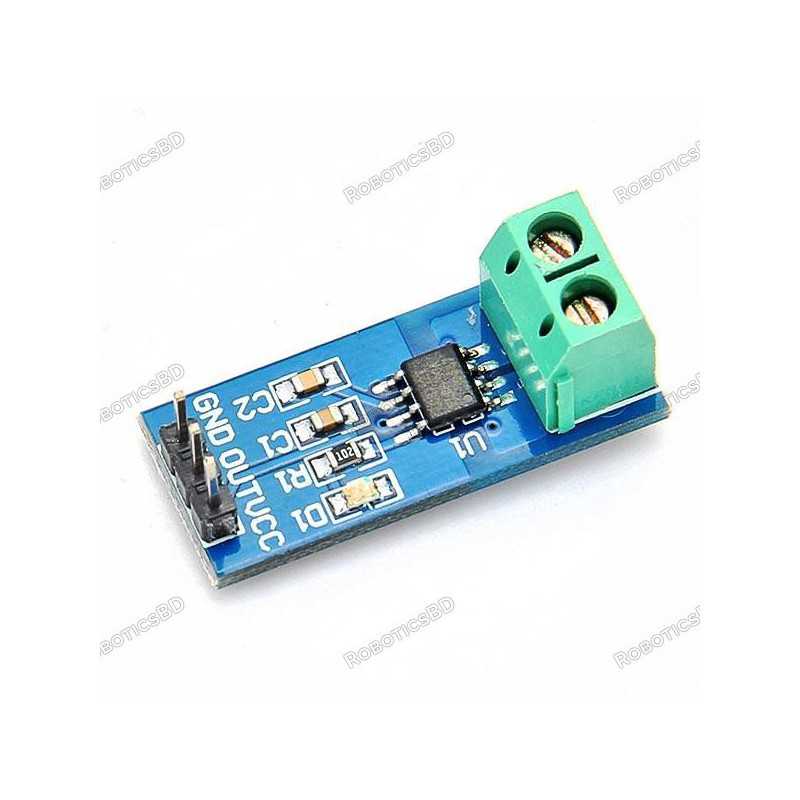

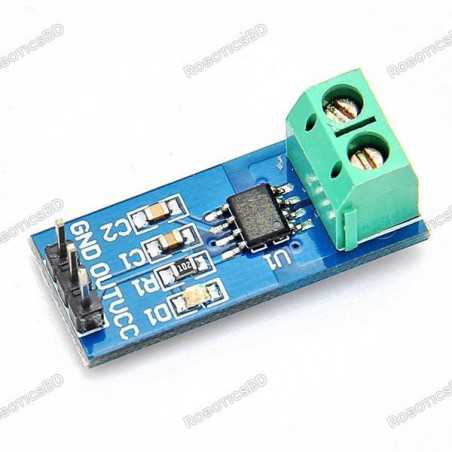

Current Sensor ACS712-30A

RBD-0555

  • Low-noise analog signal path
  • Device bandwidth is set via the new FILTER pin
  • 5 µs output rise time in response to step input current
  • Small footprint, low-profile SOIC8 package
  • 2.1 kVRMS minimum isolation voltage from pins 1-4 to pins 5-8
  • Supply Voltage: 4.5V~5.5V DC
  • Measure Current Range: 30A
  • Sensitivity: 100mV/A
BDT 219.00
BDT 219.00 BDT 219.00 BDT 219.00 BDT 219.00
Tax included Tax excluded Tax included Tax excluded
BDT 219.00 Tax excluded
BDT 219.00 Tax included
BDT 0.00 Tax
BDT 219.00 Tax excluded
BDT 0.00 Tax
BDT 219.00 Tax included
Quantity
In-Stock
39 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

The 30A range Current Sensor Module ACS712 consists of a precise, low-offset, linear Hall Circuit with a copper conduction path located near the surface of the die. Applied current flowing through this copper conduction path generates a magnetic field in which the Hall IC converts into a proportional voltage.

Sensing and controlling current flow is a fundamental requirement in a wide variety of applications including, over-current protection circuits, battery chargers, switching mode power supplies, digital watt meters, programmable current sources, etc. RoboticsBD

This AC721 current module is based on the ACS712 sensor, which can accurately detect AC or DC current. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

The maximum AC or DC that can be detected can reach 30A, and the present current signal can be read via analog I / O port of Arduino. RoboticsBD

Note: The color of the product may vary. while shipping you may get any one of them.

Connection Diagram:

Features :

  1. Low-noise analog signal path
  2. Device bandwidth is set via the new FILTER pin
  3. 5 µs output rise time in response to step input current
  4. Small footprint, low-profile SOIC8 package
  5. 2.1 kVRMS minimum isolation voltage from pins 1-4 to pins 5-8
  6. 5.0 V, single supply operation
  7. 66 to 185 mV/A output sensitivity
  8. Output voltage proportional to AC or DC currents
  9. Factory-trimmed for accuracy
  10. Extremely stable output offset voltage
  11. Nearly zero magnetic hysteresis
  12. The ratiometric output from the supply voltage. RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Current sensor chip ACS712
Operating Voltage (V) 4.5 ~ 5.5V DC
Measure Current Range -30 ~ +30 A
Sensitivity 100mV/A
Length (mm) 31
Width (mm) 13
Height (mm) 13.5
Weight (gm) 5
Shipment Weight 0.01 kg
Shipment Dimensions 4 × 2 × 2 cm

Please allow 5% measuring deviation due to manual measurement.
