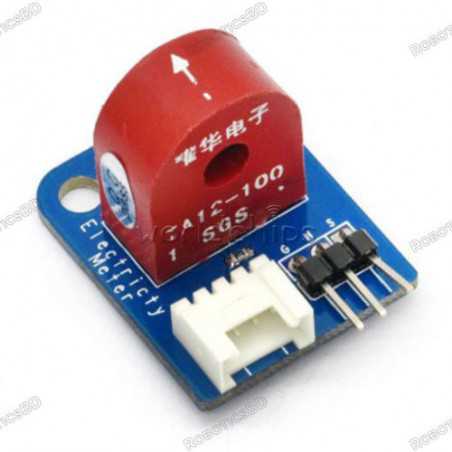

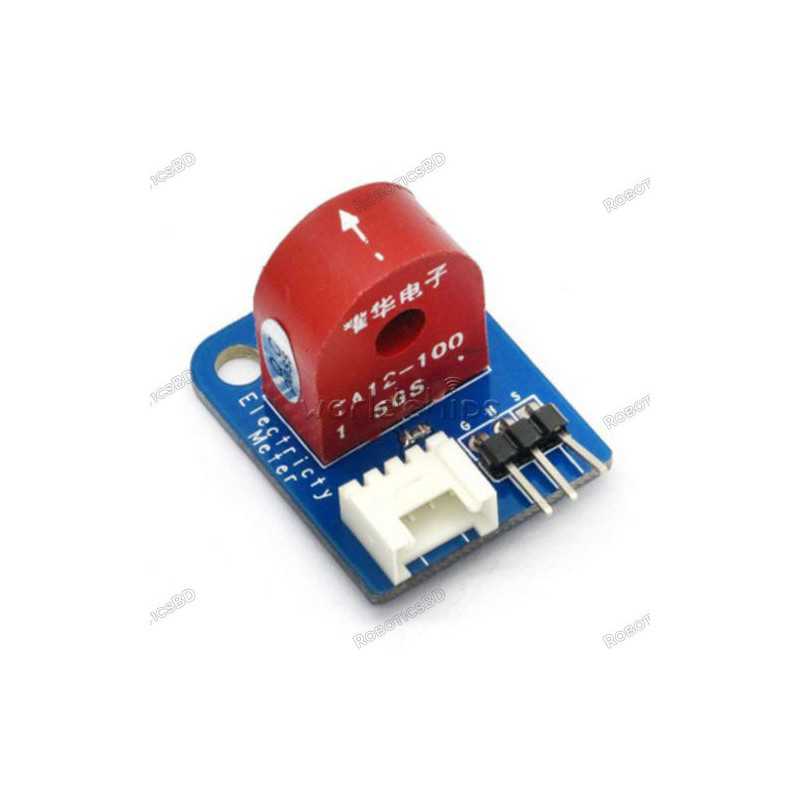

AC 0~5A Analog Current Meter Module Ammeter Sensor Board for Arduino
  • AC 0~5A Analog Current Meter Module Ammeter Sensor Board for Arduino
  • AC 0~5A Analog Current Meter Module Ammeter Sensor Board for Arduino
  • AC 0~5A Analog Current Meter Module Ammeter Sensor Board for Arduino

AC 0~5A Analog Current Meter Module Ammeter Sensor Board for Arduino

RBD-0564

  • Onboard precision microcurrent transformer.
  • Onboard sampling resistor.
  • The module can measure AC currents less than 5A, the corresponding analog output 5A/5mA.
  • Rated input current: 5A
  • Rated output current: 5mA
  • Change: 1000: 1
  • The linear range: 0 ~ 10A (100 ohms)
  • Linearity: 0.2%
BDT 455.00
BDT 455.00 BDT 455.00 BDT 455.00 BDT 455.00
Tax included Tax excluded Tax included Tax excluded
BDT 455.00 Tax excluded
BDT 455.00 Tax included
BDT 0.00 Tax
BDT 455.00 Tax excluded
BDT 0.00 Tax
BDT 455.00 Tax included
Quantity
In-Stock
16 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

This electricity sensor is based on TA12-100 current transformer, which can transform AC signals of large current into small amplitude signals. The maximum current that can be detected can reach 5A, and the present current signal can be read via analog I / O port. RoboticsBD

It has Onboard sampling resistor and precision microcurrent transformer do accurate sampling for the signal and appropriate compensation, and other functions. The module can measure within 5A current communication, corresponding to output analog quantity can be adjusted.Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features :

  1. Onboard precision microcurrent transformer. RoboticsBD
  2. Onboard sampling resistor.
  3. The module can measure AC currents less than 5A, the corresponding analog output 5A/5mA.
  4. Type: Sensor Brick
  5. Interface:3PIN
  6. Power Supply:5V
  7. Board Size:30 × 24 × 1.6mm
  8. Weight:25.00g

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Rated Input Current (A) 5
Rated Output Current (mA) 5
The linear range 0 ~ 10A (100 ohms)
Change 1000: 1
Linearity 0.002
Precision Rating 0.2
Sealing material Epoxy Resin
Operating Temperature (°C) -40 to 90
Length (mm) 30
Width (mm) 24
Height (mm) 1.6
Weight (gm) 25
Shipment Weight 0.027 kg
Shipment Dimensions 3 × 3 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes :

1 x AC 0~5A Analog Current Meter Module Ammeter Sensor Board for Arduino.
