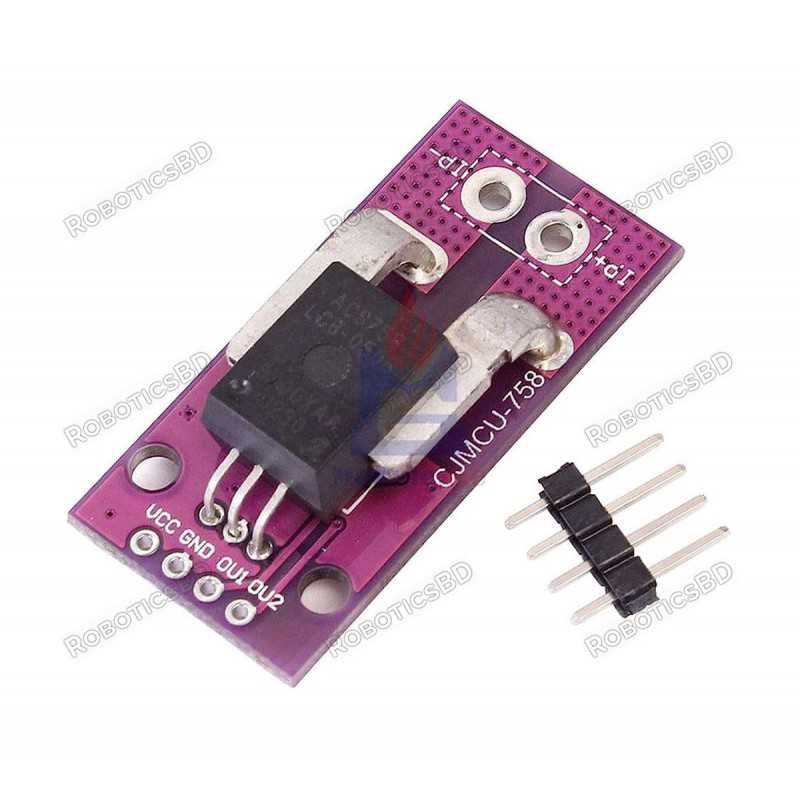

CJMCU-758 ACS758LCB-050B- PFF-T Hall Current Sensor Module

RBD-2361

  1. Working voltage: 3V-5V (MAN SV)
  2. Static output voltage: VCCi2
  3. Working current: 135m2A (MAX)
  4. Small in size, with easy mounting capability.
  5. Monolithic Hall IC for high reliability
BDT 680.00
BDT 680.00 BDT 680.00 BDT 680.00 BDT 680.00
Tax included Tax excluded Tax included Tax excluded
BDT 680.00 Tax excluded
BDT 680.00 Tax included
BDT 0.00 Tax
BDT 680.00 Tax excluded
BDT 0.00 Tax
BDT 680.00 Tax included
Quantity
13 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

This MCU-758 ACS758LCB-050B- PFF-T Hall Current Sensor Module is based on the Allegro Hall-effect Based Linear Current Sensor IC ACS758LCB-050B. This is 50 Ampere Bi-directional current sensor Module.

The relationship between voltage output and current input:
 VOUT = VOUT(Q) + Vsens x I VOUT(Q) is the quiescent output voltage, which is VCC/2, which is the output voltage when there is no input. Vsens is a sensor-sensitive scale, also known as a coefficient. I is the current flowing from IP+ to IP-.
For example, suppose the sensor model is 050B, VCC is 5V, and I current is 10A, then the output is 5V / 2+40mV/A x10A=2.9V.

Features:

  1. Small in size, with easy mounting capability.
  2. Monolithic Hall IC for high reliability
  3. Extremely stable output offset voltage
  4. Factory-trimmed for accuracy.
  5. Nearly zero magnetic hystereses.

Package Includes:

1 x MCU-758 Hall Current Sensor

Product Details
RBD-2361
13 Items

Specific References

EAN13
2361
