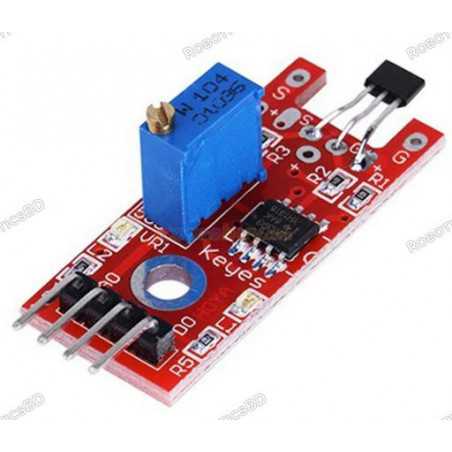

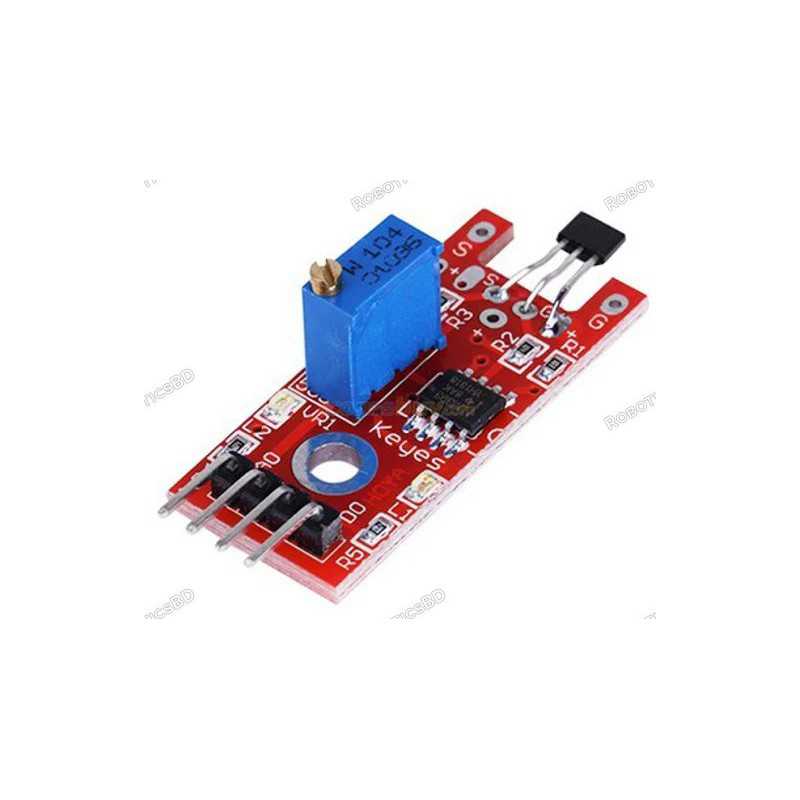

Linear Magnetic Hall sensor

RBD-2072

  • Operating Voltage: 3.3V-5V
  • Features wide range voltage comparator LM393
  • Adjustable sensitivity
  • Signal output indicator with the retaining bolt hole, convenient installation
  • Output form digital switch output (0 and 1 high and low level)
  • The output effective signal is low level
  • When there is sound, outputs low level and the signal light
BDT 65.00
BDT 65.00 BDT 65.00 BDT 65.00 BDT 65.00
Tax included Tax excluded Tax included Tax excluded
BDT 65.00 Tax excluded
BDT 65.00 Tax included
BDT 0.00 Tax
BDT 65.00 Tax excluded
BDT 0.00 Tax
BDT 65.00 Tax included
Quantity
In-Stock
150 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

The Linear Magnetic Hall sensor module and a digital interface, built-in 13 LED build a simple circuit to produce a magnetic field warning lamp comes with digital interfaces of the LED, the linear Hall sensor magnetometer access number 3 interface, when linear Hall magnetometer Sensor senses a key signal, LED lights, otherwise off. Featured By RoboticsBD

Hall switch integrated circuit using hall effect principle, Uses the semiconductor integrated technology manufacturing magnetic susceptibility of the circuit, it is by the voltage regulator, hall voltage generator, differential amplifier, Schmitt triggers, temperature compensation, and the open collector output stage circuit composed of magnetic sensitive sensor circuit, its input for the magnetic induction intensity, the output is a digital voltage signal.

A magnetic field is detected by the sensor and will be printed as an analog voltage value. You can control the sensitivity of the sensor with the potentiometer. Featured By RoboticsBD

Product Images are shown for illustrative purposes only and may differ from the actual product.

Note: Product images/ Components brand may vary from actual product as our stock rotates.

Note: PCB might be different from the picture as per stock

Pins:
  1. VCC ↔ 2.3V ~ 5.3V
  2. GND ↔ power supply ground
  3. AOUT ↔ MCU.IO (analog output)
  4. DOUT ↔ MCU.IO (digital output)
Applications
  1. Motor speed measurement
  2. Object position detection
  3. Smart car
  4. Electronic bricks

Features :

  1. Features wide range voltage comparator LM393
  2. Adjustable sensitivity
  3. Signal output indicator with the retaining bolt hole, convenient installation
  4. Output form digital switch output (0 and 1 high and low level)
  5. Signal output indication
  6. Single channel signal output
  7. The output effective signal is low level
  8. When there is sound, outputs low level and the signal light
  9. Can be used for Acoustic control light, give sound and light alarm working with the Photosensitive sensor, and sound control, sound detect

General Specification
Operating Voltage (VDC) 3.3 ~ 5
Length (mm) 35
Width (mm) 15
Height (mm) 14
Weight (gm) 3
Shipment Weight 0.005 kg
Shipment Dimensions 12 × 8 × 2.5 cm

Please allow 5% measuring deviation due to manual measurement.

Package Includes :

1 x Linear Magnetic Hall sensor

Product Details
RBD-2072
150 Items

Specific References

EAN13
2072
