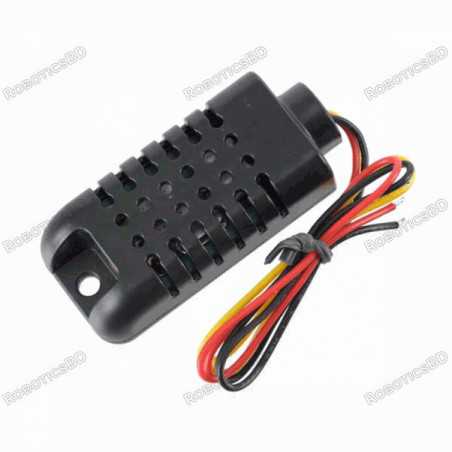

DHT21 AM2301 Temperature & Humidity Sensor

RBD-1374

  • Model: AM2301.
  • Supply voltage: 3.3 ~ 5.2 V DC.
  • Signal output form: Digital signal output.
  • Temperature measurement range: -40 ~ +80 ºC.
  • Temperature measurement precision: ± 0.5ºC
  • Humidity range: 10%~90%RH.
  • Humidity measurement precision: ±3%RH.
BDT 550.00
BDT 550.00 BDT 550.00 BDT 550.00 BDT 550.00
Tax included Tax excluded Tax included Tax excluded
BDT 550.00 Tax excluded
BDT 550.00 Tax included
BDT 0.00 Tax
BDT 550.00 Tax excluded
BDT 0.00 Tax
BDT 550.00 Tax included
Quantity
In-Stock
151 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

AM2301 Capacitive Digital Temperature & Humidity Sensor sensor is one of the commonest from the range of DHT temperature sensors; and boasts a relatively high-temperature measurement accuracy of 0.5°C in 0.1°C steps with a relative humidity accuracy of ± 3%.

It has only 3 wires, including power and ground, meaning only one digital pin is required to interface it to a microcontroller. For Arduino development platforms the sensor is very well supported by the DHT library available from the Arduino Playground website. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD







Features:

  1. 4-pin package.
  2. Ultra-low-power.
  3. No additional components.
  4. Excellent long-term stability.
  5. All calibration, digital output.
  6. Completely interchangeable.
  7. Long-distance signal transmission.
  8. Relative humidity and temperature measurement.

Specifications:

  1. Model: AM2301
  2. Power supply: 3.3-5V DC
  3. Output signal: digital signal via single-bus
  4. Sensing element: Polymer humidity capacitor
  5. Measuring range: humidity 0-100%RH; temperature -40~80Celsius
  6. Accuracy: humidity +-3%RH(Max +-5%RH); temperature <+-1Celsius
  7. Resolution or sensitivity: humidity 0.1%RH; temperature 0.1Celsius
  8. Repeatability: humidity +-1%RH; temperature +-0.2Celsius
  9. Humidity hysteresis: +-0.3%RH
  10. Long-term Stability: +-0.5%RH/year
  11. Sensing period: Average: 2s
  12. Dimensions size 59*27*13.5mm

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Model AM2301
Supply Voltage (V) 3.3 ~ 5
Average Current Consumption (mA) 300
Humidity 0 ~ 99.9 %RH
Precision 3% RH
Output type Digital (1 wire)
Operating Temperature (Celsius) -20 ~ +60
Cable Length (cm) 20
Length (mm) 60
Width (mm) 27
Height (mm) 14
Weight (gm) 15
Shipment Weight 0.018 kg
Shipment Dimensions 8 × 7 × 5 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

  1. DHT21 AM2301 Temperature & Humidity Sensor (HCSENS0026)
  2. Humidity and Temperature

-

Package includes:

1 x DHT21 AM2301 Temperature & Humidity Sensor.
