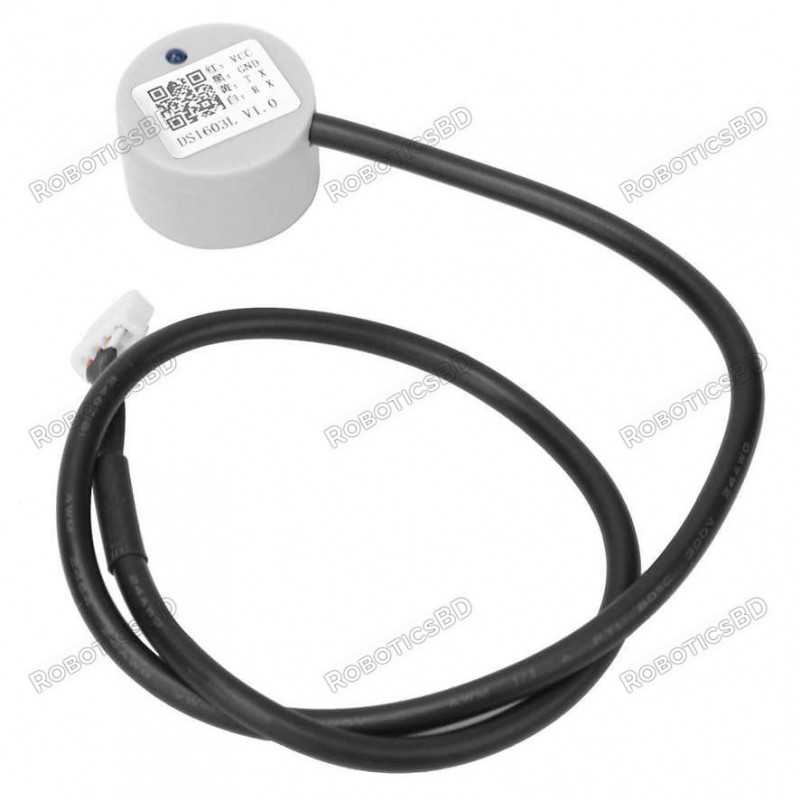

XKC-DS1603L V1 Ultrasonic Level Sensor Non-contact Sensing

RBD-2148

  • Non-contact detection
  • Suitable for liquids of various densities and forms
  • Easy installation for all kinds of detection occasions
  • Compatible with containers of various materials and thicknesses
  • Reliable performance with anti-interference ability
BDT 2,540.00
BDT 2,540.00 BDT 2,540.00 BDT 2,540.00 BDT 2,540.00
Tax included Tax excluded Tax included Tax excluded
BDT 2,540.00 Tax excluded
BDT 2,540.00 Tax included
BDT 0.00 Tax
BDT 2,540.00 Tax excluded
BDT 0.00 Tax
BDT 2,540.00 Tax included
Quantity
Last items in stock
2 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

The XKC-DS1603L.V1 Ultrasonic Level Sensor is a cutting-edge non-contact sensing solution for accurately measuring liquid levels. With its UART serial port and wide voltage range of 3.3~12V, this sensor offers seamless integration and compatibility. Its non-contact detection capability ensures that there is no direct contact with the substance being tested, making it suitable for a wide range of liquids, including those with various densities and forms.

The compact size and ease of installation make it an ideal choice for diverse detection occasions. Experience reliable performance and excellent anti-interference ability with this ultrasonic level sensor. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

  1. Non-contact detection for safe and reliable measurements
  2. Suitable for liquids of various densities and forms, providing versatility
  3. Easy installation and integration for different detection occasions
  4. Compatible with containers made of different materials and thicknesses
  5. Reliable performance with excellent anti-interference ability
  6. High accuracy with precise output of height values
  7. Widely used in beverage production, household appliances, medical equipment, drinking water equipment, chemical equipment, industrial automation, and hazardous liquid detection in various industries

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

  1. Beverage production: Ensure precise liquid level measurements in the production process.
  2. Household appliances: Enable accurate liquid level detection in appliances such as washing machines and dishwashers.
  3. Medical equipment: Provide reliable liquid level monitoring for medical devices and equipment.
  4. Drinking water equipment: Ensure precise liquid level control in water purification and distribution systems.
  5. Chemical equipment: Enable accurate monitoring of liquid levels in chemical processing.
  6. Industrial automation: Support efficient liquid level detection in industrial automation processes.
  7. Hazardous liquids: Safely measure the levels of hazardous liquids in various industries.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Item Type Level Sensor
Voltage 3.3~12V DC
Average Current <35mA
Blind Area Distance <=50mm
Detect Level Height 50~2000mm
Working Circular 1 second
Output Mode UART Serial
Resolution 1mm
Response Time 2 seconds
No Response Time 10 seconds
Normal Temperature Accuracy ±(3+H*0.5%) mm
ESD ±4/±8 KV
Shipment Weight 0.188 kg
Shipment Dimensions 10 × 10 × 6 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

  1. Datasheet

Package Includes:

1 x XKC-DS1603L.V1 Ultrasonic Level Sensor
