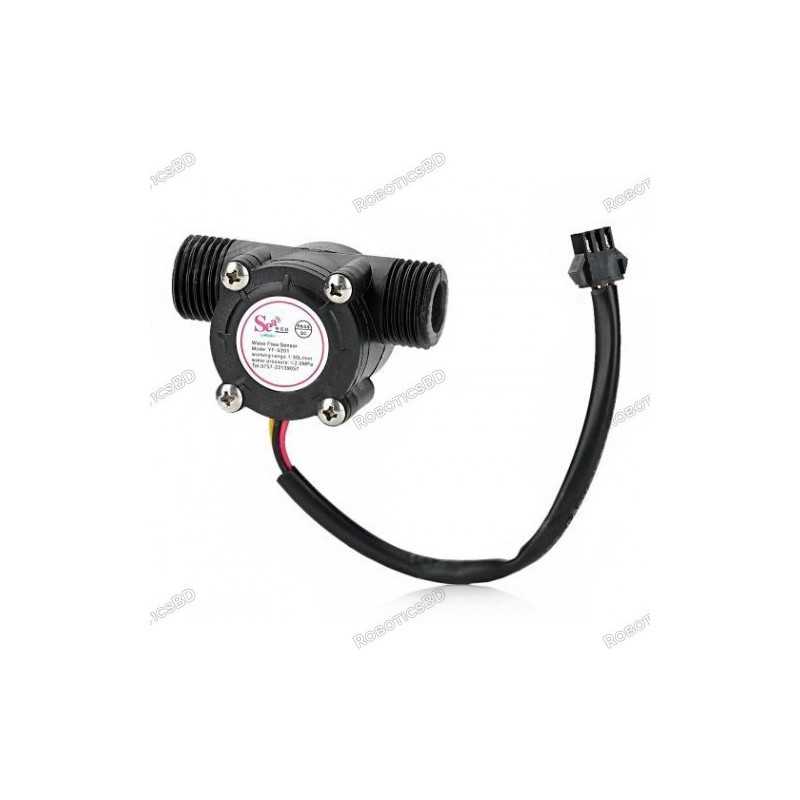

YF-S201 Hall Effect Water Flow Meter / Sensor
  • YF-S201 Hall Effect Water Flow Meter / Sensor

YF-S201 Hall Effect Water Flow Meter / Sensor

RBD-0311

  • Working Voltage: 5 to 18V DC (min tested working voltage 4.5V). RoboticsBD
  • Max current draw: 15mA @ 5V.
  • Working Flow Rate: 1 to 30 Liters/Minute.
  • Maximum water pressure: 2.0 MPa.
  • Flow rate pulse characteristics: Frequency (Hz) = 7.5 * Flow rate (L/min). RoboticsBD
BDT 420.00
BDT 420.00 BDT 420.00 BDT 420.00 BDT 420.00
Tax included Tax excluded Tax included Tax excluded
BDT 420.00 Tax excluded
BDT 420.00 Tax included
BDT 0.00 Tax
BDT 420.00 Tax excluded
BDT 0.00 Tax
BDT 420.00 Tax included
Quantity
In-Stock
40 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

This is YF-S201 Water Flow meter Measurement Sensor with 1-30Leter/min Flow Rate in black colour. This sensor sits in line with your water line and contains a pinwheel sensor to measure how much liquid has moved through it. There’s an integrated magnetic hall effect sensor that outputs an electrical pulse with every revolution. The hall effect sensor is sealed from the water pipe and allows the sensor to stay safe and dry. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Connection

Red wire: +5V
Black wire: GND
Yellow wire: PWM output

Features :

  1. The simple and compact module.
  2. Easy to Install.
  3. High Sealing Performance.
  4. High-Quality Hall Effect Sensor. RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Model YF-S201
Working Voltage (V) 5 ~ 18
Max current draw 15mA @ 5V
Working Flow Rate (Liters/Minute) 1 ~ 30
Operating Temperature range (℃) -25 ~ +80
Operating Humidity Range 35% – 80% RH
Accuracy ±10%
Maximum water pressure 2.0 MPa
Output duty cycle 50% +-10%
Output rise time (µsec) 0.04
Pulses per Liter 450
Output fall time (µsec) 0.18
Outer diameter (mm) 20
Intake diameter (mm) 11
Outlet diameter (mm) 11
Length (mm) 62.5
Width (mm) 36
Height (mm) 35
Weight (gm) 50
Shipment Weight 0.089 kg
Shipment Dimensions 9 × 6 × 6 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes :

1 x YF-S201 Water Flow meter Measurement Sensor with 1-30Liter/min Flow Rate – Black.
