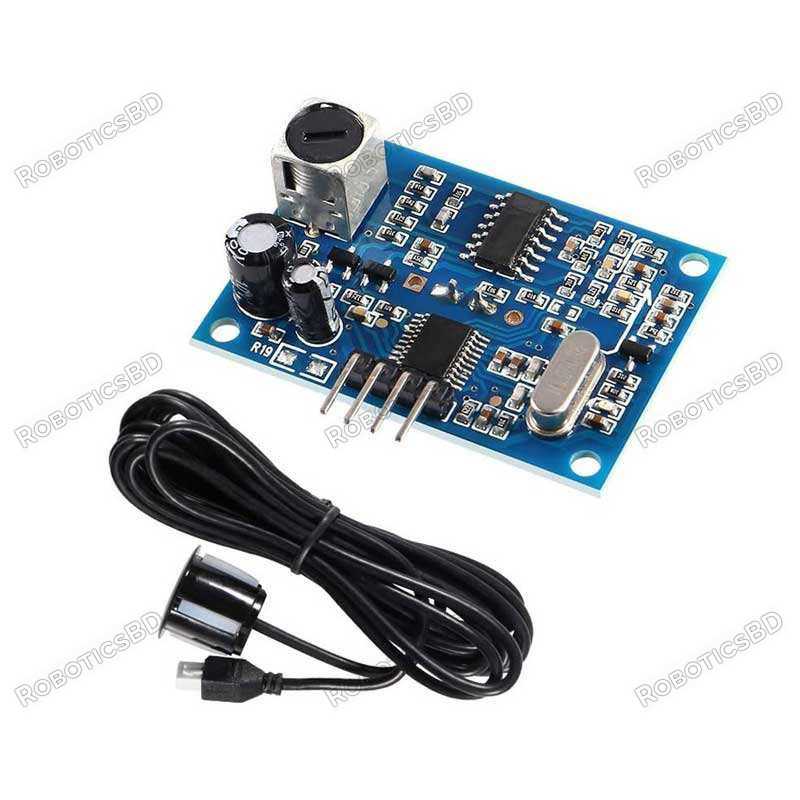

Ultrasonic Transducer Waterproof Distance Measuring Sensor Module
  • Ultrasonic Transducer Waterproof Distance Measuring Sensor Module
  • Ultrasonic Transducer Waterproof Distance Measuring Sensor Module Robotics Bangladesh

Ultrasonic Transducer Waterproof Distance Measuring Sensor Module

RBD-0396

  • Integrated with wire enclosed waterproof probe, suitable for wet, harsh measurement occasions
  • Small size, easy to use
  • Operating Voltage: 5 V
  • Sonar Sensing Range: 25-450 cm
  • Max. Sensing Range: 450 cm
  • Frequency: 40 KHz. RoboticsBD
BDT 615.00
BDT 615.00 BDT 615.00 BDT 615.00 BDT 615.00
Tax included Tax excluded Tax included Tax excluded
BDT 615.00 Tax excluded
BDT 615.00 Tax included
BDT 0.00 Tax
BDT 615.00 Tax excluded
BDT 0.00 Tax
BDT 615.00 Tax included
Quantity
In-Stock
34 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

This ultrasonic sensor is very similar to the ultrasonic sensors which are found in cars. This Waterproof Ultrasonic Obstacle Sensor shows some important constructional advantages over the conventional sensors. It comes in two separate parts one being the transducer which is the sensing element and the other being the control board. RoboticsBD

The module is capable of providing information of the objects between the distance range of 250 mm to 4500 mm. The great advantage of using this Waterproof Ultrasonic Obstacle Sensor is you can put the sensing element far away from all the control circuitry. RoboticsBD

This Ultrasonic Distance Sensor is an industrial-grade sensor to measure distance. Interfacing with it is the same as another cheap ultrasonic sensor, but it offers better performance and is compatible with harsher environments and is waterproof too! It can be easily interfaced with Arduino and Sample codes and projects are available. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

The basic working principle:
  1. Turn on TRIG Pin to 5V for at least 10uS
  2. The module will then automatically send 8 40KHz tones and automatically detect when the signal return after reflecting back from the object
  3. Upon detecting the signal, a high-level signal is outputted through the IO Pin ECHO. By keeping track of the time duration between transmitting and receiving the signal, the distance can be calculated. Distance = (Time to Receive Reflected Signal * speed of sound (340M/S)) /2

Wiring

+5V(positive)

Trig(control)

Echo(receive)

GND(negative)

Application :
  1. Horizontal distance
  2. Obstacle avoidance, automatic control
  3. Traffic control
  4. Security, industrial control
  5. Artificial intelligence, and research. RoboticsBD

Features:

  1. Small size, easy to use.
  2. Low voltage, low power consumption.
  3. High accuracy.
  4. Strong anti-jamming. RoboticsBD
  5. Integrated with wire enclosed waterproof probe, suitable for wet, harsh measurement occasions.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Operating voltage (v) 5
Operating Current (mA) 30
Static Current (mA) 5
Operating Range 25cm ~ 4.5m
Resolution 0.5 cm
Detecting Angle < 70°
Operating Temperature (℃) -10 ~ +70
Cable Length 2.5 meter
Length (mm) 41
Width (mm) 28
Height (mm) 12.5
Weight (gm) 50
Shipment Weight 0.055 kg
Shipment Dimensions 10 × 6 × 5 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes :

1 x Ultrasonic Transducer Waterproof Distance Measuring Sensor Module.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Product Details
RBD-0396
34 Items

Specific References

EAN13
0396
