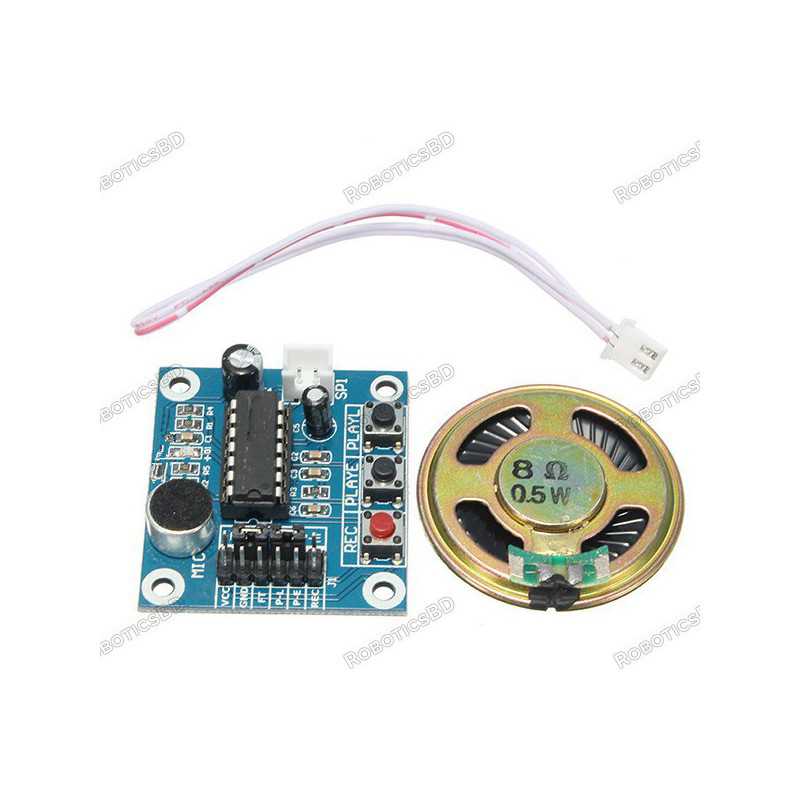

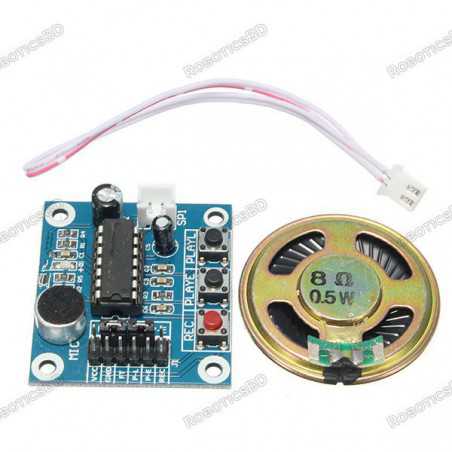

This is ISD1820 Recording Module Voice Board With On Board Mic and Loud Speaker. The ISD1820 Recording Module Voice Board is the real easy way to add Voice Recording (and Playback) to your project. The Module can be operated directly by using the 3 Push-Buttons or with every microcontroller (ex. Arduino).
A microphone is implemented directly on the board, and you can connect any 8 Ohm Speaker. Your recordings are saved even without power due to the non-volatile storage on the ISD1820. RoboticsBD
This module uses the ISD1820 voice record and playback IC to record a single voice message of up to 10 seconds in length. The recorded message is stored in its specialized analog flash memory that will keep the message stored even when power is removed.
The module includes an electret microphone to record your message and push buttons to allow for the record, partial playback, or full playback of the message. Header pins allow for easy interface to a microcontroller and playback can be controlled with just one digital pin.
The package includes an 8 Ohm 0.5W speaker and cable which can be connected directly to the modules speaker output.Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Buttons control audio recording method of operation
REC Button: record button, you can press and hold the recording, release the button to stop recording;
RLAYE Key: trigger mode playback, press will play this whole speech;
PLAYL Key: jog mode playback, press and hold until playback, release to stop playback;
RPL Jumper: loop mode control, loop playback;
FT Jumper: direct control, microphone voice through the speaker can playback;
Features :
- An easy to use 10 seconds of voice recording. RoboticsBD
- High-quality, natural voice restored.
- Can be used as a propaganda module.
- With looping, jog playback, single-pass play function.
- Available single-chip control. RoboticsBD
- This module can directly drive a small speaker 8 ohms 0.5W.
- Audio recording control mode: the key to control or microcontroller, IO has drawn the line of control.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification |
| The main chip |
ISD1820 |
| Operating Voltage (V) |
DC 3 ~ 5 |
| Loudspeaker |
8 Ω, 0.5W |
| Speaker Connecting Cable Length (cm) |
20 |
| Speaker Diameter (mm) |
40 |
| Length (mm) |
42 |
| Width (mm) |
33.5 |
| Height (mm) |
11.5 |
| Weight (gm) |
20 |
| Shipment Weight |
0.022 kg |
| Shipment Dimensions |
8 × 6 × 3 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Package Includes :
1 x ISD1820 Recording Module Voice Board With On-Board Mic.
1 x Loud Speaker.
