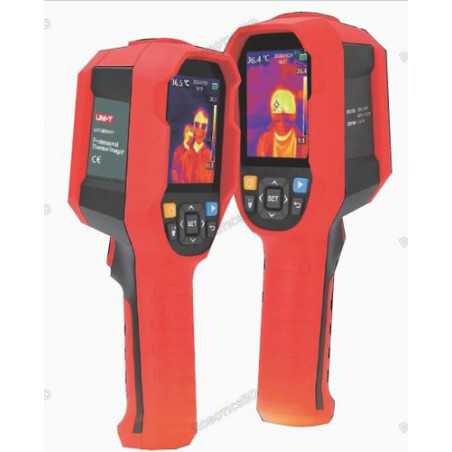

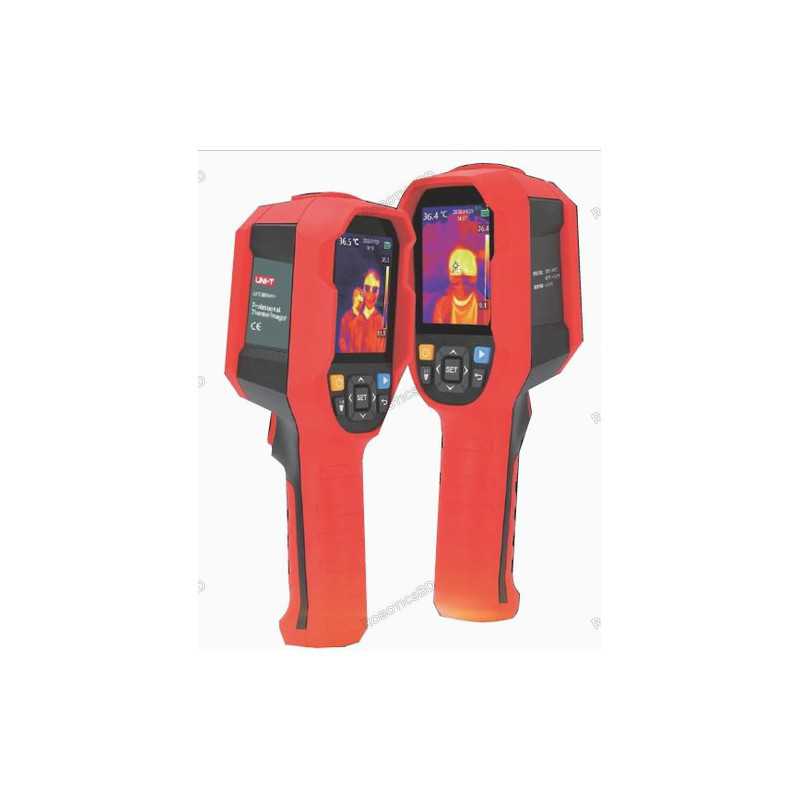

Uni-T UTi85H+ Professional Thermal Imager

RBD-1365

  • Central point temperature measurement
  • high/low temperature auto tracking
  • real-time temperature display
  •  Alarm buzzer: >37.2ºC: high temperature audible alarm
BDT 39,000.00
BDT 39,000.00 BDT 39,000.00 BDT 39,000.00 BDT 39,000.00
Tax included Tax excluded Tax included Tax excluded
BDT 39,000.00 Tax excluded
BDT 39,000.00 Tax included
BDT 0.00 Tax
BDT 39,000.00 Tax excluded
BDT 0.00 Tax
BDT 39,000.00 Tax included
Quantity
Last items in stock
1 Item

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

  1. Region of interest mode (ROI)
  2. Real-time image transmission
  3. High/low temperatures measurement
  4. Adjustable emissivity
  5. Storage card. RoboticsBD
  6. Alarm buzzer
  7. High temperature alarm
  8. Flashlight
  9. Type-C USB port for charging and data transmission

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Model UTi85H+
Sensor Uncooled focal plane
Temperature range 30˚C~45˚C
Resolution 0.1˚C
Accuracy ±0.5˚C (@25˚C ambient temperature)
Minimum measuring distance 1m
Temperature measurement response time ≤500ms (95% of reading)
Pixel of thermal imagery 4800 (80×60)
Pixel dimensions 17μm
Swatches White hot, red hot, ice blue, rainbow, iron
Bandwidth of infrared spectroscopy 8~14μm
Field of view (FOV) 51°(H) × 38°(V)
Instantaneous field of view (IFOV) 11mrad
Thermal imaging sensitivity ＜150mk
Frame rate ＜9Hz
Temperature display Center temperature measurement and high temperature tracking (default)
Image format BMP
Image modes Thermal image
Display resolution 320×240
PC analysis software (PC) √
Data communication Type-C USB
Auto power off Selectable (5min, 10min, 30min), 30min auto power off (default)
Battery life ≧6 hours
Charging time 4 hours
Image storage Micro SD card
Display 2.8" TFT LCD
Product color Red & grey
Product size 236mm x 75.5mm x 86mm
Standard accessories Manual, Type-C USB cable, 16GB TF card
Standard carton gross weight 2.2kg
Shipment Weight 2.2 kg
Shipment Dimensions 24 × 7.5 × 8.6 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

Package Includes:

1 x Uni-T UTi85H+ Professional Thermal Imager.
