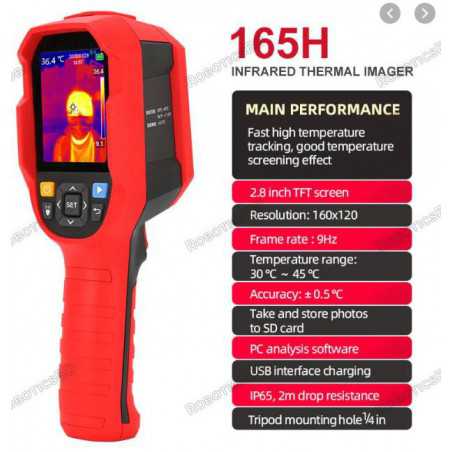

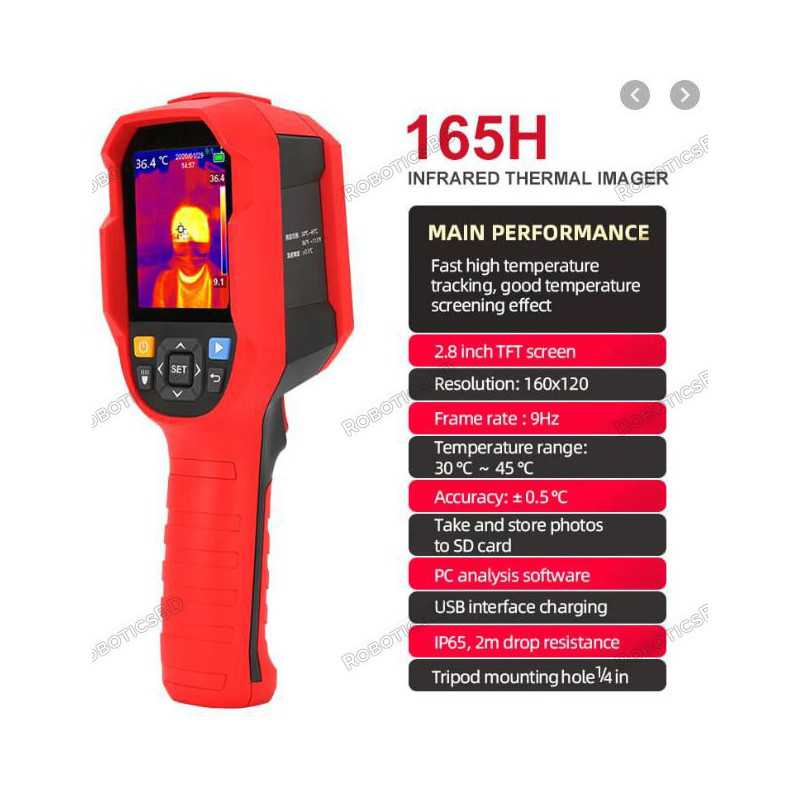

Uni-T UTi165H Professional Thermal Imager

RBD-1385

  •  2.8" TFT screen
  •  Infrared resolution: 160×120
  •  Frame frequency: 9Hz
  •  Range of temperature measurement: 30˚C~45˚C
  •  Accuracy: ±0.5˚C
  •  Photographed function and SD card storage
  •  PC software analysis
  •  Point temperature measurement
  •  Type-C USB interface for lithium battery charging
  • .1/4" tripod mounting hole
BDT 43,000.00 BDT 43,000.00 BDT 43,000.00 BDT 43,000.00 BDT 43,000.00
BDT 42,000.00 Save BDT 1,000.00
BDT 42,000.00 BDT 42,000.00 BDT 42,000.00 BDT 42,000.00
Tax included Tax excluded Tax included Tax excluded
BDT 43,000.00 BDT 42,000.00 Tax excluded
BDT 43,000.00 BDT 42,000.00 Tax included
BDT 0.00 BDT 0.00 Tax
BDT 43,000.00 BDT 42,000.00 Tax excluded
BDT 0.00 BDT 0.00 Tax
BDT 43,000.00 BDT 42,000.00 Tax included
Quantity
Last items in stock
2 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

  1. HI/LO Temperature Alarm:
  2. Central point temperature measurement
  3. high/low temperature
  4. Auto tracking, RoboticsBD
  5. Real-time temperature display.
  6. Supports SD card
  7. USB import; with Powerful image processing capability.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Model UTi165H
Sensor Uncooled focal plane
Temperature range 30˚C~45˚C
Resolution 0.1˚C
Accuracy ±0.5˚C @1m
Minimum measuring distance 15cm
Temperature measurement response time ≤500ms (95% of reading)
Pixel of thermal imagery 19200 (160×120)
Pixel dimensions 12μm
Swatches Black white, red white, blue white iron red, rainbow,
Bandwidth of infrared spectroscopy 8~14μm
Field of view (FOV) 56°(H) × 42°(V)
Instantaneous field of view (IFOV) 6mrad
Thermal imaging sensitivity ＜50mk
Frame rate ＜9Hz
Temperature display Center temperature measurement and high temperature tracking (default)
Image format BMP
Image modes Thermal imagery
Temperature measuring point Besides central point, 3 temperature measuring points can be added
Display resolution 320×240
PC analysis software (PC) √
Data communication Type-C USB
Auto power off Selectable (5min, 10min, 30min), 30min auto power off (default)
Service time ≧6 hours
Charging time 4 hours
Image storage Micro SD card
Power A single Li-ion 3.7V/5000mAh 26650 battery
Display 2.8" TFT LCD
Product color Red & grey
Product size 236mm x 75.5mm x 86mm
Standard accessories Manual, Type-C USB cable, 16GB TF card
Standard carton gross weight 2.2kg
Shipment Weight 2.200 kg
Shipment Dimensions 23.5 × 8.5 × 7.5 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

  1. Product Page
  2. User Manual

Package Includes:

1 x Uni-T UTi165H Professional Thermal Imager.
