Flame Sensor Module Robotics Bangladesh
  • Flame Sensor Module Robotics Bangladesh
  • Flame Sensor Module Robotics Bangladesh
  • Flame Sensor Module Robotics Bangladesh

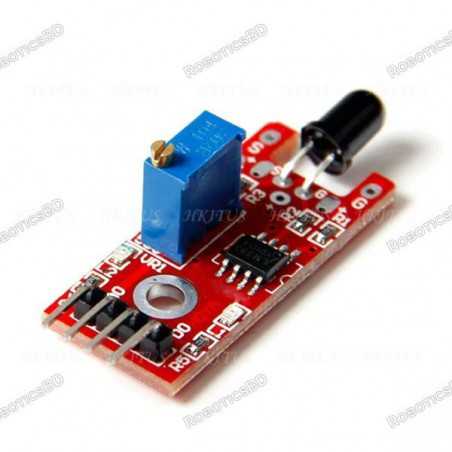

Flame Sensor Module

RBD-2100

  • Comparator chip LM393 makes module readings stable.
  • Operating voltage 3.3V-5V.
  • Fast Response Time
  • Sensitivity adjustable
  • Detects a flame or a light source of a wavelength in the range of 760nm-1100 nm.
  • Detection range: up to 100 cm.
  • Adjustable detection range.
  • Detection angle about 60 degrees, it is sensitive to the flame spectrum.
BDT 85.00
BDT 85.00 BDT 85.00 BDT 85.00 BDT 85.00
Tax included Tax excluded Tax included Tax excluded
BDT 85.00 Tax excluded
BDT 85.00 Tax included
BDT 0.00 Tax
BDT 85.00 Tax excluded
BDT 0.00 Tax
BDT 85.00 Tax included
Quantity
In-Stock
59 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

The Flame Sensor Module can detect flames in the 760 – 1100 nanometer wavelength range. Small flames like a lighter flame can be detected at roughly 0.8m. The detection angle is roughly 60 degrees and the sensor is particularly sensitive to the flame spectrum. Featured By RoboticsBD.

An on-board LM393 op-amp is used as a comparator to adjust the sensitivity level. The sensor has a digital and analog output and sensitivity can be adjusted via the blue potentiometer. Featured By RoboticsBD.

This Flame Sensor Module is used to detect fire/flame source or other light sources of the wavelength in the range of 760nm – 1100 nm. It is based on the YG1006 sensor which is a high speed and high sensitive NPN silicon phototransistor. Due to its black epoxy, the sensor is sensitive to infrared radiation.

The sensor can be a great addition in a firefighting robot, it can be used as a robot eyes to find the fire source. When the sensor detects flame the Signal LED will light up and the D0 pin goes LOW. Featured By RoboticsBD.

The module has 2 outputs: Analogue, which gives a real-time voltage output signal on thermal resistance, and digital which allows temperature thresholds to be set via a potentiometer. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

Note: Product images/ Components brand may vary from actual product as our stock rotates.

Note: PCB might be different from the picture as per stock

Features :

  1. High Photo Sensitivity
  2. Fast Response Time
  3. Sensitivity adjustable
  4. Detects a flame or a light source of a wavelength in the range of 760nm-1100 nm.
  5. Detection range: up to 100 cm.
  6. Adjustable detection range.
  7. Detection angle about 60 degrees, it is sensitive to the flame spectrum.
  8. Comparator chip LM393 makes module readings stable.
  9. Operating voltage 3.3V-5V.
  10. Digital and Analog Output.
  11. Power indicator and digital switch output indicator.

General Specification
Operating Voltage (VDC) 3.3 ~ 5
Spectrum range 760nm ~ 1100nm
Detection Angle(°) 0 to 60
Operating Temperature (°C) -25 to 85
Length (mm) 35.5
Width (mm) 15.2
Height (mm) 14
Weight (gm) 3
Shipment Weight 0.005 kg
Shipment Dimensions 12 × 8 × 2.5 cm

Please allow 5% measuring deviation due to manual measurement.

Documentation:

  1. Arduino Flame Sensor Interface

Package Includes :

1 x Flame Sensor Module

Product Details
RBD-2100
59 Items

Specific References

EAN13
2100
