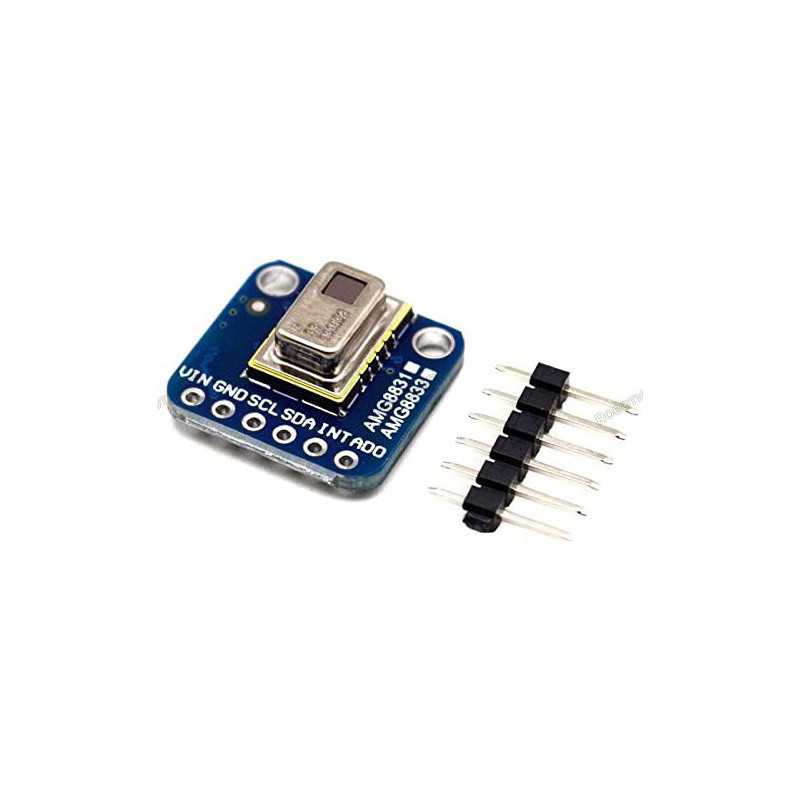

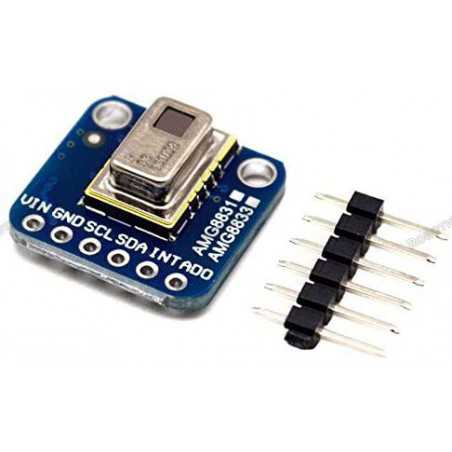

Panasonic Thermal Imaging Camera Sensor

RBD-1352

  • GRID-EYE® INFRARED ARRAY SENSOR
  • Number of pixel 64 (Vertical 8 × Horizontal 8 Matrix)
  • External interface I2C
  • Frame Rate Typical 1fps or 10 fps
  • Operating Mode Normal and Sleep mode
BDT 17,900.00
BDT 17,900.00 BDT 17,900.00 BDT 17,900.00 BDT 17,900.00
Tax included Tax excluded Tax included Tax excluded
BDT 17,900.00 Tax excluded
BDT 17,900.00 Tax included
BDT 0.00 Tax
BDT 17,900.00 Tax excluded
BDT 0.00 Tax
BDT 17,900.00 Tax included
Quantity
Out-of-Stock

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

(Retired) This product has been retired from our catalog and is no longer for sale. This page is made available for those looking for datasheets and the simply curious.

AMG8833 IR 8*8 Thermal Imager Array Temperature Sensor Module is an 8×8 array of IR thermal sensors. When connected to your microcontroller (or Raspberry Pi) it will return an array of 64 individual infrared temperature readings over I2C. It’s like those fancy thermal cameras, but compact and simple enough for easy integration. RoboticsBD

Panasonic's Grid-EYE® is an 8x8, 64 pixel Infrared Array Sensor. The Grid-EYE Sensor offers digital output (I2C) for thermal presence, direction, and temperature values. A built-in lens includes a 60-degree viewing angle and features a compact SMD design using MEMS thermopile technology.

Applications for the Grid-EYE® Sensor include human detection, people counting, thermal mapping, digital signage, security, lighting control, kiosk/ATM, medical imaging, automatic doors, robotics, and much more. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

  1. Home appliances (Microwaves and air-conditioners)
  2. Building automation (People counting, Air conditioning control)
  3. Home automation (People detection)
  4. Factory automation (Fault prevention)

Features:

  1. Temperature detection of two-dimensional area: 8 × 8 (64 pixels)
  2. Digital output (capability of temperature value output)
  3. Compact SMD package (adaptively to reflow mounting)
  4. RoHS compliant

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Number of pixel 64 (Vertical 8 × Horizontal 8 Matrix)
External interface I2C
Frame rate Typical 1 fps or 10 fps
Operating mode Normal and Sleep
Output mode Temperature Output
Calculate mode No moving average or Twice moving average
Temperature output resolution 0.25 ℃ 0.45 ℉
Number of sensor address 2（I2C slave address)）
Thermistor output temperature range −20 ℃ to 80 ℃ –4 ℉ to +176 ℉
Thermistor output resolution 0.0625 ℃ 0.1125 ℉
Shipment Weight 0.005 kg
Shipment Dimensions 4 × 3 × 1 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

  1. Datasheet
  2. Product Page

Package Includes:

1 x Panasonic Thermal Imaging Camera Sensor
