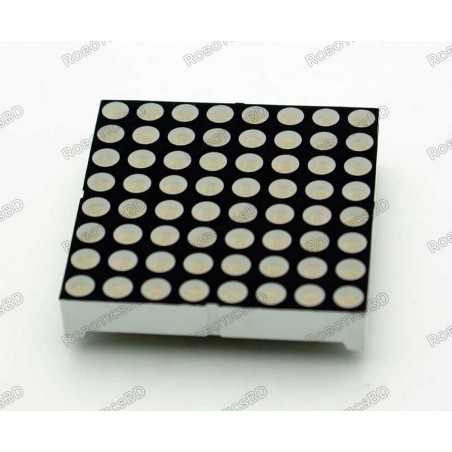

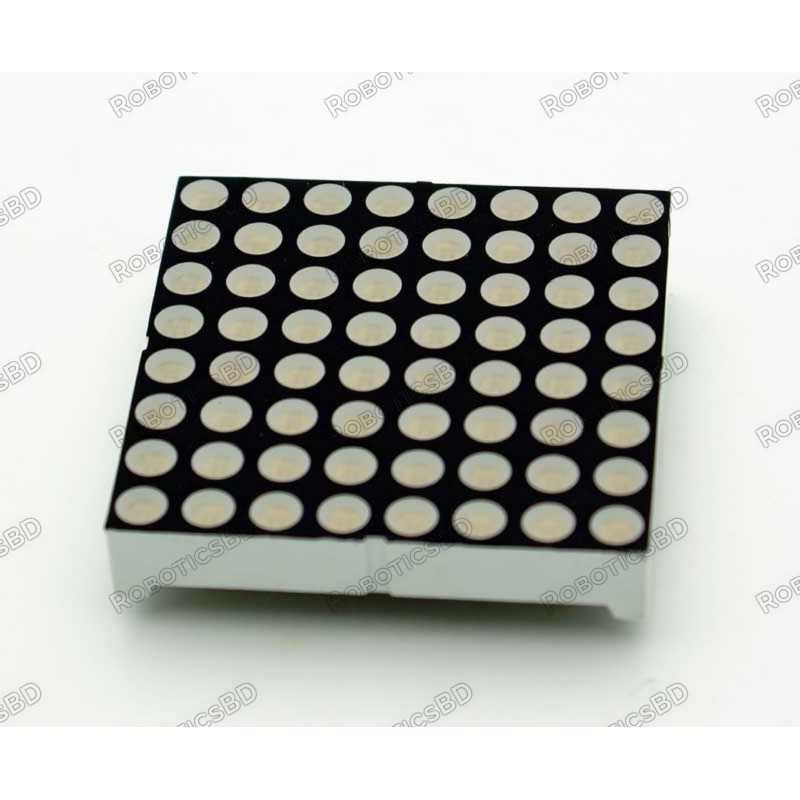

8*8 LED matrix module common anode of LED matrix Robotics Bangladesh
  • 8*8 LED matrix module common anode of LED matrix Robotics Bangladesh

8*8 LED matrix module common anode of LED matrix

RBD-1306

  • Easy to Install on Breadboard.
  • Bright LED lights.
  • Compact Design.
  • LED Size: 3mm.
  • Configuration: Common Anode.
BDT 95.00
BDT 95.00 BDT 95.00 BDT 95.00 BDT 95.00
Tax included Tax excluded Tax included Tax excluded
BDT 95.00 Tax excluded
BDT 95.00 Tax included
BDT 0.00 Tax
BDT 95.00 Tax excluded
BDT 0.00 Tax
BDT 95.00 Tax included
Quantity
In-Stock
78 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

The 8×8 LED matrix module is a very useful and low-cost way to add display in your electronic circuits. It has 16 pins to achieve a different combination to ON/OFF the LEDs. It fits properly into any standard solderless breadboard.. It is a Great display for electrical and test equipment. The diameter of the Led is about 3mm with common Anode configuration which emits Red color.  The Exact dimensions of this module are shown in the Schematic image.

These Displays are always in high demand in the DIY community as well as in  Industrial Projects due to their multipurpose uses and cheap cost.  Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:
  1. Bar-Graph Displays
  2. 7-Segment Displays
  3. Industrial Controllers
  4. Electronic Panel Meters
  5. LED Matrix Displays
  6. PIXEL gaming.
  7. Character design.
  8. Measuring instruments.
  9. Hobby projects.
  10. Display of symbols, simple graphics and texts.

Features:

  1. Easy to Install on Breadboard
  2. Bright LED lights
  3. Compact Design.
  4. LED Size: 3mm
  5. Configuration: Common Anode

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
LED Size 3 mm
Type Common Anode
Emitted Colour Red
Face Color Black
Wavelength 625 ~ 630nm
Forward Voltage 2.1V ~ 2.5V
Forward Current 20mA
Operating Temperature (°C) 40 to 85
Length (mm) 32
Width (mm) 32
Height (mm) 8
Weight (gm) 6 each
Shipment Weight 0.02 kg
Shipment Dimensions 6 × 6 × 2 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes:

1 x 8*8 LED matrix module common anode of LED matrix.
