MAX7219 Red Dot Matrix Module MCU Control Display Module DIY Kit For Arduino
  • MAX7219 Red Dot Matrix Module MCU Control Display Module DIY Kit For Arduino
  • MAX7219 Red Dot Matrix Module MCU Control Display Module DIY Kit For Arduino Robotics Bangladesh

MAX7219 Red Dot Matrix Module MCU Control Display Module DIY Kit For Arduino

RBD-0384

  • Driver Chip: MAX7219
  • Input Voltage: 3.7 to 5.3 V
  • Input Current: 320 mA
  • Display Dimensions: 32x32x6 (LxWxH) mm
  • PCD Dimensions: 50×32 (LxW) mm
  • Soldering is required
BDT 250.00
BDT 250.00 BDT 250.00 BDT 250.00 BDT 250.00
Tax included Tax excluded Tax included Tax excluded
BDT 250.00 Tax excluded
BDT 250.00 Tax included
BDT 0.00 Tax
BDT 250.00 Tax excluded
BDT 0.00 Tax
BDT 250.00 Tax included
Quantity
In-Stock
10 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

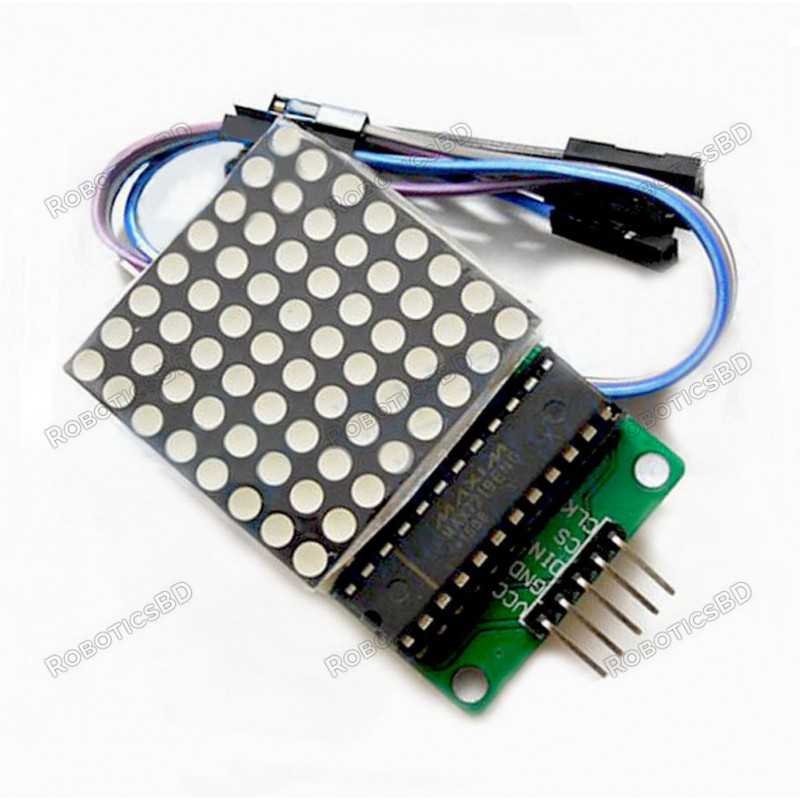

This is Dot Led Matrix Module incorporating MAX7219 Driver chip. By using this dot LED module in your upcoming project,  you will be able to add some great cool animation. RoboticsBD

The individual module features 8×8 LED’s, each controlled very precisely by the MAX7219 driver to generate the color pattern you wish. The great advantage of using this is users will have control over all of the 64 LED by just connecting 3 output communication wires to microcontrollers like Arduino etc. RoboticsBD

Connecting the two modules is also very easy. Only connect the output pins of the previous breakout board to the input pins of the new module, thus with such arrangement, you can connect as many DOT LED Modules to the Arduino as you wish.Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Pin Connection

Dot LED Module to the Arduino

Vcc      –     5V
GND   –    GND
DIN    –    Pin 12
CS       –    Pin 10
CLK    –    Pin 11

Features :

  1. Requires only 3 communication wires of MCU
  2. Cascading multiple Matrix LED Module is very easy
  3. Size of the display is very compact
  4. The PCB features M3 holes for mounting. RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Driver IC MAX7219
Input Voltage (V) 5
Max. Operating Current (mA) 320
LED Color Red
Length (mm) 32
Width (mm) 32
Height (mm) 6
PCB Size ( L x W ) mm 50 x 32
Weight (gm) 20
Shipment Weight 0.022 kg
Shipment Dimensions 7 × 5 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes :

1 x Dot LED Matrix Module

1 x Connecting Wire.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Product Details
RBD-0384
10 Items

Specific References

EAN13
0384
Comments (0)
Grade
No customer reviews for the moment.
