The AC Dimmer is designed to control the alternating current voltage, which can transfer current up to 600V/5А. In most cases, Dimmer is used to turning the power ON/OFF for lamps or heating elements, it can also be used in fans, pumps, air cleaners, e.t.c. RoboticsBD
Lately, Dimmer has become an often-used decision for smart home systems. For example, when you need to smoothly change the light brightness. The lamp is slowly turning ON or OFF, creating a comfortable atmosphere. Dimmer works most effectively with filament lamps. It’s less stable with low brightness dimmable LED lamps, but with moderate and high brightness it will perform a solid job. Note that luminescent lamps (gas discharge lamps) do not support dimming.
The power part of the dimmer is isolated from the control part, to exclude the possibility of high current disruption to a microcontroller. The logical level is tolerant to 5V and 3.3V, therefore it can be connected to the microcontroller with 5V and 3.3V level logic. RoboticsBD
In Arduino, the dimmer is controlled with RBDdimmer.h library, which uses external interrupts and process time interrupts. It simplifies the code writing and gives more processing time for the main code. This is why you can control multiple Dimmers from one microcontroller. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Theory:
Dimming can be achieved by Pulse Skip Modulation:
- Method 1 — One or more cycles (sine wave signal) are transferred to the load, while following one or several cycles are blocked.
- Method 2 — Partial transference of each sine wave to the load.
- Method 3 — Generation of modulated full sine signal of different frequency up to few hundred hertz. This method requires specialized powerful AC generators with different modulation.
- Methods 1 and 2 are the easiest to execute with the help of a Dimmer and program code: in both cases, there is a need of circuit that detects the zero crossing and can control a triac.
Connection Diagram:
ATENTION:
We not recommend to use dimmer with normal LED (Notice: dimmable LED lamp can dimming with RobotDyn AC dimmer), luminescent lamp or any other lamp with built-in brightness regulator!
Features:
- Single-channel AC dimmer Module.
- High-quality BTA16-600B TRIAC
- For indoor and outdoor use.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification |
| Power |
600V - 16A |
| AC frequency |
50/60 Hz |
| TRIAC |
BTA16 - 600B |
| Isolation |
Optocoupler |
| Logic level |
3.3V/5V |
| Zero point |
Logic level |
| Modulation (PWM with trigger) |
logic level ON/OFF TRIAC |
| Signal current |
>10mA |
| Environment: |
For indoor and outdoor use
Operating temperatures: -20°C to 80°C |
| Operating humidity |
Dry environment only |
| ROHS3 |
Compliant |
| Shipment Weight |
0.035 kg |
| Shipment Dimensions |
10 × 6 × 6 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Documentation:
- Dimensional drawing
- Pinout
- Schematic
- Datasheet
---
Package Includes:

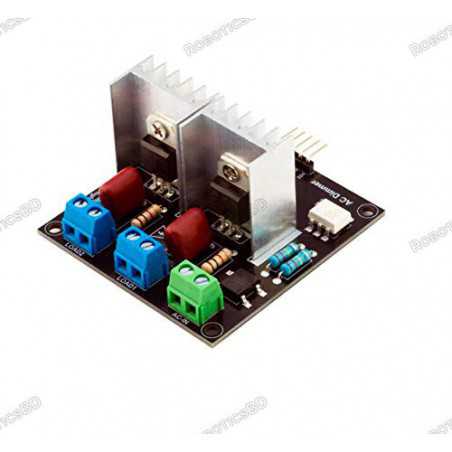

1 x AC Light Dimmer Module, 2 Channel, 3.3V/5V logic, AC 50/60hz, 220V/110V
