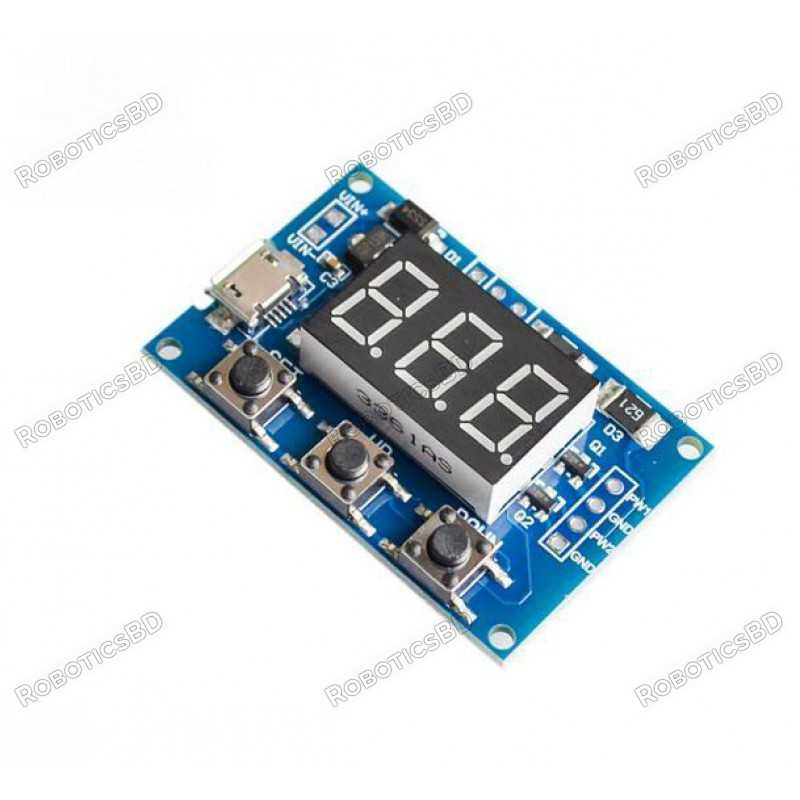

2 Channel PWM Pulse Frequency Adjustable Duty Cycle Square Wave Rectangular Wave Signal Generator Module to generate square wave for experiment development.
This is used to drive stepping motor drivers' square waves, Generate an adjustable pulse for MCU use, and Generate an adjustable pulse for controlling the relative circuit (PWM adjust lightspeed, etc).
Serial Port Control:
- Communication Standard:9600 bps
- Data Bit:8
- Stop Bit:1
- Verify Bit: none
- Flow Control: none
Setting PWM Frequency:
- S1FXXXT: set PWM1 frequency as XXX HZ (001~999)
- S1FXX.XT: set PWM1 frequency as XX.X KHZ (00.1~99.9)
- S1F:X.X.X.T: set PWM1 frequency as XXX KHZ (0.0.1.~1.5.0.)
- S1: PWM1
- S2: PWM2
- F: frequency
- D: duty cycle
- T: stop sign bit
Setting PWM Duty Cycle:
- S1DXXXT:set PWM1 duty cycle as XXX(001~100)
- S2DXXXT:set PWM2 duty cycle as XXX(001~100)
Setting successfully back: DOWN
Setting unsuccessfully back: FALL
Parameter Setting:
- The module has a 3-channel key: Set, Up, Down
- By short press SET key,can shift display 4 parameter values (FR1:PWM1 frequency;dU1:PWM1 duty cycle;FR2:PWM2 frequency;dU2:PWM2 duty cycle);before shifting,there will be corresponding parameter name flashing
- Directly press UP, DOWN key to modify the current parameter value
- 2-channel PWM is set 3 kinds frequency value, in frequency display interface, by long press SET to shift,3 kinds frequencys duty cycle is the same XXX:1Hz~999Hz; XX.X:0.1Khz~99.9Khz; X.X.X.:1Khz~150Khz).
Application Fields:
- As square wave generator to generate square wave for experiment development
- Used to drive steeping motor drivers square wave
- Generate adjustable pulse for MCU using
- Generate adjustable pulse for controlling relative circuit (PWM adjust light speed etc)
Package Includes :
1 x2 Channel PWM Pulse Frequency Adjustable Duty Cycle Square Wave Rectangular Wave Signal Generator Module.
Specifications :-
| Operating Voltage (VDC) |
5 to 30
|
| USB Type |
Micro USB
|
| Frequency Range |
1Hz to 150KHz
|
| Frequency Precision |
2%
|
| Operating Temperature (C) |
-30 to 60
|
| Signal Load Capacity |
Output Current is within 8-30mA
|
| Dimensions in mm (LxWxH) |
44x30x11
|
| Weight (gm) |
8
|
| Shipment Weight |
0.012 kg
|
| Shipment Dimensions |
6 4 3 cm
|
