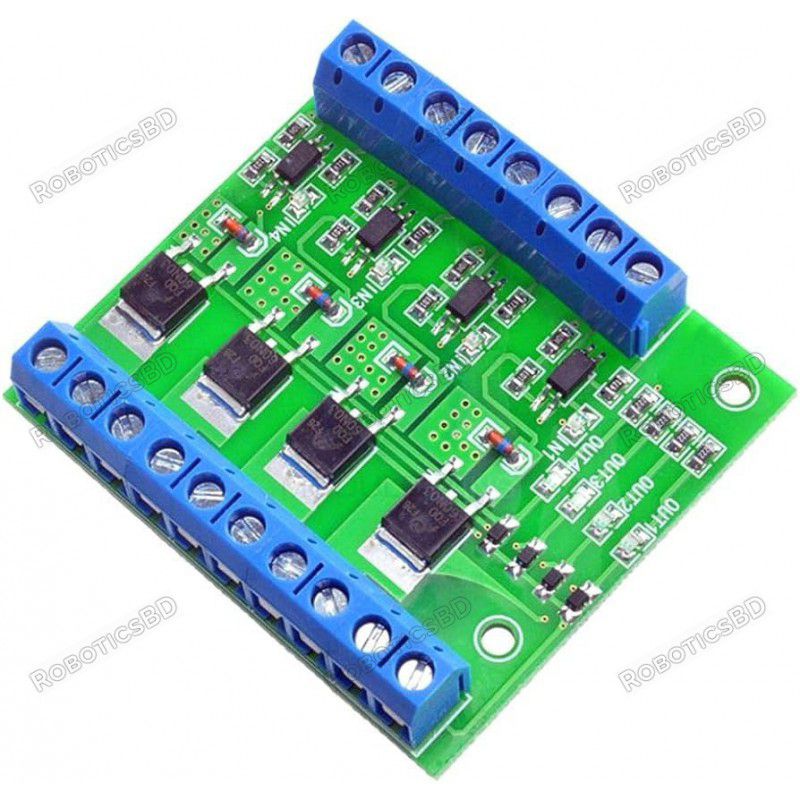

MOSFET F5305S 4 Channel Pulse Trigger Switch Controller

The MOSFET F5305S 4-Channel Pulse Trigger Switch Controller is a versatile and robust module designed for controlling high-power devices through PWM input. This controller is perfect for managing the speed of motors, adjusting the brightness of light bulbs, and other applications requiring precise control. Based on the reliable F5305S MOSFET model, this module ensures isolated input and output, making it safe and efficient for a variety of projects.

Ideal for DIY electronics enthusiasts, this module can be easily integrated with microcontrollers, PLC interfaces, and DC power supplies, providing a wide range of control options. Whether you're working on a motor control project or building a custom lighting setup, this 4-way trigger switch controller offers flexibility and reliability.

Features

• FET Module: Ensures complete isolation between input and output, enhancing safety and stability.
• Signal Trigger: Accepts digital high/low signals, compatible with microcontroller IO, PLC interfaces, and DC power supplies.
• High-Power Control: Capable of managing high-power devices such as motors, light bulbs, LED lights & strips, small pumps, and solenoid valves.
• Wide Input Signal Voltage Range: 3V to 20V, with an input current of about 5mA.
• High Output Voltage Range: 5V to 36V, capable of handling currents within 5A. For currents exceeding 5A, a heat sink is recommended.

Specifications

• Input Signal:
• Voltage: 3V ~ 20V
• Current: 5mA
• Output:
• Voltage: 5V ~ 36V
• Current: Within 5A (Max. current is 20A with heat sink)

1 x Trigger Switch Module

This high-quality, steady performance 4-channel trigger switch controller is ideal for both beginners and advanced users looking to enhance their electronic projects. Whether you're controlling motors or LED lights, this module provides precise and reliable operation.
