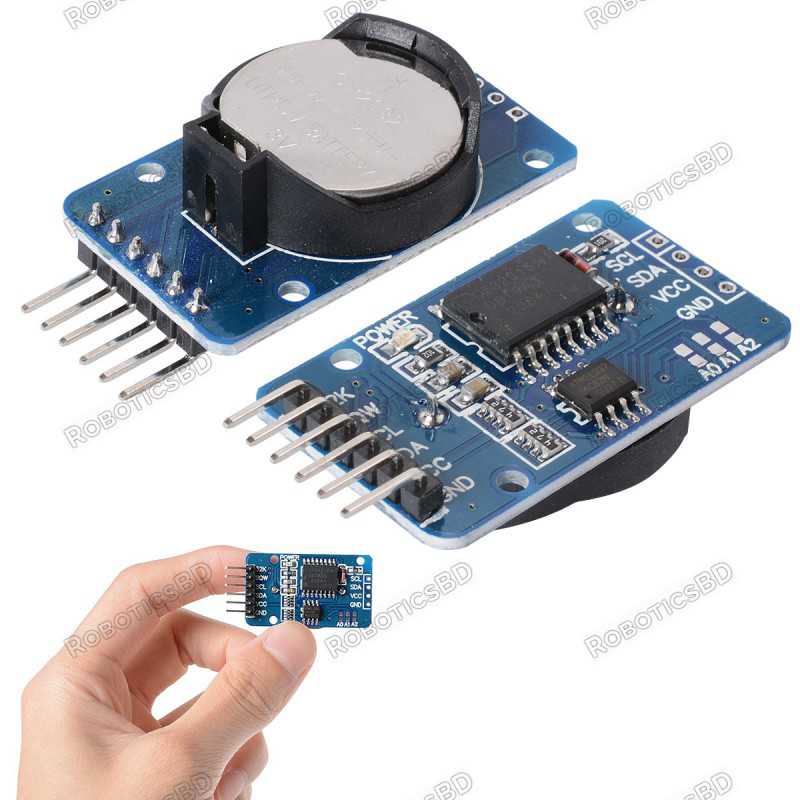

Precision Real Time Clock Module DS3231 AT24C32 I2C
  • Precision Real Time Clock Module DS3231 AT24C32 I2C

Precision Real Time Clock Module DS3231 AT24C32 I2C

RBD-0386

  • 1 Hz output pin SQW.
  • 32 KHz output pin 32K. RoboticsBD
  • Voltage Supply: 2.2 V ~ 5.5 V (for RTC).
  • Time Format: HH: MM: SS (12/24 hr).
  • Date Format: YY-MM-DD-dd.
  • DS 3231 based RTC with 2032 Battery Holder. RoboticsBD
  • Battery is not included

Note: Batteries not included.

BDT 260.00
BDT 260.00 BDT 260.00 BDT 260.00 BDT 260.00
Tax included Tax excluded Tax included Tax excluded
BDT 260.00 Tax excluded
BDT 260.00 Tax included
BDT 0.00 Tax
BDT 260.00 Tax excluded
BDT 0.00 Tax
BDT 260.00 Tax included
Quantity
In-Stock
121 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

DS3231 RTC  is a Precise Real-Time Clock Module with 32Kbit EEPROM and a built-in 10-bit temperature sensor having a resolution of 0.25C.

The DS3231 RTC module Precise Real-Time Clock Module is a low-cost, extremely accurate I²C real-time clock (RTC) with an integrated temperature-compensated crystal oscillator (TCXO) and crystal. The device incorporates a battery input and maintains accurate timekeeping when the main power to the device is interrupted. RoboticsBD

The integration of the crystal resonator enhances the long-term accuracy of the device as well as reduces the piece-part count in a manufacturing line. The ds3231 Arduino is available in commercial and industrial temperature ranges and is offered in a 16-pin, 300-mil SO package.  Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

  1. Two Time-of-Day Alarms.
  2. Digital Temp Sensor Output.
  3. Register for Aging Trim.
  4. DS 3231 RTC with 2032 Battery Holder.
  5. Highly Accurate RTC Completely Manages All Timekeeping Functions.
  6. Real-Time Clock Counts Seconds, Minutes, Hours, Date of the Month, Month, Day of the Week, and Year, with Leap-Year Compensation Valid Up to 2100.
  7. Configurable I2C device Address for AT24C32 using SMD jumpers on PCB (A0, A1, A2).
  8. Programmable Square-Wave Output Signal.
  9. Battery-Backup Input for Continuous Timekeeping.
  10. Low Power Operation Extends Battery-Backup Run Time. RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Operating Voltage (VDC) 2.7 ~ 5.5
Voltage Supply for RTC 2.2 V ~ 5.5 V
Accuracy ±2ppm from 0°C to +40°C.
±3.5ppm from -40°C to +85°C.
Battery Holder 2032 Coin Battery.
I2C interface Fast (400kHz) I2C Interface.
EEPROM AT24C32 32Kbit Serial I2C.
Time and Date Format Time: HH: MM: SS (12/24 hr).
Date Format: YY-MM-DD-dd.
Operating Temperature Range (°C) -40 to 85
Digital Temp Sensor Output 10 bit, ±3°C Accuracy and 0.25C resolution.
Dimensions in mm (LxWxH) 38 x 22 x 14
Weight(gm) 8
Shipment Weight 0.012 kg
Shipment Dimensions 12 × 8 × 5 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes :

1 x Precision Real Time Clock Module DS3231 AT24C32 I2C

(Battery not Included)

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
