DS1302 is DALLAS company launched a trickle charge clock chip, containing a real-time clock/calendar and 31 bytes of static RAM, communicating through serial interface simple and single-chip microcomputer. The real-time clock/calendar circuit provides seconds, hours, days, weeks, months, years of information, a number of days in the month and leap year can automatically adjust. The clock operation instructions through the AM/PM decided to use 24 or 12-hour format.
Between DS1302 and single-chip microcomputer can simply use synchronous serial communication method, only three lines:
(1) RST
(2) I/O reset the data line
(3) SCLK serial clock.
Clock /RAM read/write data to a byte character set or as many as 31-byte communication. DS1302 work power consumption is very low to keep the data and clock information when power is less than 1mW

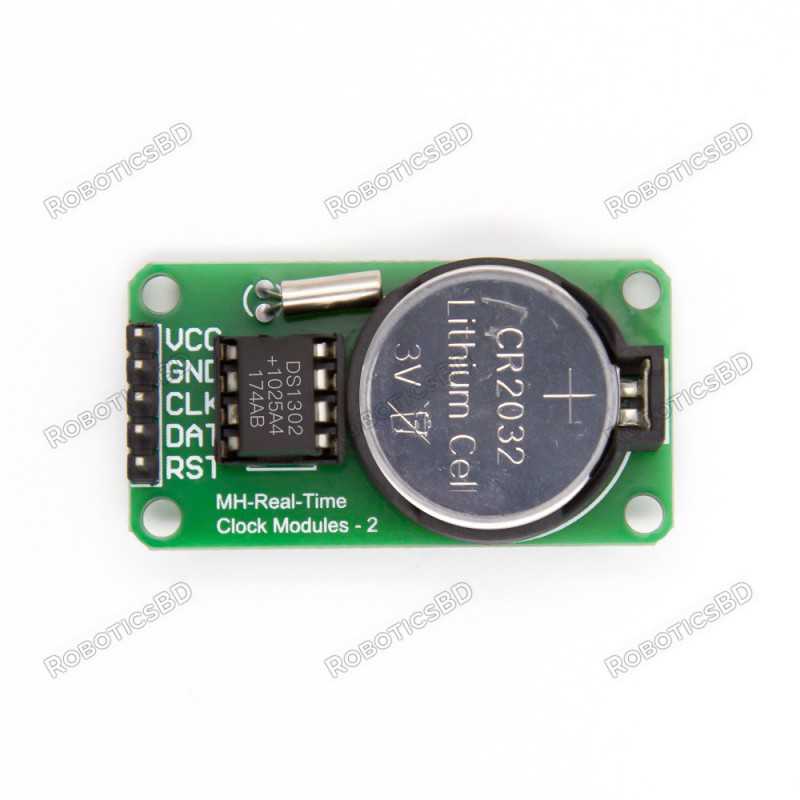

Pin Description:
VCC:+5V/3.3V
GND: GND
CLK: P02
DAT: P01
RST: P00
The DS1302 is an accurate clock module which contains a real-time clock/calendar and 31 bytes of static RAM. Communication with the host microcontroller is through the serial I2C interface. The unit provides seconds, minutes, hours, days, weeks, months, and year information. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
- The real-time clock counts minutes, seconds, date, hours, month day of the week, year and leap-year compensation up to 2100.
- 318 temporary data storage RAM
- Working current of 2.0V, less than 300nA
- Read / Write clock or RAM data with two kinds of mode of single-byte transfer mode and multi-byte character set
- 8 pin DIP package or optional 8 pin SOIC package based on the surface assembly
- Simple 3 wire interface
- Compatible with TTL VCC=5V
- Double power supply pipe for main power and backup power supply.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification |
| Input Supply Voltage (VDC) |
3.3 |
| Operating Voltage (VDC) |
2V ~ 5.5 |
| Operating Temperature (°C) |
-40 to 85 |
| Storage condition (℃) |
-55 to 125 |
| Length (mm) |
43 |
| Width (mm) |
23 |
| Height (mm) |
13 |
| Weight (gm) |
9 |
| Shipment Weight |
0.014 kg |
| Shipment Dimensions |
6 × 3 × 2 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Documentation:
- Arduino DS1302 Real Time Clock
- Using the Real-Time Clock module on Raspberry Pi
Package Includes:
1 x DS1302 RTC Real Time Clock Module
