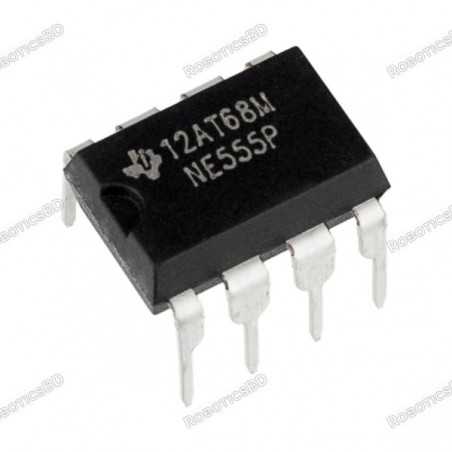

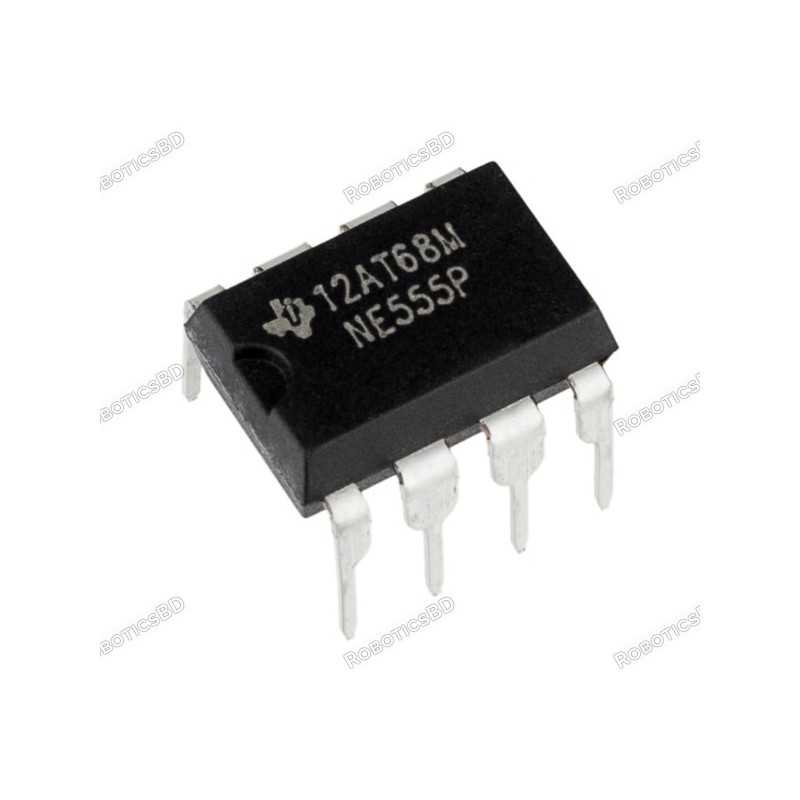

NE-555 Timer

RBD-1010

  • Timing from microseconds to hours
  • A stable or monostable operation
  • Adjustable duty cycle
  • TTL compatible output can sink or source up to 200mA
BDT 14.00
BDT 14.00 BDT 14.00 BDT 14.00 BDT 14.00
Tax included Tax excluded Tax included Tax excluded
BDT 14.00 Tax excluded
BDT 14.00 Tax included
BDT 0.00 Tax
BDT 14.00 Tax excluded
BDT 0.00 Tax
BDT 14.00 Tax included
Quantity
In-Stock
272 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

The NE-555 timer IC is a widely used integrated circuit that generates accurate time delays or oscillations. It was designed to provide an affordable, stable and versatile timer solution. It operates in both astable and monostable mode, making it useful in a variety of applications such as timer circuits, oscillators, flip-flops and many more. The NE-555 timer is a bipolar 8-pin integrated circuit and requires a few external components to configure it for specific applications. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

  1. Timing from microseconds to hours
  2. A stable or monostable operation
  3. Adjustable duty cycle
  4. TTL compatible output can sink or source up to 200mA
  5. Applications: Clock & Timing, Consumer Electronics, Aerospace, Defense, Military, Embedded Design & Development

Project with NE-555 timer IC

  1. Flashing LED Circuit with NE-555 Timer
  2. Simple Timer Circuit with NE-555 and Potentiometer
  3. NE-555 Timer Based Bell/Alarm Circuit
  4. Rain Alarm Circuit using NE-555 Timer
  5. NE-555 Timer Based Police Siren Circuit
  6. NE-555 Timer Based Thermometer Circuit
  7. NE-555 Timer Controlled DC Motor Speed Regulation.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Package/Case PDIP-8
Minimum Supply Voltage (V) 4.5
Maximum Supply Voltage (V) 16
Product Type Timers & Support Products
Product Series NE555
No. of Timers/Counters 1
Operating Temperature Range (°C) 0 to 70
Dimensions (mm) LxWxH 9.81 x 4.57 x 6.35
Mounting Type Through Hole
Shipment Weight 0.005 kg
Shipment Dimensions 3 × 3 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes:

1 x NE-555 timer

Product Details
RBD-1010
272 Items

Specific References

EAN13
1010
