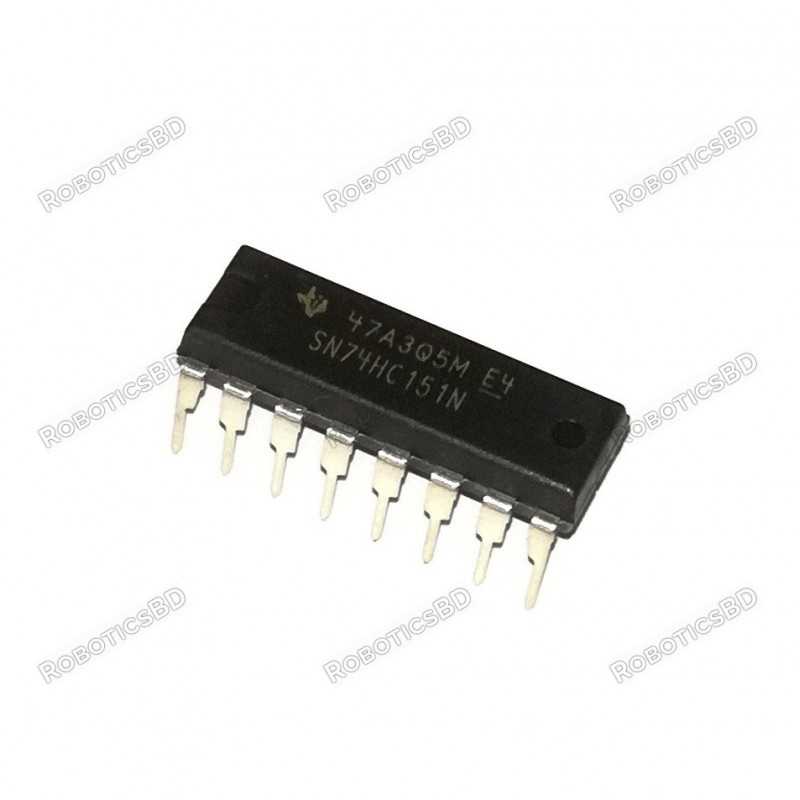

74151 data selectors/mux

RBD-1274

  • IC Name: 74HC151
  • Package/Case: DIP-16
BDT 35.00
BDT 35.00 BDT 35.00 BDT 35.00 BDT 35.00
Tax included Tax excluded Tax included Tax excluded
BDT 35.00 Tax excluded
BDT 35.00 Tax included
BDT 0.00 Tax
BDT 35.00 Tax excluded
BDT 0.00 Tax
BDT 35.00 Tax included
Quantity
In-Stock
59 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

This Data Selector/Multiplexer contains full on-chip decoding to select one-of-eight data sources as a result of a unique three-bit binary code at the Select inputs. Two complementary outputs provide both inverting and non-inverting buffer operation. A Strobe input is provided which, when at the high level, disables all data inputs and forces the Y output to the low state and the W output to the high state. The Select input buffers incorporate internal overlap features to ensure that select input changes do not cause invalid output transients. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

  1. Advanced oxide-isolated, ion-implanted Schottky TTL process
  2. Switching performance is guaranteed over full temperature and VCC supply range
  3. Pin and functional compatible with LS family counterpart
  4. Improved output transient handling capability
  5. Selects one-of-eight data lines
  6. Performs parallel-to-serial conversion
  7. Permits multiplexing from N lines to one lines
  8. Also for use as Boolean function generator

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Typical average propagation delay time, data input to W output:  9 ns
Typical power dissipation:  135 mW
Supply Voltage 7V
Input Voltage 5.5V
Operating Free Air Temperature Range 0˚C to +70˚C
Storage Temperature Range −65˚C to +150˚C
Shipment Weight 0.005 kg
Shipment Dimensions 3 × 3 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

  1. Datasheet

Package Includes:

1 x 74151 data selectors/mux
