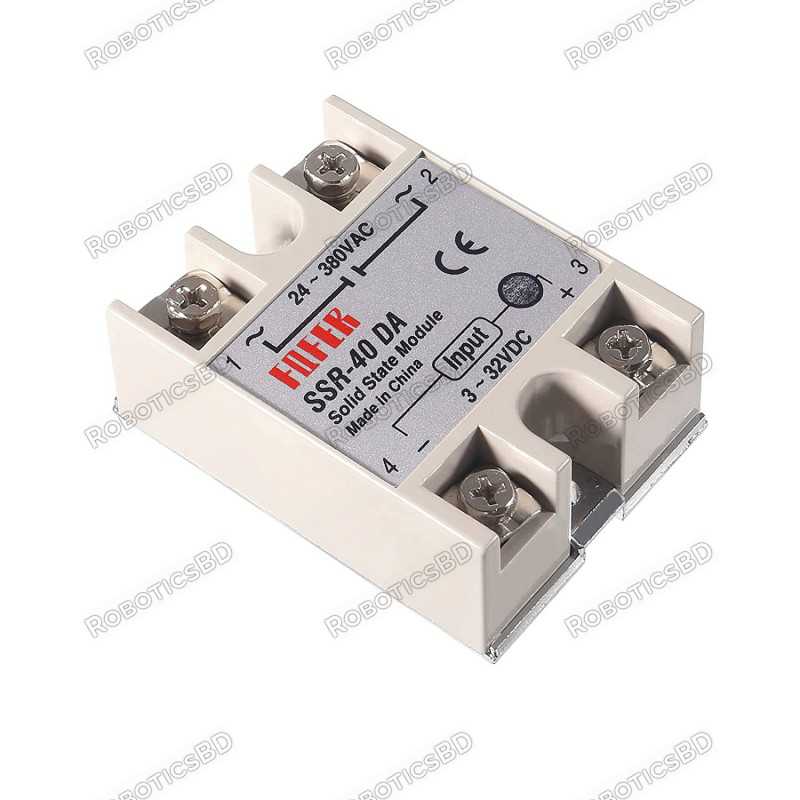

SSR-40DA Solid State Relay Module

RBD-1597

  • Long Service life and high Reliability
  • Reduced Electromagnetic Interference
  • Highly reliable, compact size designed to offer users maximum simplicity
  • Trigger Voltage: 3-32VDC
  • Switching Voltage: 24-380VAC@40A
BDT 849.00
BDT 849.00 BDT 849.00 BDT 849.00 BDT 849.00
Tax included Tax excluded Tax included Tax excluded
BDT 849.00 Tax excluded
BDT 849.00 Tax included
BDT 0.00 Tax
BDT 849.00 Tax excluded
BDT 0.00 Tax
BDT 849.00 Tax included
Quantity
In-Stock
37 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

This is SSR-40DA Solid State Relay Module 3-32VDC/24-380VAC 40A. A solid state relay (SSR) allows you to control high-current AC loads from lower voltage DC control circuitry. Solid state relays have several advantages over mechanical relays. RoboticsBD

One such advantage is that they can be switched by a much lower voltage and at a much lower current than most mechanical relays. Also, because there are no moving contacts, solid state relays can be switched much faster and for much longer periods without wearing out. RoboticsBD

This particular SSR can switch current loads of up to 40A with a 3-32V DC input and a zero cross trigger control method. Each one of these relays is equipped with four screw terminals (for use with ring or fork connectors) and a plastic cover that slides over the top of the relay to protect the terminals.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features :

  1. Long service life and high reliability
  2. Reduced electromagnetic interference
  3. Highly reliable, compact size designed to offer users maximum simplicity.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Advantages :

  1. High Dielectric strength over 4KV
  2. High Isolation strength over 100MΩ/500VDC
  3. With over heat protection Circuit (120°C)
  4. High surge current sustenance
  5. High surge voltage sustenance
  6. Conformity with EN60947-4-3 and EN60950

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Model SSR-40DA
Dielectric Strength Over 2.5kVA / 1 min
Trigger Voltage (VDC) 3-32
Switching Voltage (VAC) 24-380@40A
Operating Temperature Range (°C) -20 to 85
Material ABS
Length (mm) 45.5
Width (mm) 62.5
Height (mm) 24
Weight (gm) 95
Shipment Weight 0.1 kg
Shipment Dimensions 7 × 6 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

  1. Datasheet

Package includes :

1 x SSR-40DA Solid State Relay Module
