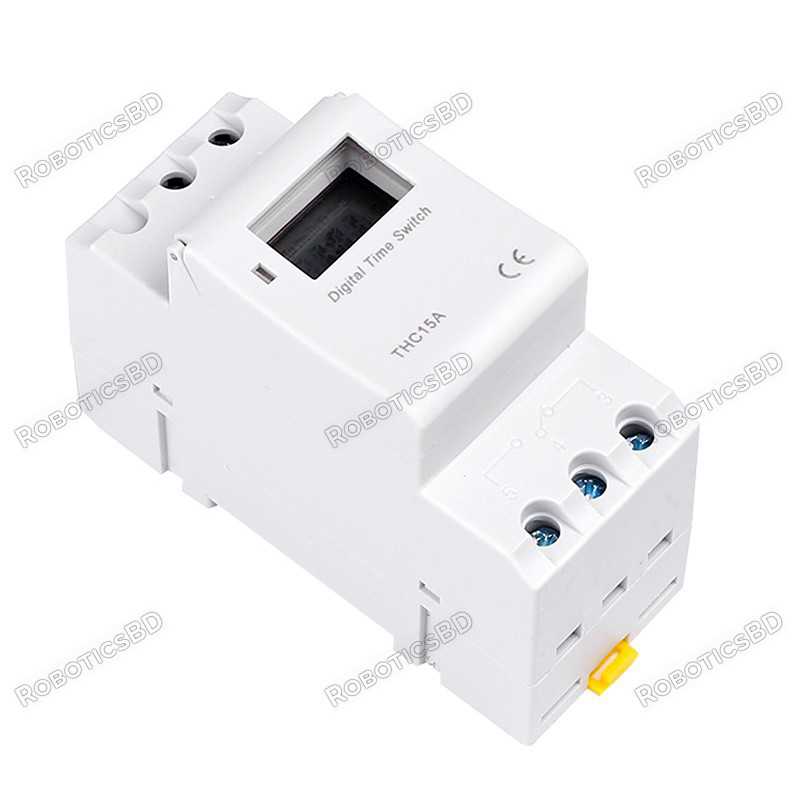

Programmable Timer Relay Control Weekly THC15A

RBD-2204

  • The THC15A Electronic Digital Timer Switch is a relay control device that can be used to switch on and off electrical devices at preset times.
  • It can work with a wide range of voltage inputs, including 220V, 12V, 24V, and 110V, making it versatile and adaptable to different systems and devices.
  • It features an easy-to-use digital interface and a wide range of timer settings, making it simple to set and program the switch to suit the user's needs.
BDT 1,050.00
BDT 1,050.00 BDT 1,050.00 BDT 1,050.00 BDT 1,050.00
Tax included Tax excluded Tax included Tax excluded
BDT 1,050.00 Tax excluded
BDT 1,050.00 Tax included
BDT 0.00 Tax
BDT 1,050.00 Tax excluded
BDT 0.00 Tax
BDT 1,050.00 Tax included
Quantity
Out-of-Stock

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

The THC15A Electronic Digital Timer Switch is a versatile and reliable relay control device that can be installed on DIN rail and has a wide range of voltage inputs. It has advanced pre-setting feature for one week in advance and offers a digital electronics general purpose time switch with daily and programs. It allows repeat programs with 16 on/off settings, 18 times pulse programs, and setting on/off manually. It also has a lithium battery power reserve feature which activate when the power supply is cut off and it also has auto time error correction +/- 30 sec, weekly. This timer switch is suitable for various applications such as automatic lighting control, HVAC control, industrial automation, agricultural automation and backup power control.. Featured By RoboticsBD.

Note: Product images/ Components brand may vary from actual product as our stock rotates.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

  1. DIN RAIL Installation
  2. Advanced pre-setting one week before.
  3. Digital electronics general purpose time switch with daily and programs.
  4. Repeat programs with 16 on/off settings, 18 times pulse programs, and setting on/off manually
  5. Lithium battery power reserve when power supply is cut off.
  6. Auto time error correction +/- 30 sec, weekly

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

  1. Automatic lighting control: The THC15A Electronic Digital Timer Switch can be used to automatically control lighting in commercial and residential buildings, turning lights on and off at preset times to save energy and improve security.

  2. HVAC control: The switch can be used to control heating, ventilation, and air conditioning systems in buildings, automatically turning them on and off at preset times to conserve energy and improve comfort.

  3. Industrial automation: The switch can be used in industrial settings to control various types of machinery and equipment, automatically turning them on and off at preset times to improve efficiency and reduce costs.

  4. Agricultural automation: The switch can be used in agricultural settings to control irrigation systems and other farm equipment, automatically turning them on and off at preset times to improve efficiency and reduce costs.

  5. Backup power control: The switch's lithium battery power reserve feature can be used to automatically switch on backup power systems in case of a power outage, ensuring continuity of operation in critical systems.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Voltage rating AC 220V 50/60 hz DC 12V, DC 24V, AC110V, AC380V, AC/DC 24V -240V
Voltage limit 10%
Hysteresis 2sec/day
On/Off Operation 16 on & 16 off, 18 times pulse
Power consumption 7.5 VA(max)
Display LCD
Service Life Mechanical and Electrical 10years
Minimum interval 1 minute
Weight 140g
Shipment Weight 0.143 kg
Shipment Dimensions 18 × 8 × 5 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Operating Instruction

Operating Instruction are given inside the manual.

Package Includes:

1 x Programmable Timer Relay Control Weekly THC15A
