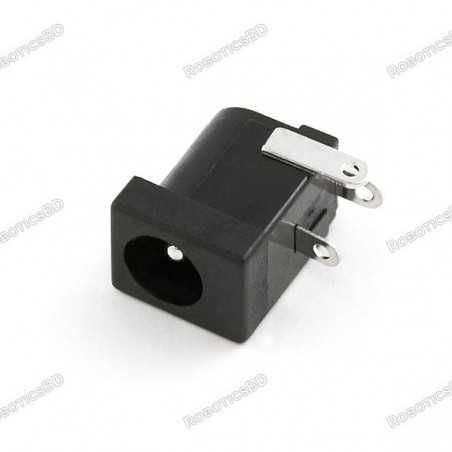

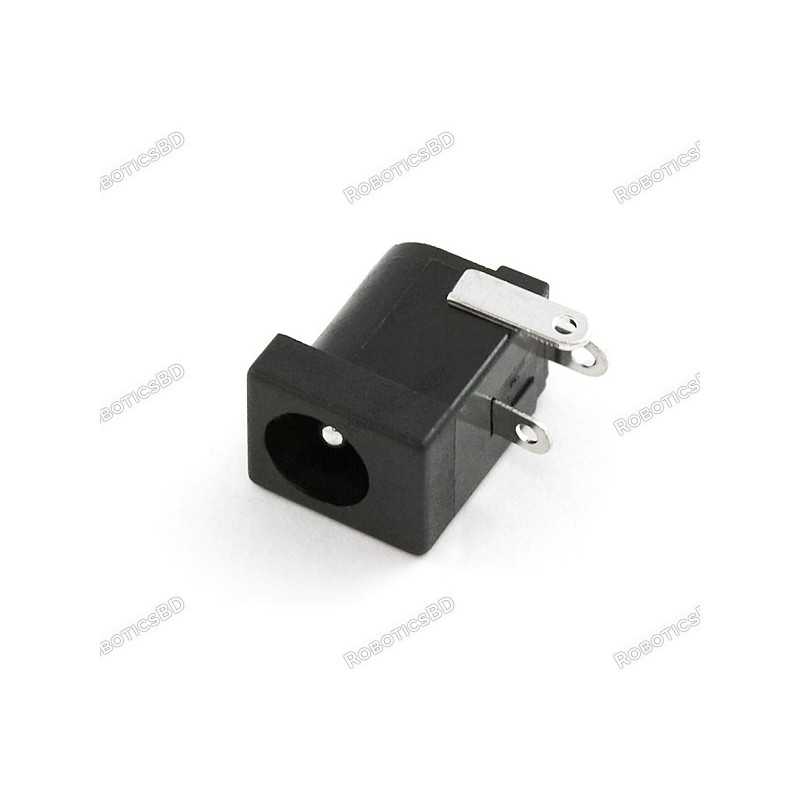

DC PCB Mount Female Plug Socket 2.1mm

RBD-0754

  • Plug Type: 5.5 x 2.1mm
  • Pin: 3
  • Temperature: -30°C ~ +70°C.
  • Rated load: up to DC 30V / 1.0A.
  • Contact resistance: ≤0.03.
  • Insulation resistance: ≥100 MΩ.
BDT 10.00
BDT 10.00 BDT 10.00 BDT 10.00 BDT 10.00
Tax included Tax excluded Tax included Tax excluded
BDT 10.00 Tax excluded
BDT 10.00 Tax included
BDT 0.00 Tax
BDT 10.00 Tax excluded
BDT 0.00 Tax
BDT 10.00 Tax included
Quantity
In-Stock
177 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

DC-005 Female DC Power Jack Supply Socket 5.5×2.1mm is a good quality power connector compatible with all 5.5 male power jack from different sources.

It is 2.1×5.5mm PCB mountable jack widely used in DIY hobby projects as well as in many robotics application for DC supply voltage connection up to 30 V.

Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

  1. Temperature: -30°C ~ +70°C.
  2. Rated load: up to DC 30V / 1.0A.
  3. Withstand voltage: AC 500V (50Hz)/min.
  4. Actuating force: 3N – 20N.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Plug Type 5.5 x 2.1 mm
No. of Pin 3
Operating Temperature (℃) -30 ~ +70
Rated load DC 30V / 1.0A
Contact resistance ≤0.03
Insulation Resistance (MΩ) ≥100
Center Pole Diameter (mm ) 2.1
Compatible with 5.5 mm jack
Shipment Weight 0.005 kg
Shipment Dimensions 3 × 3 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes:

1 x DC barrel jack.
