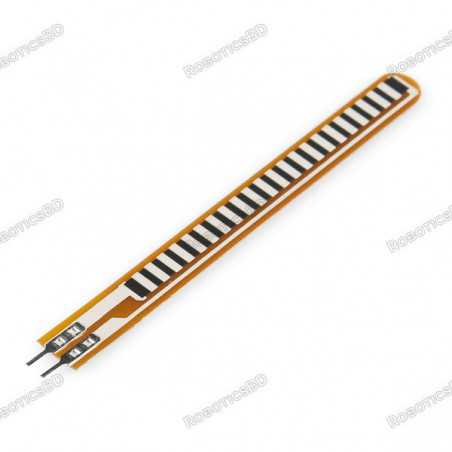

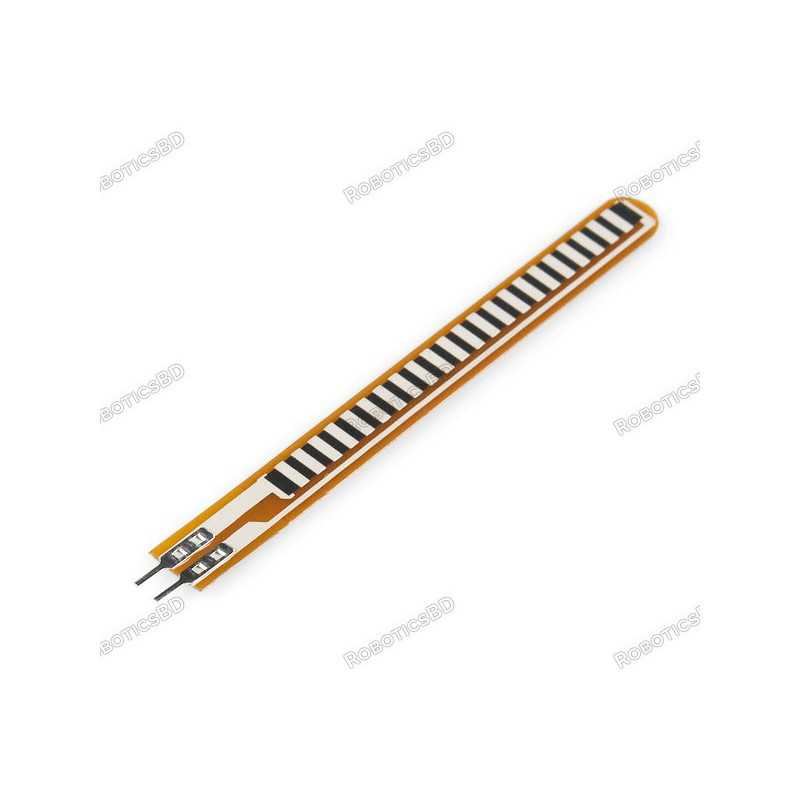

Flex Sensor 2.2"

RBD-0169

  • Flex length: 5.6 cm.
  • Total Length: 2.2″ (7 cm).
  • Life Cycle : >1 million.
  • Height : 0.43mm (0.017″),
  • Flat Resistance: 10K Ohms ±30%.
  • Power Rating: 0.5 Watts.
BDT 1,250.00
BDT 1,250.00 BDT 1,250.00 BDT 1,250.00 BDT 1,250.00
Tax included Tax excluded Tax included Tax excluded
BDT 1,250.00 Tax excluded
BDT 1,250.00 Tax included
BDT 0.00 Tax
BDT 1,250.00 Tax excluded
BDT 0.00 Tax
BDT 1,250.00 Tax included
Quantity
In-Stock
9 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

A simple Flex Sensor 2.2″ – Bend Sensor with a length of 2.2″ which bends and flexes with a physical device. As the sensor is flex, the resistance across the sensor increases. A connector is 0.1″ spaced and breadboard friendly. Applications in – Robotics, Gaming (Virtual Motion), Medical Devices, Computer Peripherals, Musical Instruments, Physical Therapy.

The flex sensor is a bend detecting sensor that has got numerous applications in robotics, medical and haptic technology. The resistance of these sensors changes in accordance with the bend, which can be measured using any microcontroller.
Note: The base of the sensor is sensitive to bending and may get damaged. Make sure that you bend only the sensing area.Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:
  1. Angle Displacement Measurement.
  2. Bends and Flexes physically with the motion device.
  3. Robotics Applications.
  4. Gaming (Virtual Motion).
  5. Medical Devices.
  6. Computer Peripherals.
  7. Musical Instruments.
  8. Physical Therapy.

Features:

  1. Angle Displacement Measurement.
  2. Bends and Flexes physically with the motion device.
  3. Simple Construction.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Flex length(mm) 2.2" (56)
Total Length (cm) 7
Life Cycle >1 million
Height 0.43mm (0.017")
Flat Resistance 10K Ohms ±30%
Bend Resistance minimum 20K Ohms ±30% (@ 180° pinch bend)
Power Rating 0.5 Watts continuous; 1 Watt Peak.
Shipment Weight 0.002 kg
Shipment Dimensions 3 × 2 × 1 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes:

1 x Flex Sensor 2.2"

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Product Details
RBD-0169
9 Items

Specific References

EAN13
0169
