12V 500RPM 25GA Gear Motor Robotics Bangladesh
  • 12V 500RPM 25GA Gear Motor Robotics Bangladesh

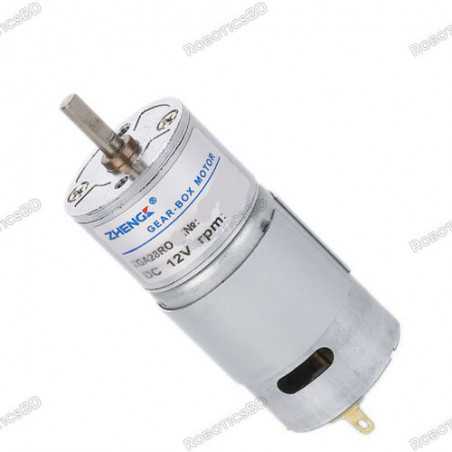

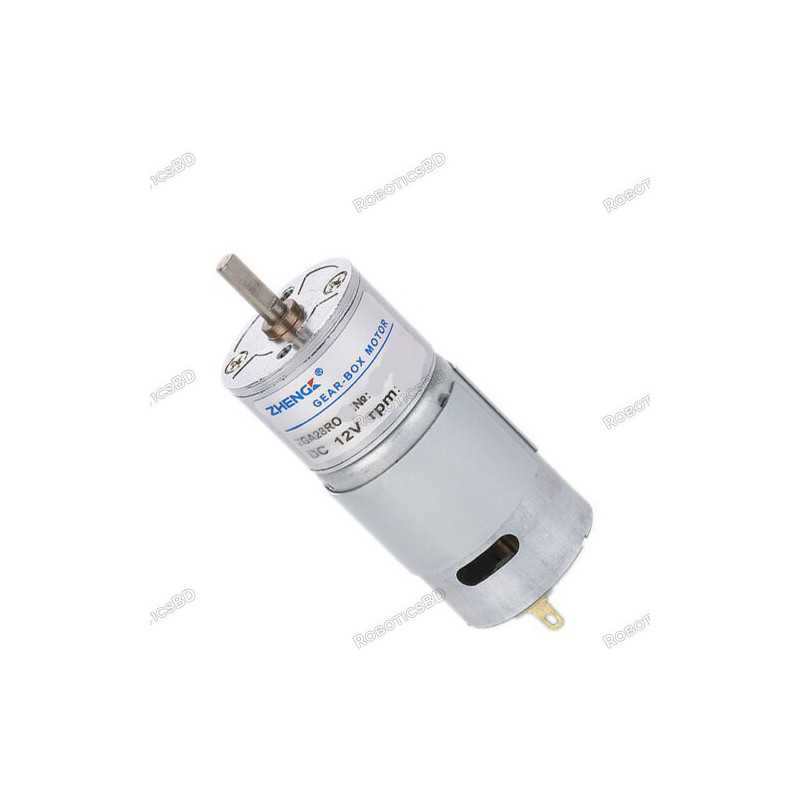

12V 500RPM 25GA Gear Motor

RBD-1880

  • Voltage: 12V DC
  • RPM:500RPM
  • Diameter: 25mm
  • Low Noise
  • Shaft equips metal bushes for long life.
  • Metal Gears for High performance
  • It comes with High-Quality gears.
  • High torque at very low Current Consumptions
BDT 850.00
BDT 850.00 BDT 850.00 BDT 850.00 BDT 850.00
Tax included Tax excluded Tax included Tax excluded
BDT 850.00 Tax excluded
BDT 850.00 Tax included
BDT 0.00 Tax
BDT 850.00 Tax excluded
BDT 0.00 Tax
BDT 850.00 Tax included
Quantity
Out-of-Stock

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

This easy-to-mount ZGA25RP14.68 Gear motor is great for building robots and it comes in a variety of configurations that suit even the most exigent designs. The motor comes in a Small cylinder shape with a diameter of 25 mm and a 4mm diameter shaft and 2 Terminal connectors.

These motors are designed to produce high torque at very low current consumption. It is a Great replacement for the rusty or damaged DC geared speed reduce motor on the machine. Benefiting from high torque and low noise, this motor is solidly constructed and ready to install in numerous applications

This is a 12V DC motor that has a gearbox of 25mm diameter same as the motor base body. The 25GA Gear Motor’s gearbox has metal gears and a center shaft. The D-Shape Shaft of the motor is loaded with a Metal bush for wear resistance and smooth operation.

We highly suggest you this motor for the general-purpose automation projects requiring considerable torque range. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

  1. It has a sturdy construction.
  2. Low Noise
  3. Shaft equips metal bushes for long life.
  4. Metal Gears for High performance
  5. It comes with High-Quality gears.
  6. High torque at very low Current Consumption

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Gear Material Metal
Rated Speed (RPM) 500
Operating Voltage (VDC) 12
Rated Torque(kg-cm) 0.5
Stall Torque(Kg-Cm) 2
Load Current Max (mA) 300
No-Load Current (mA) 85
Motor Diameter(mm) 28
Motor Length (mm) 58
Shaft Diameter (mm) 4
Shaft Length (mm) 12
Weight (gm) 89
Shipment Weight 0.082 kg
Shipment Dimensions 7 × 3 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes:

1 x 12V 500RPM 25GA ZGA25RP14.68

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Product Details
RBD-1880

Specific References

EAN13
1880
