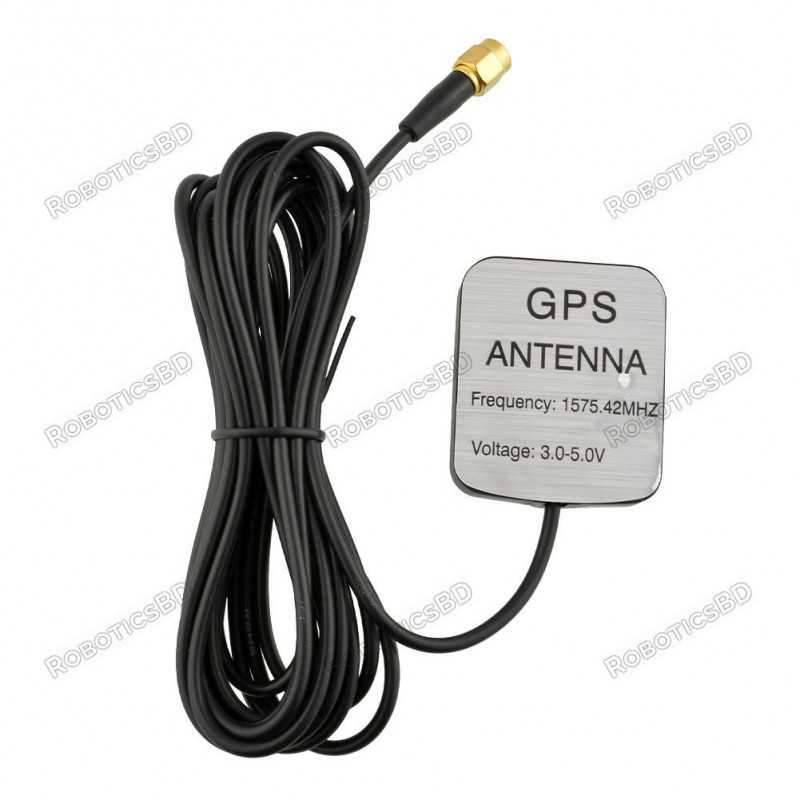

This GPS/GLONASS GNSS Antenna is designed for applications that require high positioning accuracy by combining signals from GPS, GLONASS, systems. The tiny size of this antenna allows it to be used in very space-restricted environments. With 3-meter long cable, one can use this antenna to enhance the GPS Signals in an indoor project with GPS and GSM modules as well as Raspberry PiHat and Arduino Shield. The Antenna has a flat magnetic surface to keep it steady at one place temporarily, or it can permanently stick to any surface with help of Double Sided Tape. RoboticsBD
A high gain wide-band patch antenna on an integral ground delivers reliable performance. A fully IP67 waterproof rated and UV resistant enclosure allows use in outdoor environments. Mid SAW filter configuration eliminates potential. LNA burn-out from nearby out of band radiated power bursts from other antennas that may be co-located nearby. The antenna is manufactured to strict first-tier Automotive-quality controlled the manufacturing process. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
General Specification | |
Operating Frequency | 1575 ± 5 Mhz |
LNA gain(without cable) | > 28 dBi (with LNA) |
Typical noise figure | 1.5dB |
Operating Voltage (VDC) | 3 ~ 5 |
Operating Current | 15mA |
Max.GSM Working Frequency | 824-894/1710-1880 MHz |
VAWR | 2:1 |
Impendence | 50 Ohms |
Peak gain | 2dBi at 900mhz,2dBi at 1800mhz |
Azimuth | Omni-directional polarization, linear polarization |
Connector | Male SMA |
Color | Black |
Cable Length (Meter) | 3 |
Cable Size (AWG) | 18 |
Weight (gm) | 80 |
Shipment Weight | 0.3 kg |
Shipment Dimensions | 12 × 8 × 4 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
1 x GPS Antenna 1575.42 MHz
