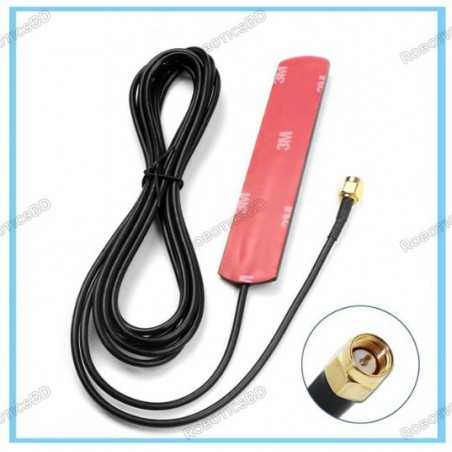

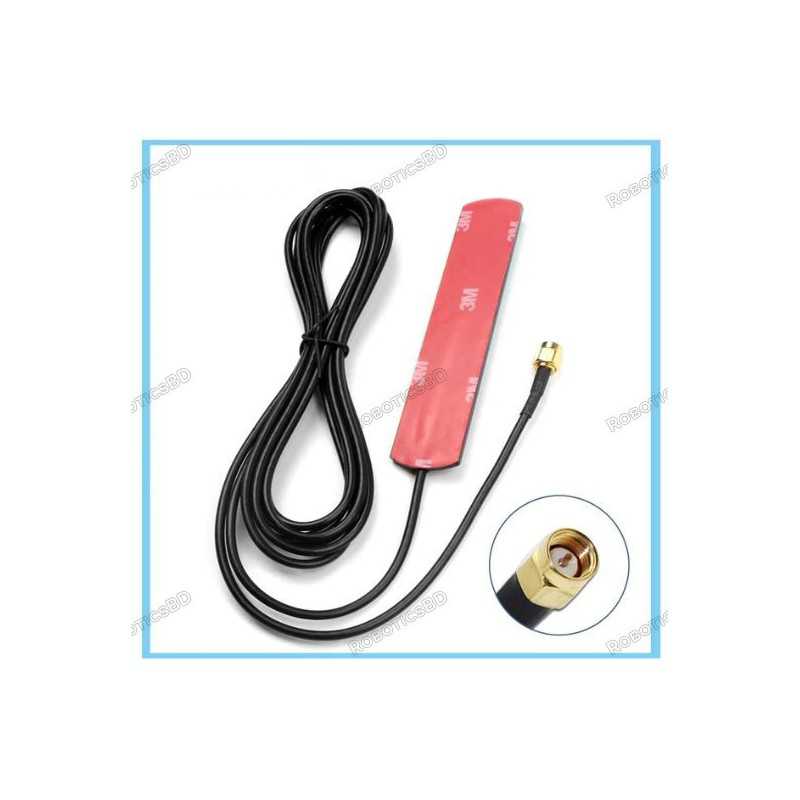

GSM Antenna with SMA Male Connector
  • GSM Antenna with SMA Male Connector

GSM Antenna with SMA Male Connector

RBD-1020

  • Frequency (MHz) : 824 – 960 MHz & 1710 – 1980 MHz
  • Gain:2 / 3 dBi
  • Impedance (Ω): 50
  • Connector Type: SMA Plug
  • VSWR :< 2.5
BDT 290.00
BDT 290.00 BDT 290.00 BDT 290.00 BDT 290.00
Tax included Tax excluded Tax included Tax excluded
BDT 290.00 Tax excluded
BDT 290.00 Tax included
BDT 0.00 Tax
BDT 290.00 Tax excluded
BDT 0.00 Tax
BDT 290.00 Tax included
Quantity
In-Stock
75 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

This is a GSM Antenna having a frequency of 824 – 960 MHz & 1710 – 1980 MHz with 28dBi gain. The antenna is a wireless device to receive and transmit signals, it has been widely used in telecommunication to communicate. One of the main reasons to use a sticker antenna is the reduced overall cost of the radio module. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

  1. Compact Size
  2. Low Cost
  3. The connector of your choice
  4. Any cable length (suggested <1m)

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Model LWC-GSM-STICKER-03
Frequency 824 – 960 MHz & 1710 – 1980 MHz
Gain 2 / 3 dBi
Impedance (Ω) 50
VSWR < 2.5
Polarization Linear
Power Handling (W) 10
HPBW H: 3600 ; V: 300 / 400
Connector SMA Plug
Operating Temperature (°C) -30 to 60
Humidity 5 – 75%
Weight (gm) 50
Shipment Weight 0.05 kg
Shipment Dimensions 5 × 3 × 1 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes:

1 x GSM Antenna with SMA Male Connector.
