Using a drone is easy but controlling a drone is a tough job that’s why a transmitter is needed. You can’t fly a multirotor without it because it uses radio signals to send commands wirelessly to a Radio Receiver. And Flysky is one of the popular brands that only manufactures a Diverse Range of high-quality Transmitters and Receivers at an affordable price.
FlySky CT6B 2.4 GHz 6CH transmitter is an entry-level 2.4 GHz radio system offering the reliability of 2.4 GHz signal technology and a receiver .it is ideal for quadcopters and multirotor that require the 6ch operation.
FlySky Transmitter and Receiver is gaining so much popularity due to its originality and compatibility in high-end drone projects and Industrial people are interested in this type of Transmitter. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
- Super active and passive anti-jamming capabilities.
- Very low power consumption.
- High receiving sensitivity.
- 8 model memory, digital control.
- We can program by PC with the included software.
- Full range 2.4GHz 6-channel radio.
- 4 Types (Airplane, Heli90, Heli120, Heli140).
- Use a linear spread of fine paragraph by an excess antenna.
- It covers the entire bandwidth of the antenna bandwidth range.
- High quality and stability.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification |
| Model Type |
Digital Radio Transreceiver |
| Modulation Type |
GFSK |
| Sensitivity (dBm) |
1024 |
| Code Type |
Digital |
| Band-Range (GHz) |
2.40 ~ 2.48 |
| Bandwidth (KHz) |
500 |
| DSC Port |
Yes (3.5mm:output:PPM) |
| Charging Port |
Yes |
| Default Operating Mode |
Mode 2 (Left-Hand Throttle) |
| Color |
Black |
| Low Voltage Warning |
Yes(at less than 9V) |
| No. of Channels |
6 |
| Operating Voltage (VDC) |
12 |
| RF Power |
Less Than 20 dbm |
| Dimensions (mm) LxWxH |
189 x 97 x 295 |
| Weight (gm) |
511 |
| Certificate |
CE0678, FCC |
| Shipment Weight |
0.95 kg |
| Shipment Dimensions |
24 × 22 × 9 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Documentation:
- PROGRAMMING FLY SKY FS CT6B TRANSMITTER RC PLANE.

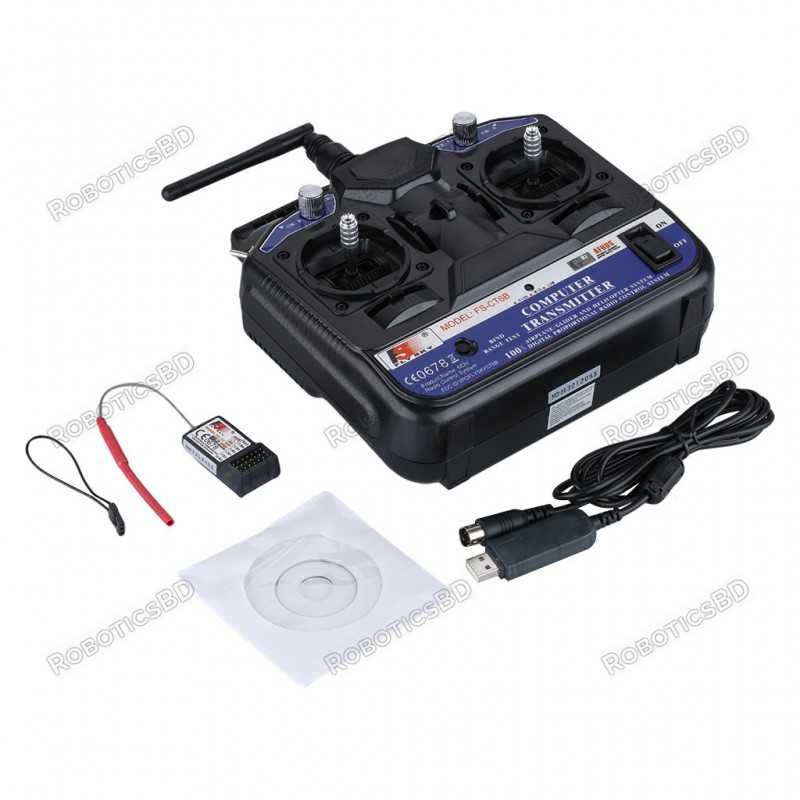

Package Includes :
1 x Flysky CT6B Transmitter
1 x FS-R6B Receiver
1x USB Interface Cable
1 x Receiver Binding Cable
1x User Manual.
