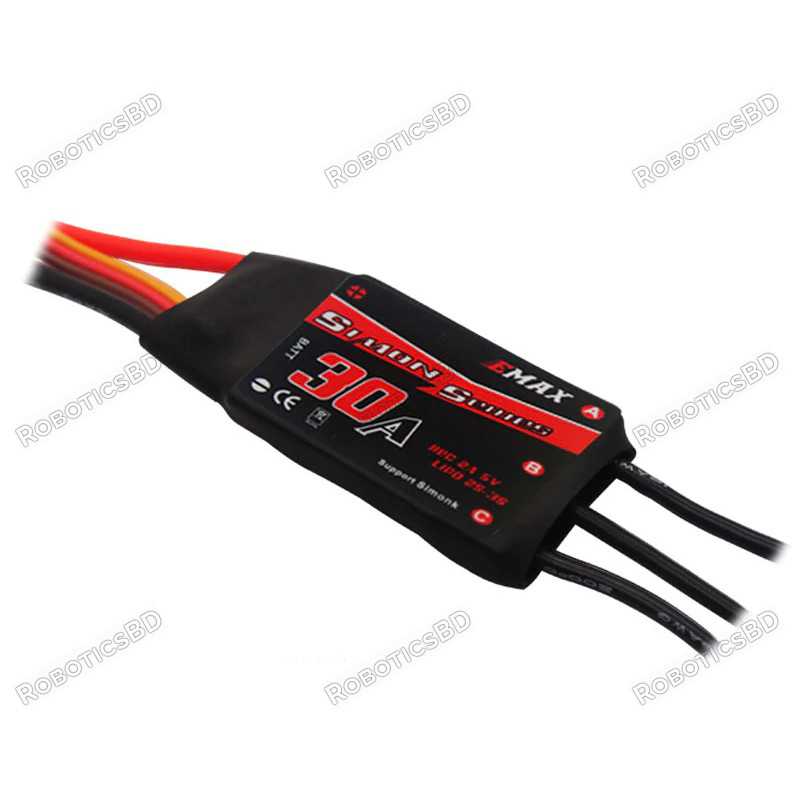

Emax Simon Series 30A ESC

RBD-0725

  • Model: Emax Simon Series
  • Burst Current: 40A (up to 10Sec)
  • Input Voltage(V): up to 16V
  • Constant Current: 30A
  • BEC: 5V /2A
  • Suitable Batteries: 2 ~ 4S
BDT 1,200.00
BDT 1,200.00 BDT 1,200.00 BDT 1,200.00 BDT 1,200.00
Tax included Tax excluded Tax included Tax excluded
BDT 1,200.00 Tax excluded
BDT 1,200.00 Tax included
BDT 0.00 Tax
BDT 1,200.00 Tax excluded
BDT 0.00 Tax
BDT 1,200.00 Tax included
Quantity
Last items in stock
1 Item

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

Emax’s SIMON Series 30A ESC  is designed specifically for FPV racing. The Emax series is a line of high-performance and low-cost ESCs for drone motors. Emax’s ESC’S are 100% guaranteed original and genuine products for the beginner who wants to learn how to build a drone. RoboticsBD

EMAX Simon SERIES 30A ESC  is a brushless dc motor speed controller. The low output resistance greatly enhances power stability because The ESC is adapting a 2-4S LiPo battery which improves good battery life. The EMAX Simon ESC is programmed to start the brushless dc motor. This ESC has a greater current handling capacity which is 30A continuous and the peak current is 40A for the last 10 seconds only. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features :

  1. Based on Simon firmware, further optimized to the perfect drive performance.
  2. Low-voltage protection, over-heat protection, and throttle signal loss protection.
  3. Separate power supply for MCU and BEC, enhancing the ESC’s ability to eliminate magnetic interference.
  4. Parameters of the ESC can be set via a program card or transmitter.
  5. Throttle range can be set to be compatible with different receivers.
  6. Equipped with built-in linear BEC or switch BEC. RoboticsBD
  7. Max speed: 210,000 rpm for 2-pole, 70,000 rpm for 6-pole, 35,000 rpm for 12-pole.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Model Emax SIMON Series 30A
Burst Current (A) 40
Constant Current (A) 30
BEC Yes (5V/2A)
Suitable Lipo Batteries 2 ~ 4S
Color Black
Dimensions (mm) LxWxH 52 x 26 x 7
Weight (gm) 28
Application BLDC Motors, Multirotor, RC Planes etc.
Shipment Weight 0.03 kg
Shipment Dimensions 8 × 6 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes :

1 x Emax SIMON Series 30A ESC

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Product Details
RBD-0725
1 Item

Specific References

EAN13
0725
