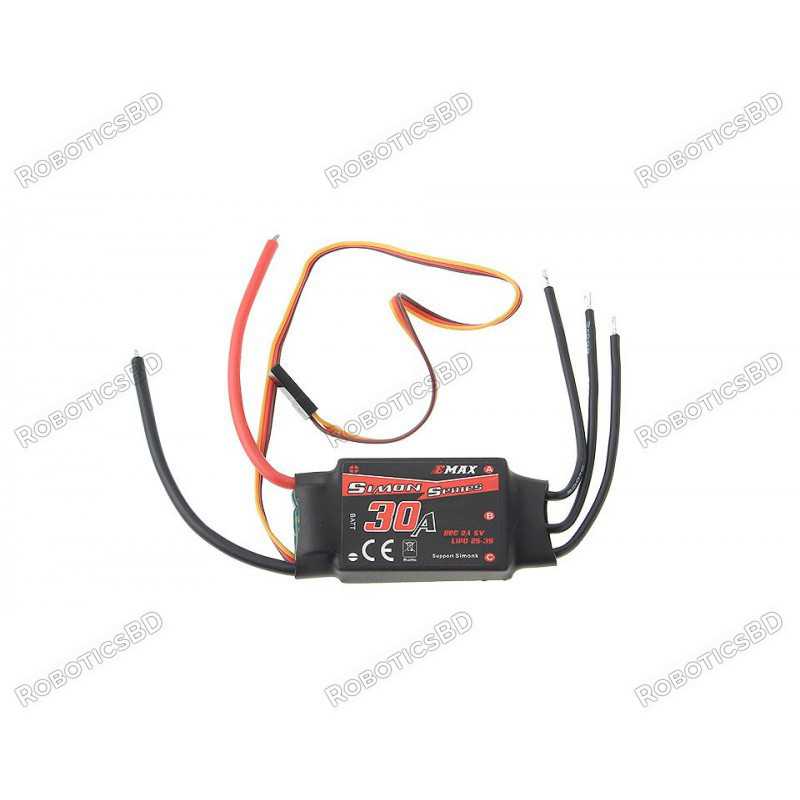

Emax SimonK Series Multirotor 30A Brushless ESC

RBD-1691

  • Model: Emax SimonK Series.
  • LiPo Battery Input: 2 ~ 3S.
  • Continuous Current: 30A.
  • Burst Current(10S): 40A (for 10Sec).
  • BEC Mode: Linear.
  • BEC Output: 1A/5V.
BDT 1,190.00
BDT 1,190.00 BDT 1,190.00 BDT 1,190.00 BDT 1,190.00
Tax included Tax excluded Tax included Tax excluded
BDT 1,190.00 Tax excluded
BDT 1,190.00 Tax included
BDT 0.00 Tax
BDT 1,190.00 Tax excluded
BDT 0.00 Tax
BDT 1,190.00 Tax included
Quantity
Out-of-Stock

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

Emax SimonK Series Multirotor 30A Brushless ESC (Original) is a brushless dc motor speed controller. The low output resistance greatly enhances power stability, and this will improve the great battery life. Emax SimonK Series Multirotor 30A Brushless ESC is programmed to start the brushless dc motor. This ESC has a greater current handling capacity which is 30A continuous and the peak current is 40A for the last 10 seconds only. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features :

  1. Based on SimonK firmware, further optimized to the perfect drive performance.
  2. Low-voltage protection, over-heat protection, and throttle signal loss protection.
  3. Separate power supply for MCU and BEC, enhancing the ESC’s ability to eliminate magnetic interference.
  4. Parameters of the ESC can be set via a program card or transmitter.
  5. Throttle range can be set to be compatible with different receivers.
  6. Equipped with built-in linear BEC or switch BEC.
  7. Max speed: 210,000 rpm for 2-pole, 70,000 rpm for 6-pole, 35,000 rpm for 12-pole.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Model Emax SimonK Series 30A
Burst Current (A) 40
Constant Current (A) 30
BEC Yes (5V/2A)
Suitable Lipo Batteries 2 ~ 3S
Color Black and Red
Dimensions (mm) LxWxH 52 x 26 x 7
Weight (gm) 28
Application BLDC Motors, Multirotors, Rc Planes etc.
Shipment Weight 0.03 kg
Shipment Dimensions 6 × 3 × 1 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes :

1x Emax SimonK Series Multirotor 30A Brushless ESC module.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Product Details
RBD-1691

Specific References

EAN13
1691
