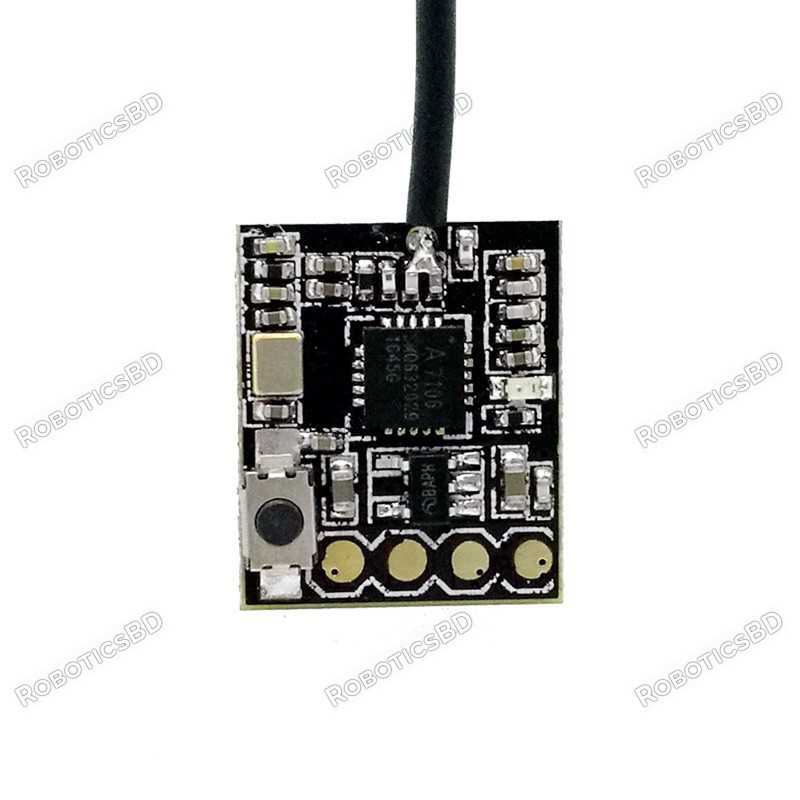

FlySky FS-RX2A Pro 2.4Ghz Receiver
  • FlySky FS-RX2A Pro 2.4Ghz Receiver
  • FlySky FS-RX2A Pro 2.4Ghz Receiver

FlySky FS-RX2A Pro 2.4Ghz Receiver

RBD-0957

  • Item name: FS-RX2A Radio receiver
  • Channel: 10
  • RF Range: 2.408-2.475GHZ
  • Number of bands: 135
  • RX Sensitivity: -92dBm
  • 2.4GHz protocol: AFHDS 2A
  • Signal output: IBUS, PPM
  • Compatible Transmitter: All AFHDS 2A Transmitter,
  • Ex.: FS-I6, FS-I6X, FS-I6S, FS-TM8, FS-TM10, FS-I10.
BDT 1,200.00
BDT 1,200.00 BDT 1,200.00 BDT 1,200.00 BDT 1,200.00
Tax included Tax excluded Tax included Tax excluded
BDT 1,200.00 Tax excluded
BDT 1,200.00 Tax included
BDT 0.00 Tax
BDT 1,200.00 Tax excluded
BDT 0.00 Tax
BDT 1,200.00 Tax included
Quantity
Out-of-Stock

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

The FS-RX2A Pro Radio Receiver Mini Receiver is built for use in multi-rotor drones and is a 1-way receiver (no telemetry).

It uses the extremely stable AFHDS 2A (Automatic Frequency Hopping Digital System) protocol, supports standard PPM output and has i-BUS support for up to 10 channels. RoboticsBD

In the world of racing drones, the requirements are for small and lightweight components. The FS-A8S receiver fits these requirements superbly, being only 12 x 15 mm and 1.0g. RoboticsBD

Compatible Transmitter: All AFHDS 2A Transmitter, for example, FS-I6, FS-I6X, FS-I6S, FS-TM8, FS-TM10, FS-I10 etc.

Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Binding Procedure:

1. Press and hold the Binding button, and supply power to the receiver, the green LED blinks fast means entering the binding mode.
2. Make the transmitter enter BIND mode. RoboticsBD
3. The LED indicator become slowly blink means the binding succeeds.
4. Make the transmitter quit the BIND mode, the receiver LED indicator to stay on means receiving signal

Note: Failsafe only works on IBUS, not in PPM.

Features:

  1. Channel: 10(IBUS), 8(PPM)
  2. RF Range: 2.408-2.475GHZ
  3. Number of bands: 135
  4. RX Sensitivity: -92dBm
  5. 2.4GHz protocol: AFHDS 2A
  6. Signal output: IBUS, PPM
  7. Antenna length: 33mm
  8. Power input: 3.3-5V
  9. Control distance: 400m+
  10. Current: 30MA
  11. Size: 12*15mm
  12. Weight: 1g

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Model FS-RX2A Pro
No. of Channels 10
No. of Band 135
RF Range 2.408-2.475GHZ
Rx Sensitivity (dBm) -92
Signal Output IBUS, PPM
Operating Voltage (VDC) 3.3 ~ 5V
Current Consumption (mA) 30
Control Distance 400m+
i-Bus Interface Yes
Antenna Length (mm) 33
Color Black
Net weight (gm) 1
Dimensions (mm) LxWxH 12 x 15
Shipment Weight 0.01 kg
Shipment Dimensions 4 × 3 × 1 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package includes :

1 x  FlySky FS-RX2A Pro 2.4Ghz Receiver.
