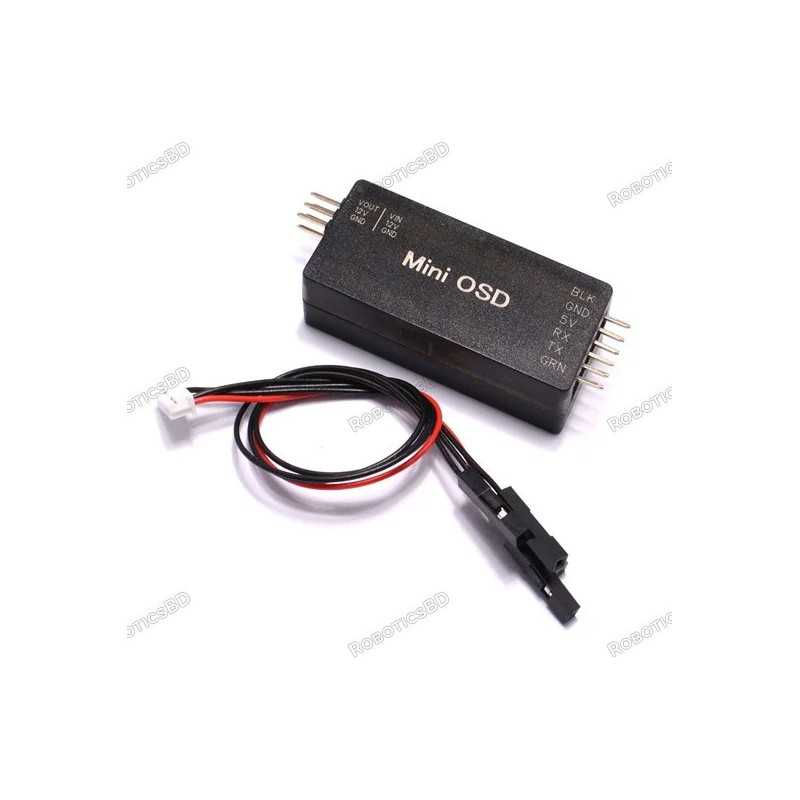

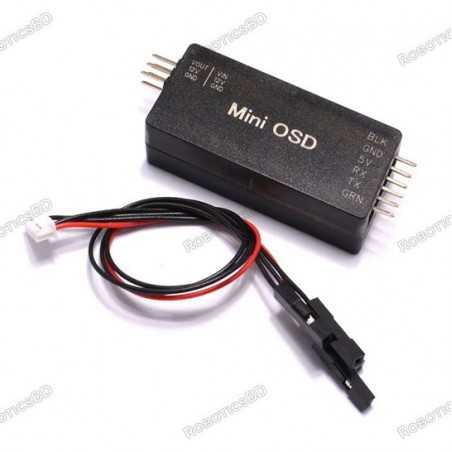

Mini OSD Module for APM PIX Pixhawk Pixhack Flight Control Board

RBD-0938

  • ATmega328P with Arduino bootloader
  • MAX7456 monochrome on-screen display
  • FTDI cable compatible pinout
  • Standard 6 pin ISP header
  • 2 independent power sections with an LED indicator on each
  • Solder jumpers for combining the power sections
BDT 2,500.00
BDT 2,500.00 BDT 2,500.00 BDT 2,500.00 BDT 2,500.00
Tax included Tax excluded Tax included Tax excluded
BDT 2,500.00 Tax excluded
BDT 2,500.00 Tax included
BDT 0.00 Tax
BDT 2,500.00 Tax excluded
BDT 0.00 Tax
BDT 2,500.00 Tax included
Quantity
Last items in stock
1 Item

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

Mini OSD for Pixhawk Flight Controller has a companion OSD board called Mini OSD. It reads all the MAV Link data in the APM telemetry stream and overlays it on the video stream if you’re using an onboard camera and wireless video transmitter. This is useful if you’re flying in First Person View (FPV) mode or don’t want to use a laptop at the field to see your telemetry data in the Mission Planner.   Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Compatible flight controller:
APM2.5
APM2.6
APM2.8
Pixhawk PX4

Important Note:
You cannot connect the OSD when your APM 2 is also connected via USB (they share the same port). Make sure you disconnect your USB cable from the APM 2 board before attempting to use the OSD.  RoboticsBD

Features:

  1. ATmega328P with Arduino bootloader.
  2. MAX7456 monochrome on-screen display.
  3. FTDI cable compatible pinout.
  4. Standard 6 pin ISP header.
  5. 2 independent power sections with an LED indicator on each.
  6. Solder jumpers for combining the power sections.
  7. +5V 500mA regulator for up to +12V supply input.
  8. Solder jumper for PAL video option.
  9. Exposed test points for HSYNC and LOS.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Arduino bootloader ATmega328P
On-screen display MAX7456
Input supply 12 V
Cable length (mm) 100
Length (mm) 58
Width (mm) 22
Height (mm) 12
Weight (gm) 15
Shipment Weight 0.018 kg
Shipment Dimensions 6 × 5 × 2 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package includes:

1 x Mini OSD for the Pixhawk Flight Controller module.

1 x Connecting Cables.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Product Details
RBD-0938
1 Item

Specific References

EAN13
0938
