Build your small indoor DIY done with this Micro QuadCopter/ Micro Drone Kit which will help you become a quadcopter pilot. Simply get out the soldering iron, put on your safety goggles, and began soldering. This kit has very good products and is available at an affordable cost. RoboticsBD
For someone new to the multirotor hobby, putting together your first quadcopter parts list and bringing them home can be extremely daunting. Trying to figure out what to buy and what parts will work together is tough, especially for people who don’t come from a background in radio-controlled planes or helicopters. For the people who want to build a quadcopter but don’t know where to start. It can be frustrating trying to sort things and figure out what to do.
We’ve heard from a lot of peoples who are in similar positions and this bunch of products is designed to spell out exactly what you need for your quadcopter build. While we will recommend a complete list of specific parts that we have tested for a complete quadcopter build, the main purpose of providing a Brushed Quad-copter Combo Kit needed to build a quadcopter. Here’s what the kit contains. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
QX95 Brushed Quad-copter Frame
Every quadcopter or other multirotor aircraft needs a frame to house all the other components. Things to consider here are weight, size, and materials. This QX95 Brushed Quad-copter Frame is a well thought out brushed quad frame built from quality materials.
55mm (2.2inch) Blade Propeller Propeller for 6x15mm, 7x20mm 8.5x20mm Coreless Motor DIY Micro Quadcopter
These are 55mm (2.2inch) Blade Propeller Propeller for 6x15mm, 7x20mm 8.5x20mm Coreless Motor DIY Micro Quadcopter. The propellers with a 0.95mm mounting hole can be firmly mounted onto 1mm 4-axial motors. RoboticsBD
8520 Magnetic Micro Coreless Motor for Micro Quadcopters – 2xCW & 2xCCW
If you are new in the multirotor/drone hobby area and want to try out some basic multirotor designs so as to enhance your basic knowledge about multirotor!!! Don’t wait and get this combo of 8520 Magnetic Micro Coreless Motor for Micro Quadcopters – 2xCW & 2xCCW.
Operating condition
- Rated voltage 3.2V DC
- The direction of rotation CW and CCW
- Operating voltage range DC3.0-3.7V DC
- operating temperature range -10-50°C
- Motor position all position
Measuring condition
- Motor position horizontal or vertical
- Power supply regulated DC power supply assuring unquestionable measuring
- regulated DC power supply assuring unquestionable measuring 10-30°C 30-95%
- If the judgment is questionable, Measurement is to be made based on JIS Standard Testing Condition(20+2°C,65+5% )
- The direction of rotation viewed from the output shaft side
Electrical characteristics
- Items Specification Standard value
- Rated speed 39000rpm±12% 39000 rpm
- Rated Current 200mA max 150mA
- Rated Load 30500rpm±10% 30500 rpm
- Rated load current 1750mA max 1620mA
- Starting voltage 1.0V max 0.8V DC
- Insulation resistance 10MΩ
- min AT 250V DC between
- motor terminal and case
- Mechanical noise
- Underrated voltage 60 DB(A) max 53dB(A)
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification |
| Item Name: |
DIY Frame Kit |
| Item NO.: |
QX95 |
| Material: |
Carbon Fiber |
| Wheelbase: |
95mm |
| Upper plate thickness: |
1mm |
| Bottom plate thickness: |
1.5mm |
| Net Weight: |
8.9g |
| Motor size: |
8.5x20mm |
| Shipment Weight |
0.015 kg |
| Shipment Dimensions |
11 × 9 × 4 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Cautions:
1) Please use the motor in this technology index range for the performance of the motor is affected by environmental temperature seriously.
2) It is not allowed to operate in the high temperature with high humidity, and not allowed to contact with corrosive liquid and corrosive gas, should not be stored and without running Continuously for more than six months.
3) Do not lock the motor shaft while the electric is on. The motor will be burnt out after the motor shaft was locked for more than 1 second.
4) Do not hit the motor directly.

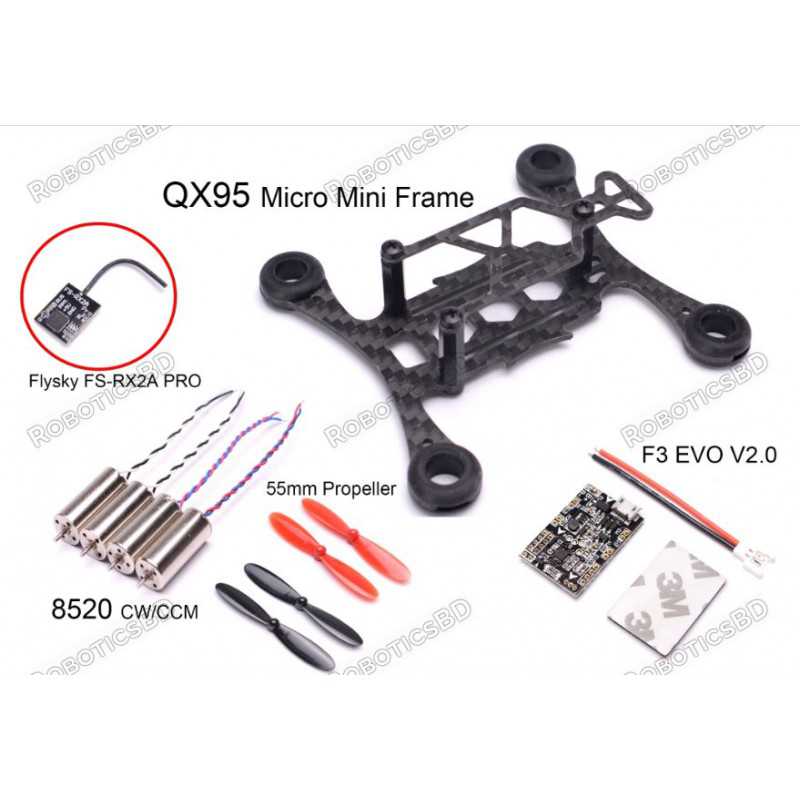

Package Includes:
1 x QX95 Frame Kit
1 x F3 EVO V2.0 flight control
2 pcs x CW 8520 Motor
2 pcs x CCW 8520 Motor
4 pair x 55mm propeller
1 pcs x Mini receiver FS-RX2A Pro
Recommended Part:
3.7V 600mAh Battery (Not Included) Purchase Separately.
