The latest version of F3 EVO flight control Support 6 axis aircraft. The operating current of each shaft can be up to 10A or higher, improved to measure the blood pressure of the amplifier module, can reach up to 500 mAh constant output current using UART1 or UART2 output 5V can satisfy low power circuit as 25 MW FPV camera, support LED STRIP function. F3 EVO Flight Controller gives you all the features in small size and is designed for micro size quads with brushed motors. Dedicated Open source Cleanflight software ensures that you are always updated. RoboticsBD
STM32F303CCT6 + MPU6500 processors and advanced hardware platform F3 guarantee higher flight stability. With large current NMOS transistors, the operation current can reach 10A or higher. And it supports PPM, SBUS, DSM receiver input signal. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Note:
Since this is an Open Source Flight Controller Board, there are many manufacturers who are supplying this product. We have picked up the best quality products from the market and tested them for their functionality. And finally selected best amongst them. Our product works exactly the same as we have described above in the description. RoboticsBD
Features:
- The V2.0 supports 6 rotors
- 32-bit brush flight controller based on SP Racing F3 EVO firmware
- Supports 1S ( 4.2V ) and 2S ( 8.4V ) power supply, 2S can bring you more breathtaking flight
- STM32F303CCT6 + MPU6500, the F3 advanced hardware platform guarantees more stable flight
- With a large-current NMOS transistor, the operating current reaches more than 10A.
- Supports input signal of PPM, SBUS, DSM receiver
- Has battery voltage detection and buzzer interface. RoboticsBD
- Compatible with almost all coreless motors, including the 1020 motor
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification |
| Sensors |
6050 MCU |
| Input Voltage (V) |
1S (4.2V), 2S (8.4V) |
| Firmware |
EVO firmware |
| Processor |
STM32F303CCT6 |
| PCB Thickness(mm) |
1.2mm |
| Length (mm) |
22 |
| Width (mm) |
32.5 |
| Weight (gm) |
3 |
| Micro-SD Card Slot |
No |
| Shipment Weight |
0.005 kg |
| Shipment Dimensions |
10 × 8 × 2 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

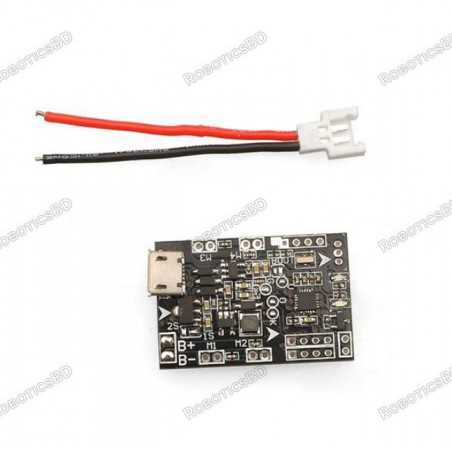

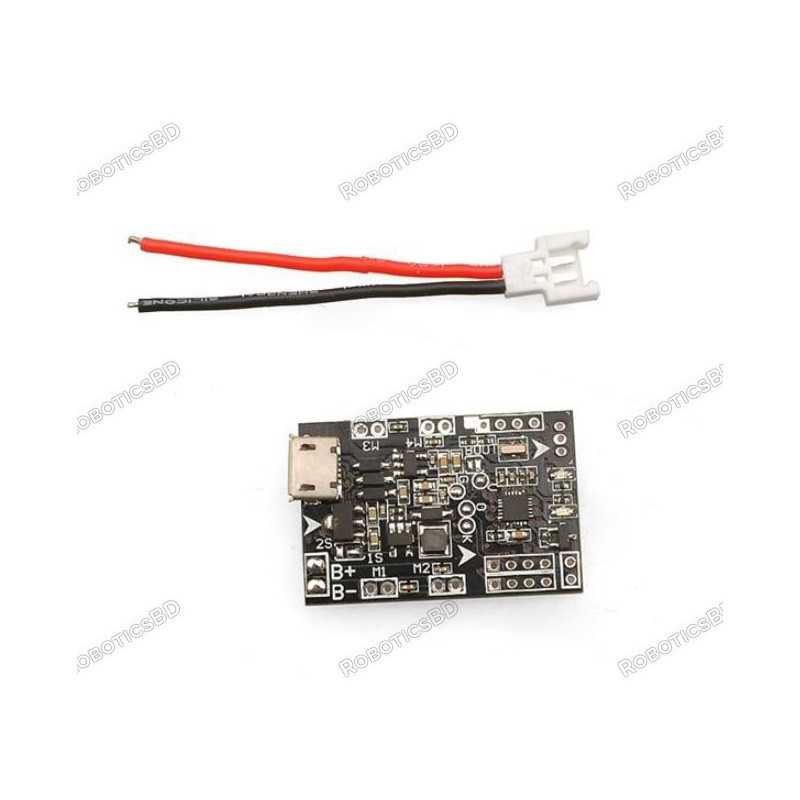

Package Includes:
1 x F3 EVO V2.0 Flight Control
1 x Piece of Adhesive Tape.
1 x Connecting Cable.
