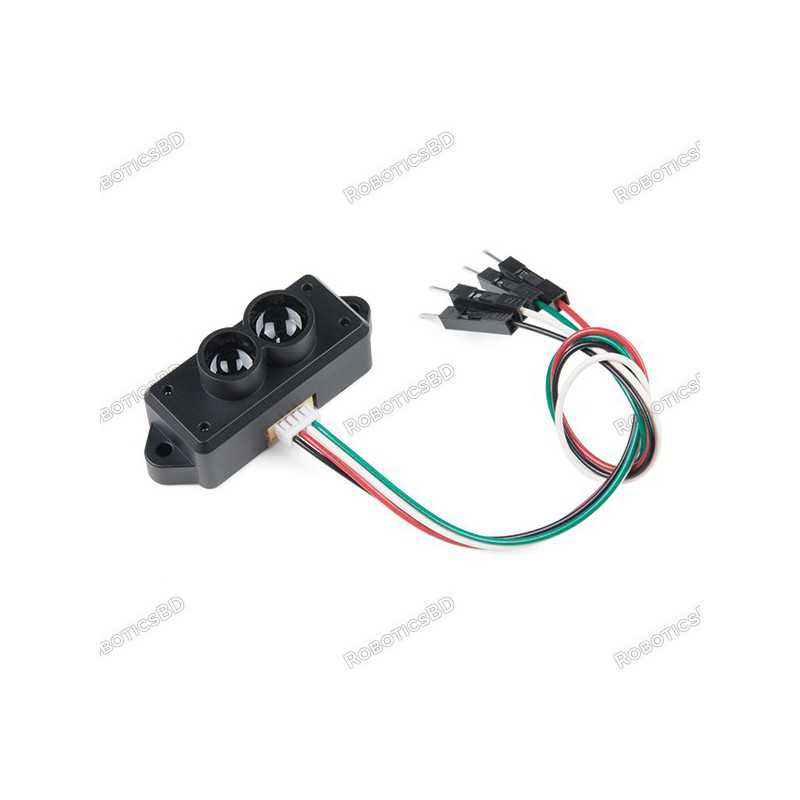

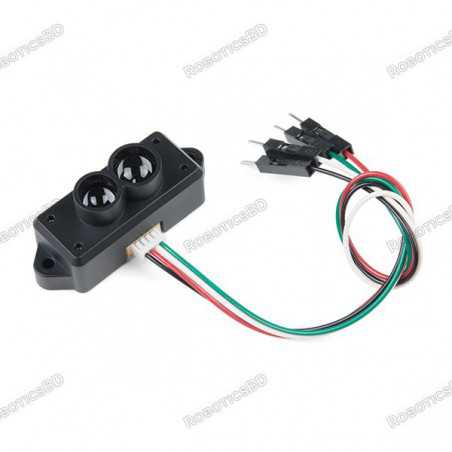

TFMini - Micro LiDAR Module

RBD-1201

  • Measurement range: 12 m.
  • Operating Voltage: 5V.
  • Power : 0.12w.
  • Weight: 6 gm.
  • Compatible with Pixhawk Controller.
  • Frequency: 100Hz
BDT 7,990.00
BDT 7,990.00 BDT 7,990.00 BDT 7,990.00 BDT 7,990.00
Tax included Tax excluded Tax included Tax excluded
BDT 7,990.00 Tax excluded
BDT 7,990.00 Tax included
BDT 0.00 Tax
BDT 7,990.00 Tax excluded
BDT 0.00 Tax
BDT 7,990.00 Tax included
Quantity
Last items in stock
1 Item

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

The TFMini micro LiDAR distance sensor for drones UAV UAS robots (12m) Laser Range Finder sensor has its unique optical, structural, and electronic designs, the product possesses 3 major advantages, low cost, tiny volume and low power consumption. It has built-in algorithm adapted to indoor and outdoor environments can guarantee an excellent ranging performance at a low cost and in a tiny volume, which highly expands the application fields and scenarios of LiDAR and lays a solid foundation for future “eyes” in the smart era. RoboticsBD

TF Mini is a single-point micro ranging module and could be widely used in the integrated application of various drones, UAVs, Robots and industrial types of equipment. Main Characteristics of TFMini micro LiDAR distance sensor for drones UAV UAS robots (12m) are, this product is based on TOF (Time of Flight) principle and integrated with unique optical and electrical designs, so as to achieve stable, precise, high sensitivity and high-speed distance detection. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

  1. Small size
  2. Lightweight
  3. Low power consumption
  4. High frame rate(up to 1000Hz)

Applications:

  1. Unidirectional ranging LiDAR.
  2. Obstacle avoidance.
  3. Assisted landing.
  4. Terrain following.
  5. Robots outdoor obstacle avoidance.
  6. Intelligent parking. Crane operations.
  7. Vehicle position sensing.
  8. Vehicle detection for barrier gate control.
  9. High-precision & High-speed measurement.
  10. Eye-safe infrared LED light.
  11. Compact size, lightweight.
  12. Good performance for height fixing and terrain-following drones.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Operating Range 0.1m~12m@90%Reflectivity
Accuracy ±6cm@（0.1-6m)
±1%@（6m-12m）
Distance Resolution(cm) 1
Frame Rate(Hz) 100
Ambient light immunity 70Klux
Operating Temperature(℃) 0℃~60℃
FOV 2°
Supply Voltage(V) 5V±0.1V
Average current(mA) ≤140mA
Power Consumption(W) ≤0.7W
Peak current(mA) 200
Communication Interface UART / I2C
Cable Length(cm) 10
Dimension in mm(L*W*H) 42*15*16
Weight(g) 5g±0.3g
Shipment Weight 0.03 kg
Shipment Dimensions 5 × 2 × 2 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

  1. Product Manual of TFmini-S
  2. TFmini Infrared Module Specification

Package Includes:

1 x TFMini-S Micro LiDAR Distance Sensor

1 x Cable

1 x QC card.
