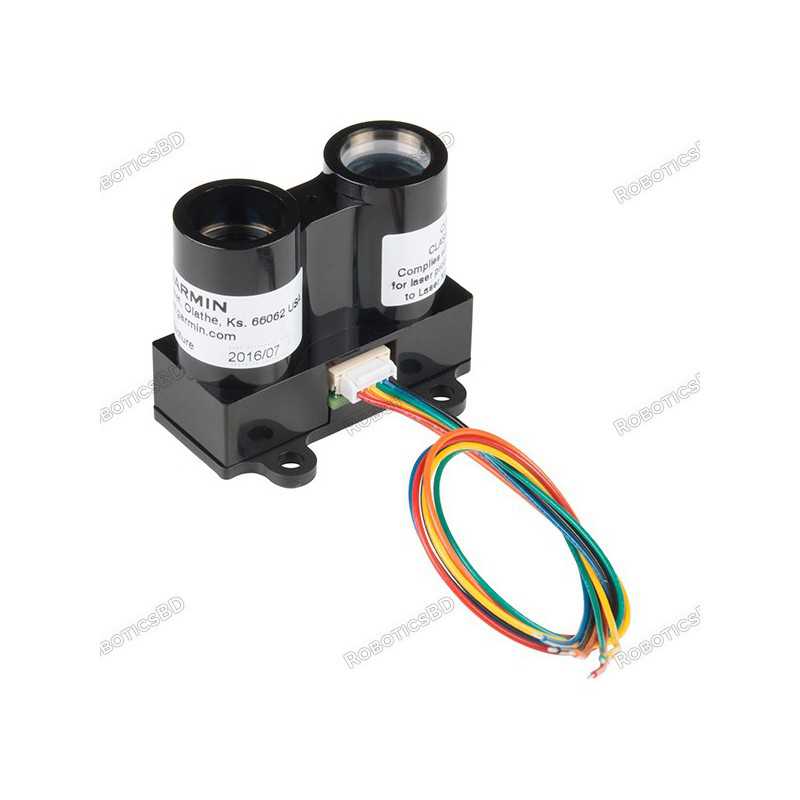

LIDAR-Lite v3

RBD-0367

  • Reliable and powerful ranging and proximity sensor for drone, robot or unmanned vehicle applications
  • Compact, lightweight with low power consumption
  • User-configurable allows adjustment between accuracy, operating range and measurement time
  • Communication via I2C and PWM
  • Requires a power source and an external micro-controller running an application. RoboticsBD
BDT 20,500.00
BDT 20,500.00 BDT 20,500.00 BDT 20,500.00 BDT 20,500.00
Tax included Tax excluded Tax included Tax excluded
BDT 20,500.00 Tax excluded
BDT 20,500.00 Tax included
BDT 0.00 Tax
BDT 20,500.00 Tax excluded
BDT 0.00 Tax
BDT 20,500.00 Tax included
Quantity
Out-of-Stock

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

When space and weight requirements are tight, the LIDAR-Lite v3 soars. It’s the ideal compact, high-performance optical distant measurement sensor solution for drone, robot or unmanned vehicle applications. Using a single chip signal processing solution along with minimal hardware, this highly configurable sensor can be used as the basic building block for applications where small size, light weight, low power consumption and high performance are important factors.

Featuring all of the core features of the popular LIDAR-Lite v2, this easy-to-use 40 meter laser-based sensor uses about 130 milliamps during an acquisition. It is user-configurable so you can adjust between accuracy, operating range and measurement time.  It’s reliable, powerful ranging and it’s the proximity sensor you need. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Requires a power source and an external micro-controller running an application.

Applications :

  1. Unidirectional ranging LiDAR.
  2. Obstacle avoidance.
  3. Assisted landing.
  4. Terrain following.
  5. Robots outdoor obstacle avoidance.
  6. Intelligent parking. Crane operations.
  7. Vehicle position sensing.
  8. Vehicle detection for barrier gate control.
  9. High-precision & High-speed measurement.
  10. Eye-safe infrared LED light.
  11. Compact size, lightweight.
  12. Good performance for height fixing and terrain-following drones. RoboticsBD

Specifications :

  1. Resolution: 1 cm
  2. Accuracy: +/- 2.5 cm at distances greater than 1 meter. Refer to operating manual for complete operating specifications.
  3. Range: 5 cm to 40 meters
  4. Update rate: up to 500 Hz
  5. Interface: I2C or PWM
  6. Power (operating voltage): 4.75-5 VDC; 6 V Max
  7. Operating temperature: -20 to 60° C
  8. Laser wave length/Peak power: 905 nm/1.3 watts
  9. Beam divergence: 8 m Radian
  10. Optical aperture: 12.5 mm. RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Range 0-40m Laser Emitter
Accuracy 2.5cm at distances greater than 1m
Power 4.75–5V DC; 6V Max
Current Consumption 105ma idle 130ma continuous
Rep Rate 1–500Hz
Laser Wave Length/Peak Power 905nm/1.3 watts
Beam Divergence 4 m Radian x 2 m Radian
Optical Aperture 12.5mm
Interface I2C or PWM
Shipment Weight 0.036 kg
Shipment Dimensions 2 × 4.8 × 4 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation :

  1. Operation & Technical Manual
  2. Hookup Guide
  3. How LIDAR Works
  4. LIDAR-Lite v3 Arduino Library
  5. Product Page

Package Includes :

1 x LIDAR-Lite v3

1 x Cable
