Ultrasonic Distance Sensor - 3.3V HC-SR04 RCWL-9610

RBD-2799

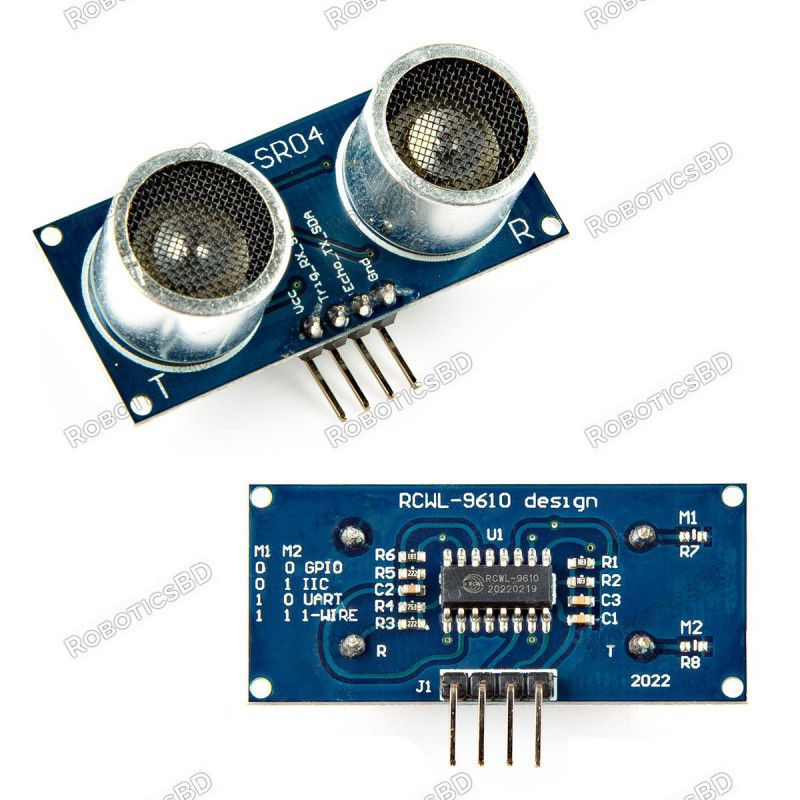

This is the HC-SR04-33 ultrasonic distance sensor. This economical sensor provides 2cm to 400cm of non-contact measurement functionality with a ranging accuracy that can reach up to 3mm. Each HC-SR04-33 module includes an ultrasonic transmitter, a receiver and a control circuit.

There are only four pins that you need to worry about on the HC-SR04: VCC (Power), Trig (Trigger), Echo (Receive), and GND (Ground). You will find this sensor very easy to set up and use for your next range-finding project!

This sensor has additional control circuitry that can prevent inconsistent "bouncy" data depending on the application.

NOTE: This version can be operated at both 3.3V and 5V.

BDT 130.00
BDT 130.00 BDT 130.00 BDT 130.00 BDT 130.00
Tax included Tax excluded Tax included Tax excluded
BDT 130.00 Tax excluded
BDT 130.00 Tax included
BDT 0.00 Tax
BDT 130.00 Tax excluded
BDT 0.00 Tax
BDT 130.00 Tax included
Quantity
149 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

This is the HC-SR04-33 ultrasonic distance sensor. This economical sensor provides 2cm to 400cm of non-contact measurement functionality with a ranging accuracy that can reach up to 3mm. Each HC-SR04-33 module includes an ultrasonic transmitter, a receiver and a control circuit.

There are only four pins that you need to worry about on the HC-SR04: VCC (Power), Trig (Trigger), Echo (Receive), and GND (Ground). You will find this sensor very easy to set up and use for your next range-finding project!

This sensor has additional control circuitry that can prevent inconsistent "bouncy" data depending on the application.

NOTE: This version can be operated at both 3.3V and 5V.

  • Operating Voltage: 3.3V~5V DC
  • Current: 15mA
  • Frequency: 40Hz
  • Max Range: 4m
  • Min Range: 2cm
  • Measuring Angle: 15°
  • Trigger Input Signal: 10uS TTL pulse
  • Echo Output Signal: Input TTL lever signal and the range in proportion
  • Dimension: 45 x 20 x 15mm
