Geiger Counter Kit Nuclear Radiation Detector Gamma Ray Build Radiation Monitoring Station

RBD-1111

  • This is one open-source Geiger Counter project which could be used to detect nuclear radiation. The schematic and code and other helpful files are listed in this package. All the codes are designed and tested on this kit, these materials are useful for DIY Geiger Counter Kit Nuclear Radiation Detectors or Radiation Monitoring Stations.

Note: The kit comes as dissembled or assemble as our stock rotates. (Current Stock comes as assembled 15-04-2023)

  • Technical parameters diameter:Φ10±0.5mm
  • Total length: 90±2mm
  • Starting voltage: < 350V
  • Recommended operating voltage: 380V
  • Minimum plateau length: 80V
  • Maximum plateau slope: 10%/80V
  • Extreme operating voltage: 550V
  • The maximum count rate: 25 times / min
  • Life: > 1 x 10^9 pulse
  • Medium temperature: -40 ~ 55 ℃
  • Size:108x63x20mm
BDT 5,890.00
BDT 5,890.00 BDT 5,890.00 BDT 5,890.00 BDT 5,890.00
Tax included Tax excluded Tax included Tax excluded
BDT 5,890.00 Tax excluded
BDT 5,890.00 Tax included
BDT 0.00 Tax
BDT 5,890.00 Tax excluded
BDT 0.00 Tax
BDT 5,890.00 Tax included
Quantity
In-Stock
8 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

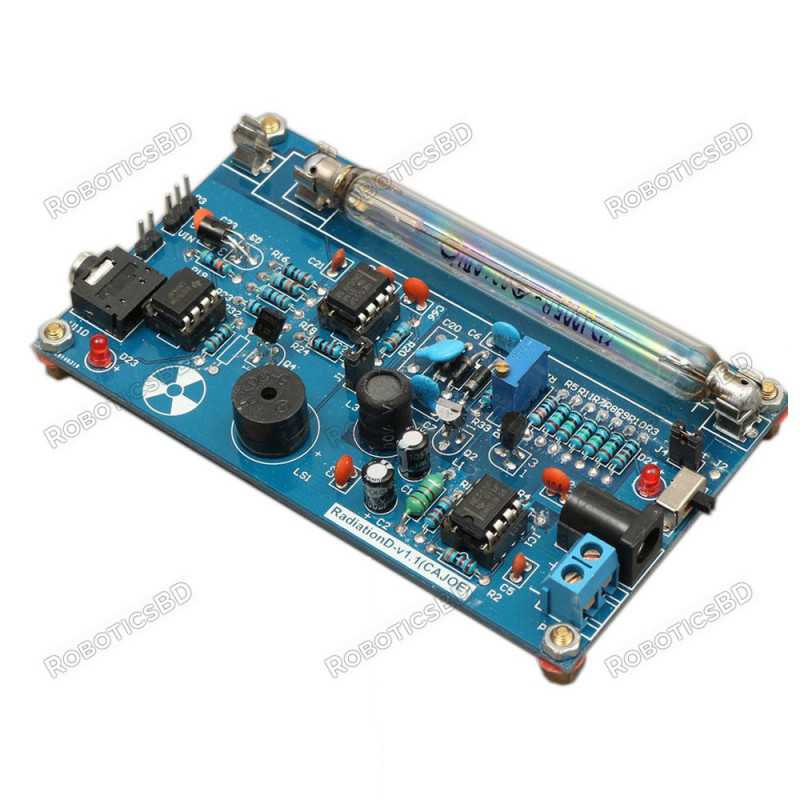

DIY Geiger Counter Kit Nuclear Radiation Detector Gamma Ray Build Radiation Monitoring Station. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Note: The kit comes as dissembled or assemble as our stock rotates

Details: https://github.com/2969773606/GeigerCounter-V1.1

Features:

  1. 5V power supply, or 1.5V 3x battery; 1.2V 4x battery, current: 30mA - 12mA for the detection of 20mR/h ~ 120mR/h of gamma rays and 100 ~ 1800 off variables / points / cm 2 of the soft beta ray. RoboticsBD
  2. Sound and Light alarm
  3. Interrupt the output interface, through this interface can be connected to the microcontroller and then displayed on the LCD.
  4. Supports most of the Geiger tube: M4011, STS-5, SBM20, J305, etc. (the 330~600V operating voltage of the Geiger tube can be supported).
  5. Support the computer (PC) data acquisition, MATLAB analysis and processing.
  6. Compatible with Arduino: (recommended UNO R3 Arduino, or any other arbitrary with 5V and external interrupt INT)

Specification:

  1. Name: Radiation Detector system
  2. Model:508295
  3. Accuracy ±2ppm from 0°C to +40°C
  4. Interface I2C
  5. I2C Address 0x64
  6. Geiger tube parameters:
  7. Technical parameters diameter:Φ10±0.5mm
  8. Total length: 90±2mm
  9. Starting voltage: < 350V
  10. Recommended operating voltage: 380V
  11. Minimum plateau length: 80V
  12. Maximum plateau slope: 10%/80V
  13. Extreme operating voltage: 550V
  14. The maximum count rate: 25 times / min
  15. Life: > 1 x 10^9 pulse
  16. Medium temperature: -40 ~ 55 ℃
  17. Size:108x63x20mm

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Geiger tube Size 108x63x20mm
Shipment Weight 0.05 kg
Shipment Dimensions 18 × 18 × 6 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

  1. Geiger-Counter-RadiationD-v1.1-CAJOE-
  2. Sch__Geiger Counter Kit-v1.1.pdf
  3. Build your own 50$ connected Geiger Counter (ESP32)
  4. Study of a Portable Experimental Set for the Monitoring of Ionizing Radiation in the Tropical Region of Brazil
  5. Backup Link for Github files

Package Includes :

1x Assembled Radiation Detector system

1x G M Tube

1x Power supply cable

1x Battery Holder (without batteries)

3x Jumper Wires

4x Nuts

1x Acrylic cover.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Product Details
RBD-1111
8 Items

Specific References

EAN13
1111
Attachments
Download
Geiger Counter

Geiger Counter Github

Download (463.54KB)
