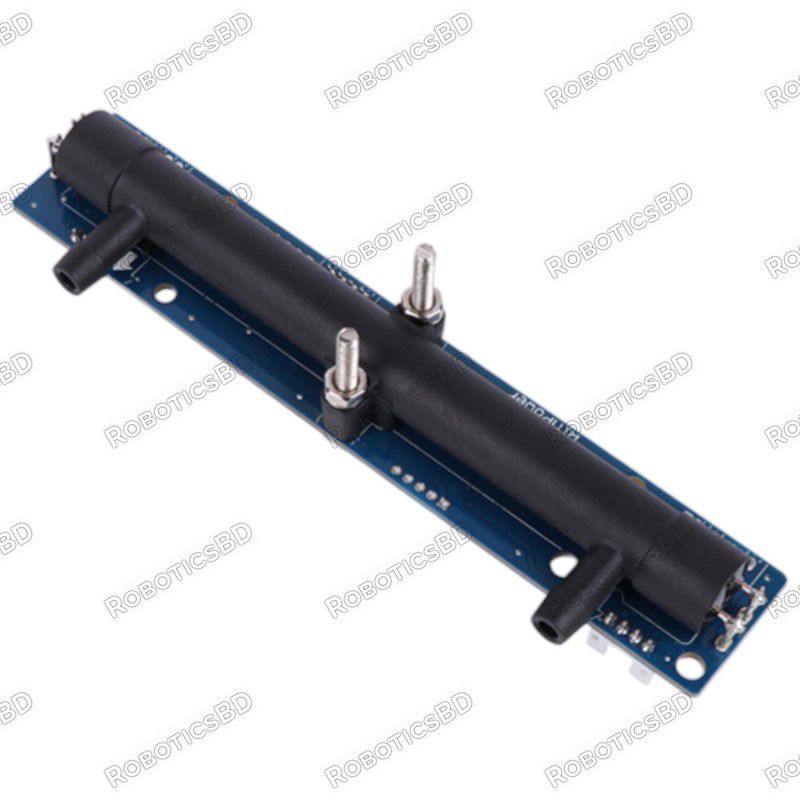

The Ultrasonic Oxygen Sensor OCS-3F is a cost-effective sensor that utilizes ultrasonic technology to measure oxygen concentration and gas volumetric flow rate. This sensor is ideal for various applications, including home and medical oxygen generators, PSA oxygen generators, and medical ventilators. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
The OCS-3F is not a medical device and should not be used for self-diagnosis or treatment.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
- Economical Oxygen Detection: Provides a cost-effective solution for oxygen concentration measurement in gas mixtures.
- Dual Detection Capability: Measures both oxygen concentration and gas flow rate, offering comprehensive data for analysis.
- High Accuracy: Delivers reliable readings with ±1.5% accuracy for oxygen concentration and ±0.2 L/min or 5% (whichever is greater) for flow rate.
- Multiple Outputs: Provides digital (UART 9600bps), analog (optional 0-2.5V), and LED outputs for versatile data transmission and visualization.
- Fast Response Time: Offers a quick response time of 1 second for oxygen level detection.
- Wide Operating Range: Functions effectively in temperatures from 0 to 50°C and humidity levels from 5 to 85% RH (non-condensate water).
- Compact & User-friendly: The small size (120.5mm x 22mm x 22mm) and simple operation allow for easy integration into various systems.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Applications:
- Home & Medical Oxygen Generators: Monitors oxygen concentration for safe and reliable oxygen delivery in homecare and clinical settings.
- PSA Oxygen Generators: Provides real-time data on oxygen concentration and flow rate for efficient pressure swing adsorption (PSA) oxygen generation.
- Medical Ventilators: Helps regulate oxygen levels and monitor gas flow in respiratory support systems.
- Other Oxygen-Related Applications: Can be used in various applications where oxygen concentration and flow rate measurement is critical.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification |
| Detection Principle |
Ultrasonic |
| Oxygen Concentration Range |
21% ~ 95.6% |
| Resolution |
0.1% |
| Accuracy |
±1.5%FS @ (25 ± 2)°C, ±2%FS @ (0 ~ 50)°C |
| Response Time |
50ms |
| Warm-up Time |
Sensor works upon power on; 5s to reach specified accuracy |
| Digital Output |
9600bps UART, 5V TTL / 3.3V CMOS compatible |
| Solenoid Valve Output |
DC +12V (500mA) |
| Operating Temperature |
0 ~ 50°C |
| Operating Humidity |
5 ~ 85% RH (Non-condensate water) |
| Sample Gas Requirements |
Arefaction (No condensation), Dust filtration |
| Dimensions |
78mm x 24mm x 24mm (L x W x H) |
| Weight |
20g |
| Shipment Weight |
0.0316 kg |
| Shipment Dimensions |
14 x 4 x 4 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Documentation:
- Not a Medical Device: The OCS-3F is not a medical device and should not be used for self-diagnosis or treatment. It is intended for use in oxygen concentrator systems and should be implemented under the guidance of a qualified medical professional.
- Sample Gas Requirements: The OCS-3F requires clean and dry gas (free from condensation and dust particles) for accurate readings. Implement proper filtration and avoid condensation buildup within the sensor.
Package Includes:
1 x Ultrasonic oxygen sensor OCS-3F
