If you want to make a project with carbon dioxide sensors also need a good range sensing property on this sensor then this module is good for you. This sensor measures gaseous carbon dioxide levels by monitoring the amount of infrared (IR) radiation absorbed by carbon dioxide molecules. This type of sensor is used in monitoring indoor air quality, landfills, process control, and controlled environment horticulture.

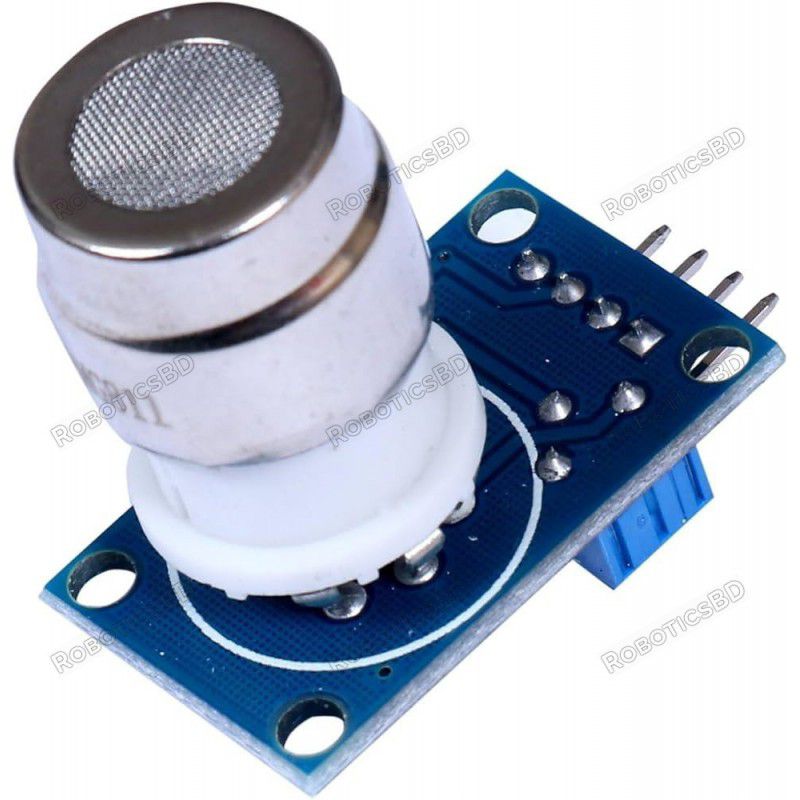

MG-811 Carbon Dioxide Sensor Module (Carbon dioxide sensor) is a carbon dioxide sensor (CO2) sensor that is a Metal Oxide Sensor sensor, which must heat the tank to the specified level. (With the method of supplying power) will cause heat vapor and separate CO2 from the air. This sensor module has an MG-811 onboard as the sensor component. A signal output circuit for heating the sensor The MG-811 is highly sensitive to CO2 and less sensitive to alcohol and CO. The output voltage of the CO2 increases.
Useful for greenhouses and medical projects. Sends an analog signal that decreases as the concentration of CO2 increases. This module also includes a digital output pin with TTL output. The Potentiometer on board is used to set the Digital Output Setpoint. After setting the potentiometer threshold, once that threshold is reached, an LED on the sensor will illuminate and the digital pin will give a HIGH voltage signal. Featured By RoboticsBD.
Pinout:
- VCC: 6V ( You can use a 4 AA battery holder for this ).
- AOUT: Analog Output (voltage decreases as CO2 Levels increase).
- DOUT: Digital Output that goes HIGH when the threshold is reached (set the threshold by turning the onboard potentiometer).
- GND: 0V.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
- Wide detecting scope.
- High sensitivity & stability.
- Simple drive circuit.
- Digital output: Active low (When it outputs a low-level signal, the indicator LED will be on)
- Analog output: Two Range Options: 0 to 2V or 0V to 4V. The default is 0V to 2V DC
- Compatible with Arduino & Raspberry Pi (for use on analog output with Raspberry Pi you will need an Analog to Digital Converter Chip).
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Applications:
- Air Quality Monitoring: Track CO2 levels in greenhouses, offices, or homes.
- Demand-Controlled Ventilation (DCV): Optimize ventilation based on CO2 occupancy sensors.
- Industrial Process Control: Maintain CO2 levels within specific ranges for manufacturing processes.
- Smart Agriculture: Monitor CO2 levels for optimal plant growth in greenhouses.
- DIY Projects: Build CO2 monitoring systems or integrate CO2 detection into custom creations.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification |
| Model |
MG811 |
| Operating Voltage (V) |
6V DC |
| Characteristic Gas |
CO2 |
| Detection Zone |
0 – 10000 ppm |
| Length (mm): |
32 |
| Width (mm): |
22 |
| Height (mm): |
29 |
| Weight (g): |
10 |
| Shipping Weight |
0.015 kg |
| Shipping Dimensions |
4 × 3 × 4 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Documentation:
.jpg)
Package Includes:
1 x MG811 (Co2) Carbon Dioxide Gas Sensor
