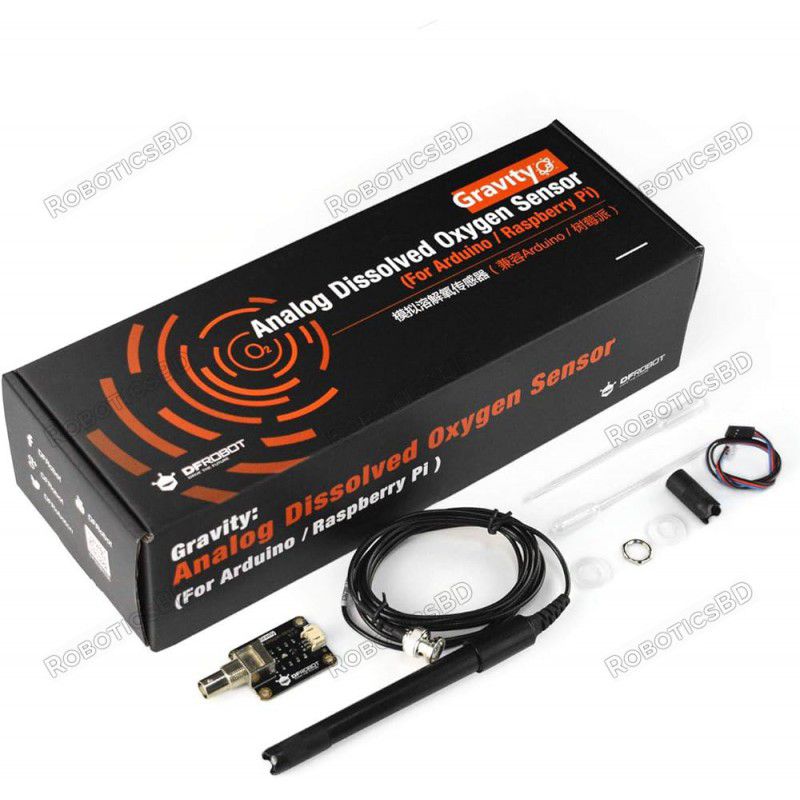

This is a dissolved oxygen sensor kit. A dissolved oxygen meter is used to measure the dissolved oxygen in water, to reflect the water quality. It is widely applied in many water quality applications, such as aquaculture, environment monitoring, natural science, etc.
There’s an old saying regarding keeping fish, “Good fish deserves good water”. Good water quality is very important to aquatic organisms. Dissolved oxygen is one of the important parameters to reflect water quality. Low dissolved oxygen in the water will lead to difficulty in breathing for aquatic organisms, which may threaten their lives.
This is a dissolved oxygen sensor kit. A dissolved oxygen meter is used to measure the dissolved oxygen in water, to reflect the water quality. It is widely applied in many water quality applications, such as aquaculture, environment monitoring, natural science, etc.
There’s an old saying regarding keeping fish, “Good fish deserves good water”. Good water quality is very important to aquatic organisms. Dissolved oxygen is one of the important parameters to reflect water quality. Low dissolved oxygen in the water will lead to difficulty in breathing for aquatic organisms, which may threaten their lives.
The probe is galvanic, does not need polarization time, and stays available at any time. The filling solution and membrane cap are replaceable, leading to the low maintenance cost. The signal converter board is plug-and-play and works from 3.3V - 5V which makes it compatible with most popular microcontrollers such as ESP32, Raspberry Pi and Arduino.
SPECIAL INSTRUCTION: Due to the International Import and Export Policy, the corrosive solution (acid & alkaline solution) cannot be delivered by air transportation. The filling solution is not included in the kit. You have to purchase it from the local shop or deploy the solution by yourself, refer to WiKi FAQ-Q4. It can’t work without a filling solution! Please be cautious with the purchase!
Note: 1. The filling solution is 0.5 mol/L NaOH solution. You need to pour it into the membrane cap before use. Please be cautious with the operation because the solution is corrosive. Please wear gloves! If the solution accidentally drops onto the skin, wash your skin with plenty of water immediately. 2. The oxygen permeable membrane in the membrane cap is sensitive and fragile. Be cautious when handling it. Fingernail and other sharp objects should be avoided. 3. The DO sensor will consume a little oxygen during the measurement. Please gently stir the solution and let the oxygen be distributed evenly in the water.
FEATURES
Dissolved Oxygen Probe：
1. Galvanic probe, no need polarization time
2. Filling solution and membrane cap is replaceable, low maintenance cost
Signal Converter Board：
1. 3.3~5.5V wide-range power supply, compatible with most Arduino microcontroller
2. 0~3.0V analog output, compatible with all microcontrollers with ADC function.
3. Gravity interface, plug, and play, easy to use
SPECIFICATION
Dissolved Oxygen Probe
Type: Galvanic Probe
Detection Range: 0~20mg/L
Response Time: Up to 98% full response, within 90 seconds (25℃)
Pressure Range: 0~50PSI
Electrode Service Life: 1 year (normal use)
Maintenance Period: Membrane Cap Replacement Period: 1~2 months (in muddy water); 4~5 months (in clean water) Filling Solution Replacement Period: Once every month
Cable Length: 2 meters
Probe Connector: BNC
Signal Converter Board
Operating Voltage: 3.3~5.5V
Output Signal: 0~3.0V
Cable Connector: BNC
Signal Connector: Gravity Analog Interface (PH2.0-3P)
Introduction: Since measuring the parameter of water quality is a complex task, so measuring the dissolved oxygen in water is also not an easy task. That is why the Dissolved Oxygen Meter (DO Meter) available in the market is very expensive. That is why it is important to make your own Dissolved Oxygen Meter. So the Gravity Analog Dissolved Oxygen Sensor from DFRobot is one of the most popular and best Dissolved Oxygen Sensors that are available in the market.
This project will interface Gravity Analog Dissolved Oxygen Sensor with Arduino Board and 0.96″ OLED Display. Firstly, preparing the DO Sensor by filling the 0.5N Sodium Hydroxide Solution, then preparing the sensor for testing. Once the sensor is prepared, go through the Arduino Dissolved Oxygen Sensor calibration code & calibrate the sensor. And then finally making your own Dissolved Oxygen Meter & display the dissolved Oxygen value in OLED Display.
