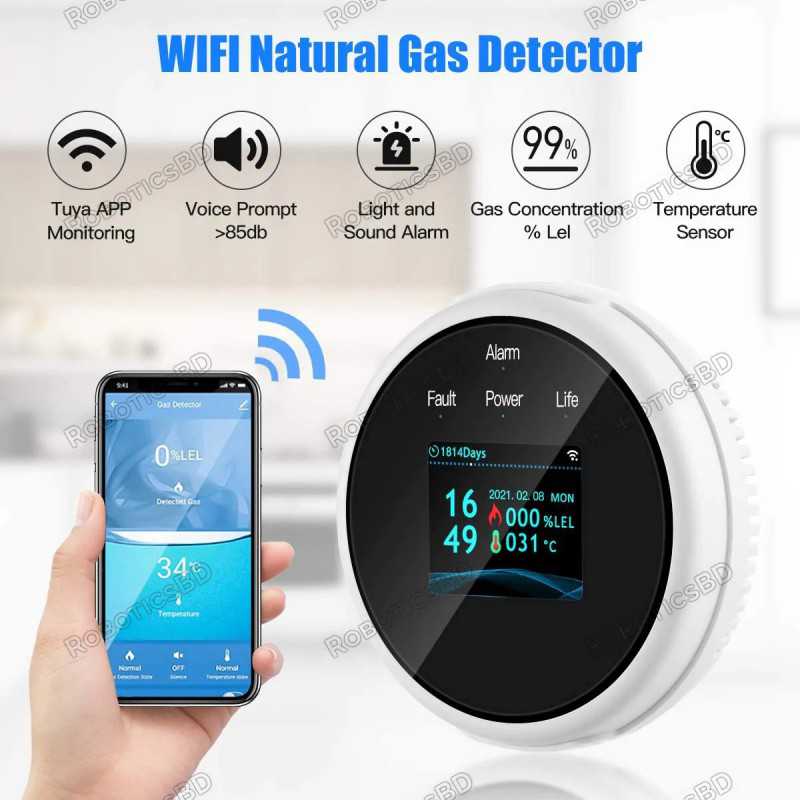

This product is a WiFi flammable gas alarm, which is used to detect the leakage of flammable gas and prevent the harm caused by gas leakage. The alarm uses high stability semiconductor gas sensor, which has the characteristics of high stability and small sensitivity drift. When a flammable gas leak is detected and the concentration value set by the alarm is reached, the alarm will send an alarm signal. This product is used indoor where leakage may occur, such as kitchens. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
Note: Product images may vary from actual product as our stock rotates.
Installation
Before installation, please confirm the detecting gas density heavier or lighter than air. If detecting gas is heavier than air: LPG. etc, install at 0.3-1m height from floor, semi-diameter to gas source less than 1.5m. If detecting gas is lighter than air: nature gas, manufactured gas, marsh gas, etc, install at 0.3-1m height from ceiling, semi-diameter to gas source less than 1.5m. Featured By RoboticsBD.
Product Testing
This product has a self-test button, and there is also a self-test button on the APP, which can be used to detect whether the alarm and the buzzer can work normally. When the self-test is pressed, the red LED of the alarm flashes. The buzzer beeps. Featured By RoboticsBD.
Alert Handling
When the concentration value of natural gas or liquefied petroleum gas with heavy ambient air reaches or exceeds the alarm concentration value, the alarm will automatically enter the continuous alarm state. At this moment, we should do the followings:
- Close the pipeline valve immediately.
- Extinguish all sources of ignition and avoid using everything that generates sparks.
- Avoid switching various electrical appliances.
- Immediately open the windows to convect the indoor air.
Features:
- Detectable Gas: The natural gas leak detector detects the main deadly gases: Natural gas (Methane, butane, ethane, LNG, etc) and Propane (LPG or liquefied petroleum gas).
- On-site Alarm and APP Remote Alarm: This gas alarm can be connected with mobile phone APP in a wireless environment. After connection, you can always receive the information of the alarm when you go out and once the alarm occurs.
- High Precision: The has an LCD screen that displays precise, real-time gas readings so that you know the exact gas concentration in the air of your home at all times.
- Installation Location: This propane alarm has an long 6 foot power cord which allows you to install it in the exact ideal location in your house to allow for proper gas detection. Screw fix or paste installation.
- Stylish Appearance: This newly released natural gas alarm is sleek and modern and has a beautiful blue LCD screen that will complement the style of your home or camper without detracting from your interior design.
Gallery:
Featured By RoboticsBD.
| General Specification |
| Power supply |
Micro USB+5V/1A |
| Power supply： |
<200mA |
| Detecting gas |
Natural gas(CH4), LPG |
| Working Environment |
Temperature:-10~55℃ |
| Sample |
Diffusion |
| Range |
0-100% LEL |
| Alarm setting value |
6% LEL |
| Tolerance |
±3% LEL |
| Response time |
≤ 30 seconds |
| Heat alarm value |
57℃ |
| Alarm volume |
≥70db |
| Valve/manipulator drive output |
12/300MA output for 15 seconds |
| Warm-up time |
180 seconds |
| Sensor life |
5 years |
| WIFI |
2.4GHZ IEEE802.11b/g/n |
| Dimensions |
86X86X24.5mm |
| Shipment Weight |
0.170 kg |
| Shipment Dimensions |
9.5 × 9.5 × 5 cm |
Please allow 5% measuring deviation due to manual measurement.
Documentation:
Package Includes:
1 x Gas detector
1 x USB cable
1 x Power plug
1 x User Manual
