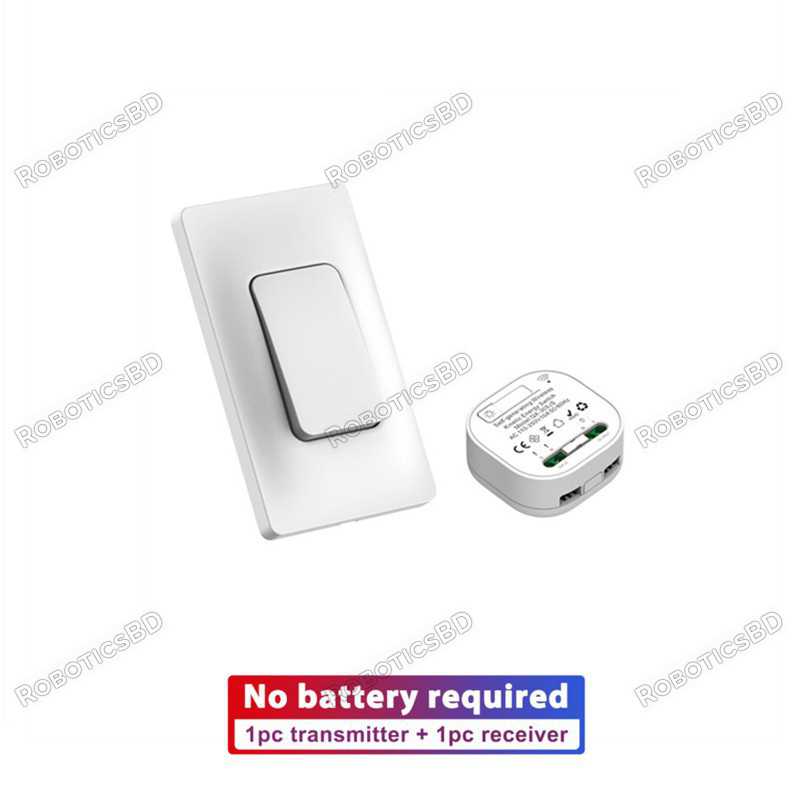

Wireless Switch 433Mhz SmartHome Kinetic Switch Receiver 100V~ 250V Module Self Powered No Battery Need Wireless ONOFF Co Long distance, wiring free, IP68 waterproof wirelessswitch。Our self generating wireless switch adopts the link mode of 433 protocol. The outdoor effective distance is 100 meters, and the indoor effective distance is between 30 and 50 meters. It is enough to be used in the family. We have done press test, and the press times are up to 100000 times. The installation is very convenient. If you want to control which lamp, the receiver is connected in which lamp, and the transmitter panel can control it. And the launch panel does not need a battery.
Product application range
Products can be used in homes, offices, and so on
Remote control LED light
Remote control Taking Care for the elderly, children
Wiring Diagram
Product features
1. The receiver has Fuse(F10AL250V): When your electrical appliances are short-circuited or the voltage is too high, this insurance will automatically break, and then cut off the power to protect your electrical appliances and life safety. You only need to replace another insurance, the receiver can continue to use.
2.No WiFi/Battery to Control: With the self-power generation feature of the Wall Panel Remote Transmitter Switch, you are able to remotely control the devices connected to the RF433 Relay Receivers without WiFi or battery, as long as match the switch to the receiver in advance. Also, the rocker push button enables a lot of convenience to your smart life.
3. Wireless Remote Control: Control your electrical applications with the wall panel transmitter within the range required.
4. Multi-Functional Switch: One Wall Panel Remote Transmitter Switch is able to control multiple RF433 Relay Receivers, and multiple Wall Panel Remote Transmitter Switches can also control one RF Relay Receivers at the same time. Stick the switch with the double-sided tape include.
With fuse, safer
NO Battery needs.Self-Powered Wall Switch
Wide Availability
Simple to Use can be mounted in any other place
Strong Signal
Receiver product parameters Working voltage: AC 100V~250V
Max current : 10A
Max load : 2000W
RF frequency: 433MHz
Working temperature: -30~+80
Receiving Sensitivity : >97dbm
Amount of storage remote controls: 5 pieces
Support encoding: 1527 Leaning code
RF Operating mode: ASK superheterodyne wireless reception
Receiving range: Open space is more than 100 meters
Type of Fuse: F10AL250V
Size:48*48*23mm
Weight:40g
Transmitter product parameters
Size:120*70mm
Weight:78g
Battery: No Battery Needs
Package products include
Receiver module ( include Shell )
Self-Powered Wall Switch (No Battery Needs )
double-sided tape
The quantity depends on the option you choose
HOW TO INSTALL
Product operation steps
How to set up?
Please connect with power first.
1. Press and hold the learning button for about 3-5 seconds, you will see the blue indicator light, release
2. Press the w
