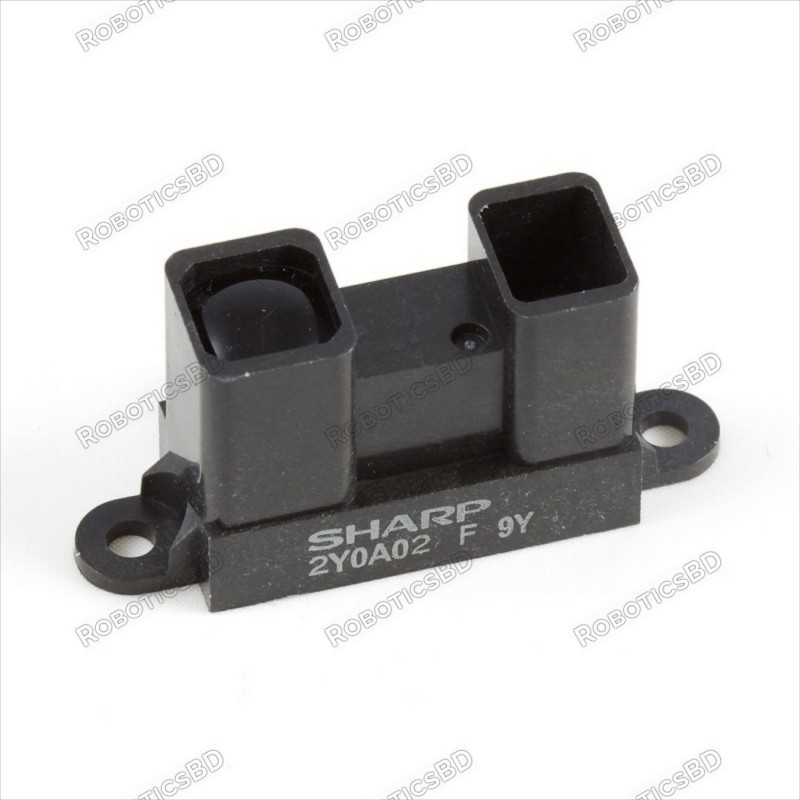

Sharp GP2Y0A02YK0F IR Infrared Range Sensor

RBD-1380

  • Sharp GP2Y0A02YK0F IR Range Sensor - 20 cm to 150 cm
  • Infrared range finder 20cm (~8") to 150cm (~60")
  • Distance measuring range: 20 cm to 150 cm (8″ to 60″)
  • Output type: Analog voltage
  • Output voltage differential over distance range: 2.05 V (typical)
  • Update period: 38 ± 10 ms
BDT 945.00
BDT 945.00 BDT 945.00 BDT 945.00 BDT 945.00
Tax included Tax excluded Tax included Tax excluded
BDT 945.00 Tax excluded
BDT 945.00 Tax included
BDT 0.00 Tax
BDT 945.00 Tax excluded
BDT 0.00 Tax
BDT 945.00 Tax included
Quantity
In-Stock
18 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

The Sharp distance sensors are a popular choice for many projects that require accurate distance measurements. This IR sensor is more economical than sonar rangefinders, yet it provides much better performance than other IR alternatives. RoboticsBD

Interfacing to most microcontrollers is straightforward: the single analog output can be connected to an analog-to-digital converter for taking distance measurements, or the output can be connected to a comparator for threshold detection. The detection range of this version is approximately 20 cm to 150 cm (8″ to 60″). RoboticsBD

The GP2Y0A02 uses a 3-pin JST PH connector that works with our 3-pin JST PH cables for Sharp distance sensors (not included) the top picture on the right shows a shorter-range Sharp analog Distance sensor with one of these cables.

These cables have 3-pin JST connectors on one end and are available with pre-crimped male pins, pre-crimped female pins, and with unterminated wires on the other end. RoboticsBD

Note: This sensor draws current in large, short bursts, and the manufacturer recommends putting a 10 µF capacitor or larger across power and ground close to the sensor to stabilize the power supply line RoboticsBD

Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

  1. Distance measuring range: 20 to 150 cm
  2. Analog output type
  3. Consumption current : Typ. 33 mA
  4. Supply voltage : 4.5 to 5.5 V
  5. Long-distance type (bigger size).
  6. Analog output.
  7. Good Alternative to Sonar Sensors.
  8. This item comes with a JST connector and wires

Applications:

  1. Touch-less switch (Sanitary equipment, Control of illumination, etc. )
  2. Sensor for energy saving (ATM, Copier, Vending machine, Laptop computer, LCD monitor)
  3. Amusement equipment (Robot, Arcade game machine)

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Model GP2Y0A02YK0F (20 to 150 cm)
Operating Voltage (VDC) 4.5 ~ 5.5
Distance measuring range (cm) 20 ~ 150
UPC 653112788306
Length (mm) 44.5
Width (mm) 13
Height (mm) 21.5
Weight (gm) 5
Shipment Weight 0.01 kg
Shipment Dimensions 5 × 5 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

  1. Github Repository Arduino-distance-sensor-library

Package Includes :

1 x Sharp Distance Measuring Sensor unit 20 to 150 cm.

1 x Connecting Cable.
