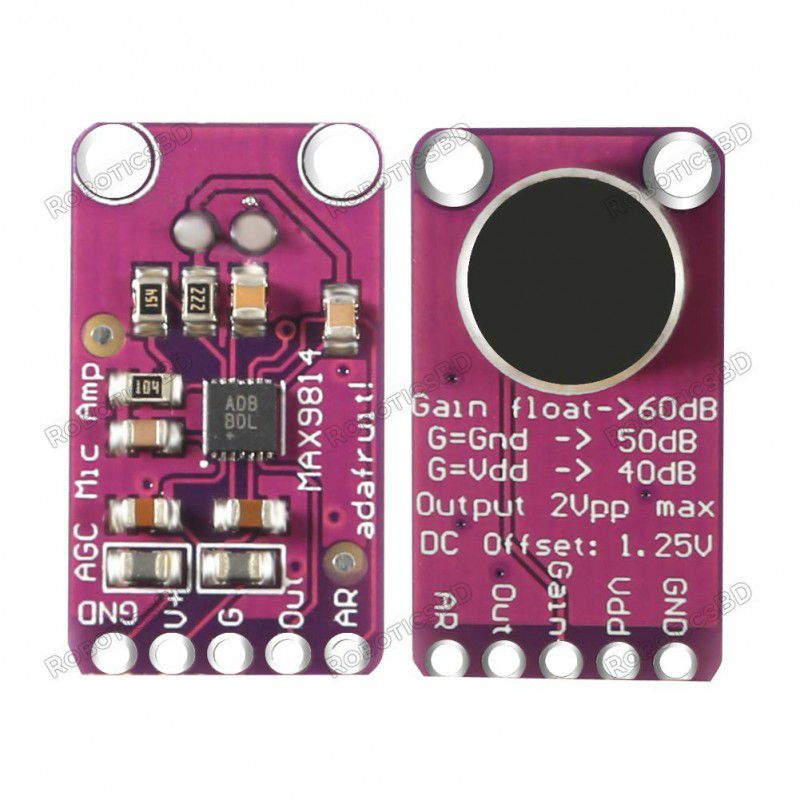

MAX9814 Microphone Amplifier Module

RBD-2758

With this module you can easily measure sound with an analog pin on your Arduino or other microcontroller. The module has an automatic gain/amplification (ACG) of the microphone: The module amplifies sounds with a low volume more, and sounds with a higher volume less.

BDT 380.00
BDT 380.00 BDT 380.00 BDT 380.00 BDT 380.00
Tax included Tax excluded Tax included Tax excluded
BDT 380.00 Tax excluded
BDT 380.00 Tax included
BDT 0.00 Tax
BDT 380.00 Tax excluded
BDT 0.00 Tax
BDT 380.00 Tax included
Quantity
30 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

With this module you can easily measure sound with an analog pin on your Arduino or other microcontroller. The module has an automatic gain/amplification (ACG) of the microphone: The module amplifies sounds with a low volume more, and sounds with a higher volume less.

Specifications:

  • Supply voltage: 2.4-5.5V DC
  • Output voltage: ~0-2.45V (1.25V average)
  • Frequency range: 20-20,000Hz
  • Adjustable maximum gain:
    • 60dB (Gain pin floating)
    • 50dB (Gain pin connected to GND)
    • 40db (Gain pin connected to Vdd)
  • Adjustable attack/release ratio:
    • 1: 4000 (AR pin floating)
    • 1: 2000 (AR pin connected to Vdd)
    • 1: 500 (AR pin connected to GND)
  • Two 2mm holes for mounting
  • PCB dimensions: 25.4 x 14.1mm

Pinout:

  • Vdd: Supply voltage
  • GND: Ground/min
  • Gain: Pin to set the maximum gain (see above)
  • Out: Output of the module
  • AR: Pin to set the attack/release ratio
